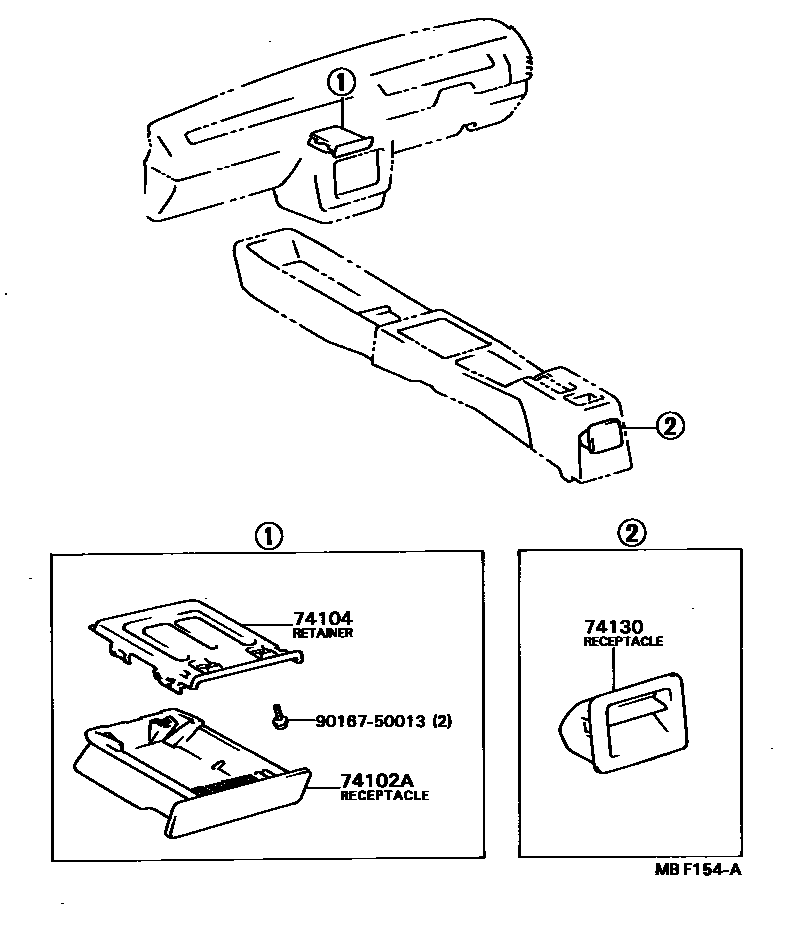

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-12170-02iAE8#,CE80..GEN,SAA; AE8#,CE80..LHD..EUR198305-198408

MAROON,RED/MAROON,TRIM3#; W/RADIO,MAROON,RED/MAROON,TRIM3#

main74102-12170-03iAE8#,CE80,EE80..LHD..EUR198305-198704

W/RADIO,GRAY,GRAY,TRIM1#

main74102-12170-04iAE8#,CE80,EE80..(4DS,5D)..LHD..EUR198305-198704

W/RADIO,BLUE,BLUE,TRIM8#

main74102-12170-06iAE8#,CE80,EE80..ARL,GEN,SAA198408-198807

BROWN,BROWN,TRIM4#

main74102-12190-02iAE8#,CE80..LHD..EUR; AE8#,CE80..RHD..(EUR,SA)198305-198408

MAROON,RED/MAROON,TRIM3#; W/O RADIO,MAROON,RED/MAROON,TRIM3#

main74102-12190-03iAE8#,CE80,EE80..LHD..EUR198305-198704

W/O RADIO,GRAY,GRAY,TRIM1#

main74102-12190-04iAE8#,CE80,EE80..(4DS,5D)..LHD..EUR198305-198704

W/O RADIO,BLUE,BLUE,TRIM8#

main74102-12190-06iAE8#,CE80,EE80..LHD..EUR198408-198704

W/O RADIO,BROWN,BROWN,TRIM4#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12150iAE8#,CE80,EE80198305-198807

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main74130-12040-22iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main74130-12040-23iAE8#,CE80,EE80198305-198807

GRAY,GRAY,TRIM1#

main74130-12040-36iAE8#,CE80,EE80198408-198807

BROWN,BROWN,TRIM4#

9016750013

main90167-50013

4 parts on this diagram · 1 diagram in section
