Toyota COROLLA SED/LB151 — SEAT BELT & CHILD RESTRAINT SEAT

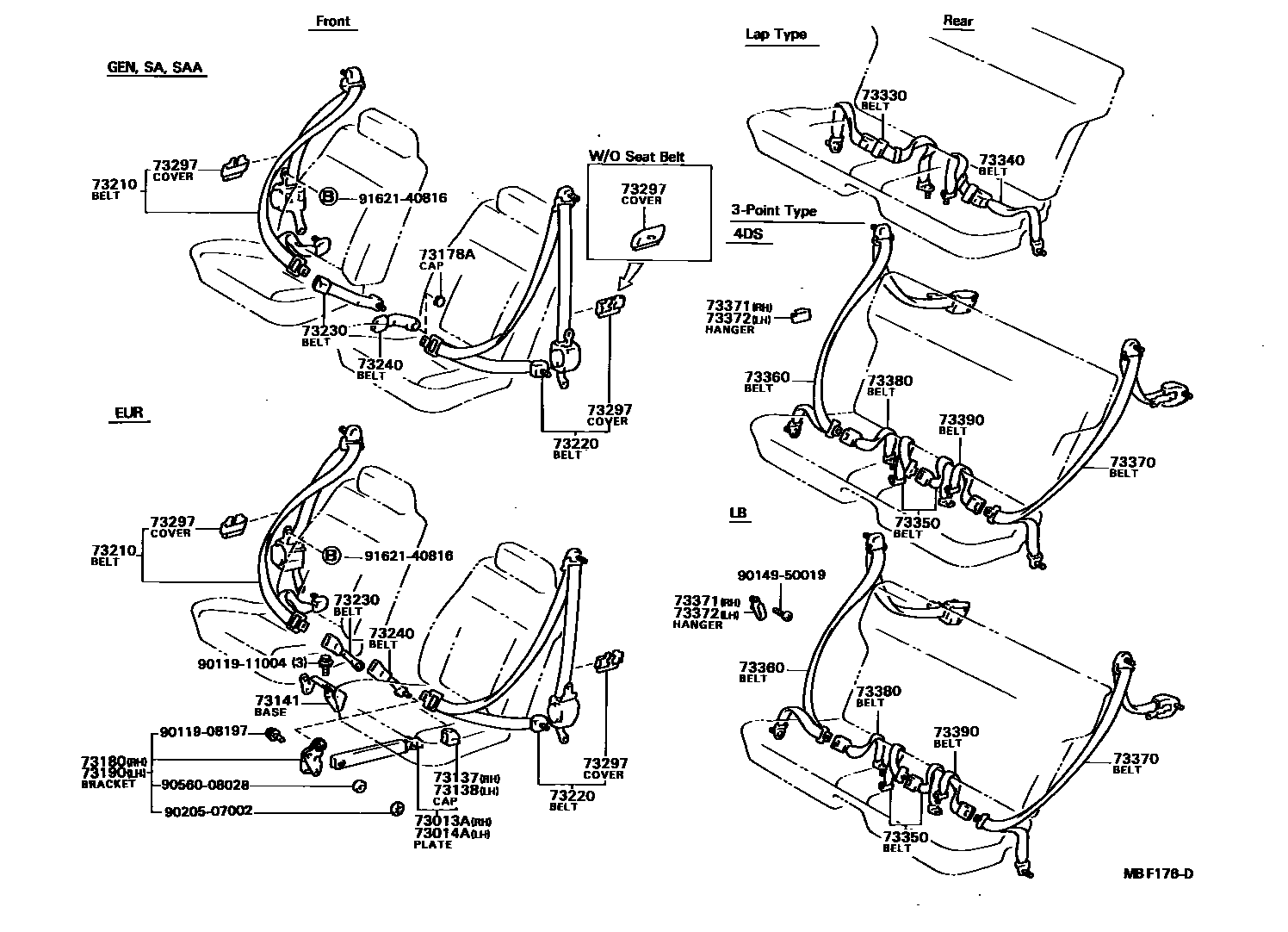

Parts diagram

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

73141BASE, FRONT SEAT BELT ANCHOR

73178ACAP, SEAT BELT ANCHOR COVER

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

73210BELT ASSY, FRONT SEAT OUTER, RH

73220BELT ASSY, FRONT SEAT OUTER, LH

73230BELT ASSY, FRONT SEAT INNER, RH

73240BELT ASSY, FRONT SEAT INNER, LH

73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE

73330BELT ASSY, REAR SEAT LAP TYPE, RH

73340BELT ASSY, REAR SEAT LAP TYPE, LH

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

73371HANGER, REAR SEAT SHOULDER BELT, RH

73372HANGER, REAR SEAT SHOULDER BELT, LH

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

9011908197

9011911004

9014950019

9020507002

9056008028

9162140816

27 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota COROLLA SED/LB151

This section contains 30 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota COROLLA SED/LB151. Key components include: PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH, PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH, CAP, FRONT SEAT BELT INNER ANCHOR, RH, CAP, FRONT SEAT BELT INNER ANCHOR, LH, BASE, FRONT SEAT BELT ANCHOR.
