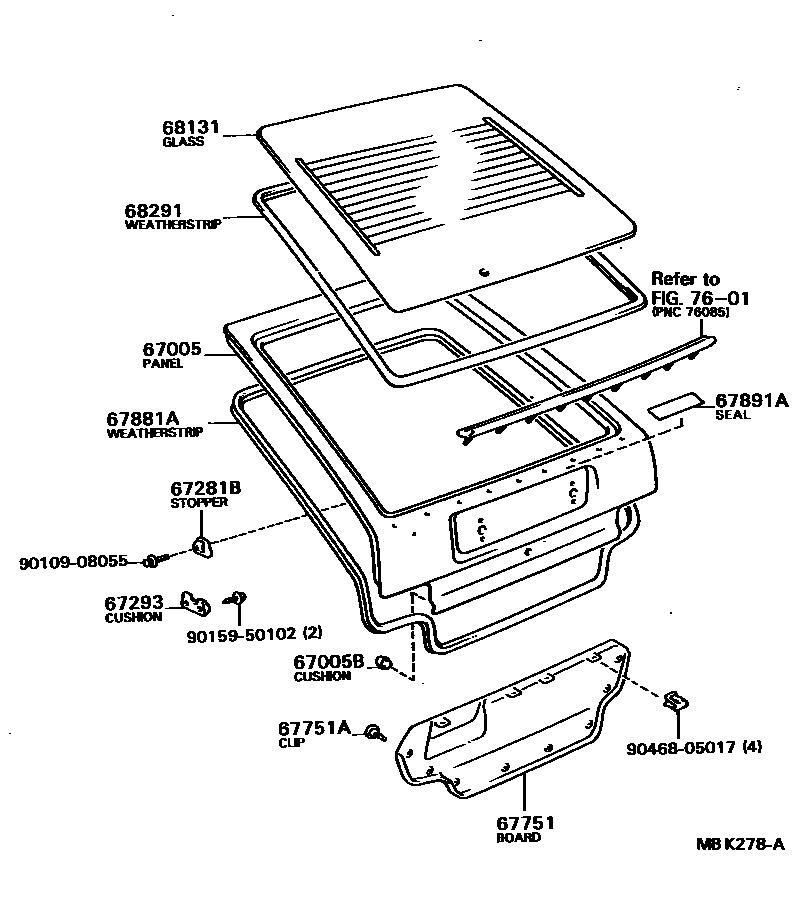

BACK DOOR PANEL & GLASS

0001 1 0002 1

67005PANEL SUB-ASSY, BACK DOOR

main67005-12450iAE82..5D..ARL198411-198508

main67005-12460iAE82..5D..EUR198305-198505

W/O RR WIPER

main67005-12470iAE82..5D..EUR198305-198505

W/RR WIPER

main67005-12480iAE80,CE80,EE80..5D..EUG198305-198505

W/O RR WIPER

main67005-12481iAE82,CE80,EE80..5D..EUR198505-198704

W/O RR WIPER

main67005-12490iAE80,CE80,EE80..5D..EUG198305-198505

W/RR WIPER

main67005-12491iAE82,CE80,EE80..5D..EUR198505-198704

W/RR WIPER

main67005-12500iAE80,EE80..5D..(GEN,SAA)198305-198505

W/O RR WIPER

main67005-12501iAE82,EE80..5D..(GL,XL)..(GEN,SAA)198505-198707

W/O RR WIPER

main67005-12510iAE82..5D..SA198402-198505

main67005-12511iAE82,EE80..5D..(GL,XL)..(GEN,SAA)198505-198707

W/RR WIPER

main67005-12512iAE82..5D..SA198505-198807

main67005-12520iAE82..5D..GEN198305-198505

W/O RR WIPER

main67005-12530iAE82..5D..GEN198305-198505

W/RR WIPER

main67005-12561iAE82,EE80..5D..(GL,XL)..GEN198505-198704

*GIS,W/O RR WIPER

main67005-12740iAE82..3DS..GT198410-198601

main67005-12741iEE80..(3DS,5DS)..(FRG,SDZ); EE80..(3DS,5DS)..LHD..5F..DX..EUG198606-198704

W/RR SPOILER

main67005-12750iAE82..3DS..GEN198410-198601

CKD

main67005-12751iAE82..3DS..GEN198601-198704

CKD

main67005-12800iCE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG198410-198601

W/O RR WIPER,BELGIUM SPEC

main67005-12801iCE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG198601-198704

W/O RR WIPER,BELGIUM SPEC

main67005-12810iCE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG198410-198601

W/RR WIPER,BELGIUM SPEC

main67005-12811iCE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG198601-198704

W/RR WIPER,BELGIUM SPEC

main67005-12820iAE82..LHD..GT..EUG198410-198601

BELGIUM SPEC

main67005-12821iAE82..LHD..GT..EUG198601-198704

BELGIUM SPEC

main67005-12830iAE82..(3DS,5DS)..SDZ198410-198601

W/O RR WIPER

main67005-12831iAE82..(3DS,5DS)..(FRG,SDZ)198601-198704

W/O RR WIPER

main67005-12840iAE82..(3DS,5DS)..SDZ198410-198601

W/RR WIPER

main67005-12841iAE82..(3DS,5DS)..(FRG,SDZ)198601-198704

W/RR WIPER

main67005-12860iCE80,EE80..(3DS,5DS)..(EUR,GEN)198410-198601

W/O RR WIPER

main67005-12861iCE80,EE80..(3DS,5DS)..(EUR,GEN)198601-198704

W/O RR WIPER

main67005-12870iAE80,EE80..(3DS,5DS)..(DX,GL,XL)..GEN198410-198505

W/O RR WIPER,CKD

main67005-12871iEE80..5DS..GL..GEN198601-198704

W/O RR WIPER,CKD

main67005-12880iAE80,EE80..(3DS,5DS)..(DX,GL,XL)..GEN198410-198505

W/RR WIPER,CKD

main67005-12881iEE80..5DS..GL..GEN198601-198704

W/RR WIPER,CKD

main67005-1A020iCE80,EE80..(3DS,5DS)..(EUR,GEN)198410-198601

W/RR WIPER

main67005-1A021iCE80,EE80..(3DS,5DS)..(EUR,GEN)198601-198704

W/RR WIPER

main67005-1A030iEE80..(3DS,5DS)..XL198505-198601

W/RR WIPER,CKD

main67005-1A031iEE80..(3DS,5DS)..XL198601-198704

W/RR WIPER,CKD

main67005-1A090iCE80,EE80..3DS..STD..EUG198410-198601

W/O RR WIPER,BELGIUM SPEC

main67005-1A091iCE80,EE80..3DS..STD..EUG198601-198704

W/O RR WIPER,BELGIUM SPEC

main67005-1A120iAE82,EE80..5D..GEN198505-198704

*GIS,W/RR WIPER

main67005-1A171iAE82..5D..ARL198508-198605

main67005-1A180iCE80,EE80..3DS..STD..EUG198410-198601

W/RR WIPER,BELGIUM SPEC

main67005-1A181iCE80,EE80..3DS..STD..EUG198601-198704

W/RR WIPER,BELGIUM SPEC

main67005-1A210iAE82..5D..ARL198605-198807

main67005-1A240iEE80..(3DS,5DS)..LHD..5F..DX..EUG198512-198601

SR PACKAGE

main67005-1A241iEE80..(3DS,5DS)..LHD..5F..DX..(EUG,FRG)198601-198606

SR PACKAGE

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09037×2iAE8#,CE80,EE80..3DS,5DS198410-198807

OD=22

main90541-09041×4iAE8#,CE80,EE80..5D198305-198807

67281BSTOPPER, BACK DOOR, LOWER

main67281-12020×2iAE8#,CE80,EE80..5D198305-198807

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20010×2iAE8#,CE80,EE80..5D198305-198807

67751BOARD, BACK DOOR TRIM

main67751-12030-02iAE8#,CE80..5D..(EUR,GEN,SAA)198305-198408

W/O RR WIPER,MAROON,RED/MAROON,TRIM3#

main67751-12030-03iAE8#,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN,SAA)198305-198707

W/O RR WIPER,GRAY,GRAY,TRIM1#

main67751-12030-04iAE8#,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN,SAA)198305-198707

W/O RR WIPER,BLUE,BLUE,TRIM8#

main67751-12030-06iAE8#,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN,SAA)198408-198707

W/O RR WIPER,BROWN,BROWN,TRIM4#

main67751-12040-02iAE8#,CE80..5D198305-198408

W/RR WIPER,MAROON,RED/MAROON,TRIM3#

main67751-12040-03iAE8#,CE80,EE80..5D198305-198807

W/RR WIPER,GRAY,GRAY,TRIM1#

main67751-12040-04iAE8#,CE80,EE80..5D..(DX,GL,XL)198305-198807

W/RR WIPER,BLUE,BLUE,TRIM8#

main67751-12040-06iAE8#,CE80,EE80..5D198408-198807

W/RR WIPER,BROWN,BROWN,TRIM4#

main67751-12050-03iAE8#,CE80,EE80..3DS,5DS198410-198601

GRAY,SHADOW GRAY,TRIM1#

main67751-12050-06iAE8#,CE80,EE80..3DS,5DS198410-198601

BROWN,BROWN,TRIM4#

main67751-12051-03iAE8#,CE80,EE80..3DS,5DS198601-198807

GRAY,GRAY,TRIM1#

main67751-12051-06iAE8#,CE80,EE80..3DS,5DS198601-198807

BROWN,BROWN,TRIM4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07041-02×8iAE8#,CE80..5D198305-198408

MAROON,RED/MAROON,TRIM3#

main90467-07041-03×8iAE8#,CE80,EE80..3DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

main90467-07041-04×8iAE8#,CE80,EE80..5D..(DX,GL,XL)198305-198807

BLUE,BLUE,TRIM8#

main90467-07041-06×8iAE8#,CE80,EE80..3DS,5D,5DS198408-198807

BROWN,SEPIA BROWN,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-12090iAE8#,CE80,EE80..5D198305-198506

main67881-12100iAE82,CE80,EE80..5D198506-198807

main67881-12110iAE8#,CE80,EE80..3DS,5DS198410-198807

67891ASEAL, BACK DOOR

main67891-12010×2iAE8#,CE80,EE80..5D198305-198505

68131GLASS, BACK DOOR

main68105-12090iAE82..5D..GT..SA198411-198605

W/RR WIPER,*EHTT,T=4.0

main68105-12100iAE8#,CE80,EE80..5D..LHD..EUR198305-198704

W/RR WIPER,*EHTT,T=4.0,HEAVY

main68105-12110iAE8#,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN,SAA)198305-198707

W/O RR WIPER,*EHTT,T=4.0

main68105-12120iAE8#,CE80,EE80..5D..LHD..EUR198305-198704

W/O RR WIPER,*EHTT,T=4.0,HEAVY

main68105-12130iAE8#,CE80,EE80..5D..DX..EUR198305-198704

W/RR WIPER,*EHT,T=4.0

main68105-12140iAE8#,CE80,EE80..5D..DX..EUR198305-198704

W/RR WIPER,*EHT,T=4.0,HEAVY

main68105-12150iAE8#,CE80,EE80..5D..DX..EUR; AE8#,EE80..5D..(DX,GL,XL)..GEN198305-198704

W/O RR WIPER,*EHT,T=4.0

main68105-12160iAE8#,CE80,EE80..5D..DX..EUR198305-198704

W/O RR WIPER,*EHT,T=4.0,HEAVY

main68105-12190iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)198410-198704

*EHTT,T=3.5

main68105-12200iAE82,CE80,EE80..(3DS,5DS)..LHD..EUR198410-198704

*EHTT,T=3.5,HEAVY

main68105-12210iEE80..(3DS,5DS)..(STD,XL)..GEN198410-198704

*EHT,T=3.5

main68105-12220iAE82,CE80,EE80..(3DS,5DS)..(DX,STD)..EUR198410-198704

*EHT,T=3.5,HEAVY

main68131-12210iAE8#,EE80..5D..(GEN,SAA)198305-198707

W/RR WIPER,*TT,T=4.0

main68131-12240iAE8#,EE80..5D..(DX,GL,XL)..(GEN,SAA)198305-198707

W/O RR WIPER,*TT,T=4.0

main68131-12270iAE8#,EE80..5D..GEN198305-198704

W/RR WIPER,*TEM,T=4.0

main68131-12300iAE8#,EE80..5D..(DX,GL,XL)..GEN198305-198704

W/O RR WIPER

main68131-12350iAE8#,EE80..(3DS,5DS)..GEN; EE80..3DS..STD..EUG198410-198704

*TT,T=3.5

main68131-12380iEE80..(3DS,5DS)..(STD,XL)..GEN; EE80..3DS..STD..EUG198410-198704

*TEM,T=3.5

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-12100iAE8#,CE80,EE80..5D198305-198807

main68291-12110iAE8#,CE80,EE80..3DS,5DS198410-198807

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9010908055

main90109-08055

9015950102

main90159-50102

9046805017

main90468-05017

14 parts on this diagram · 2 diagrams in section
