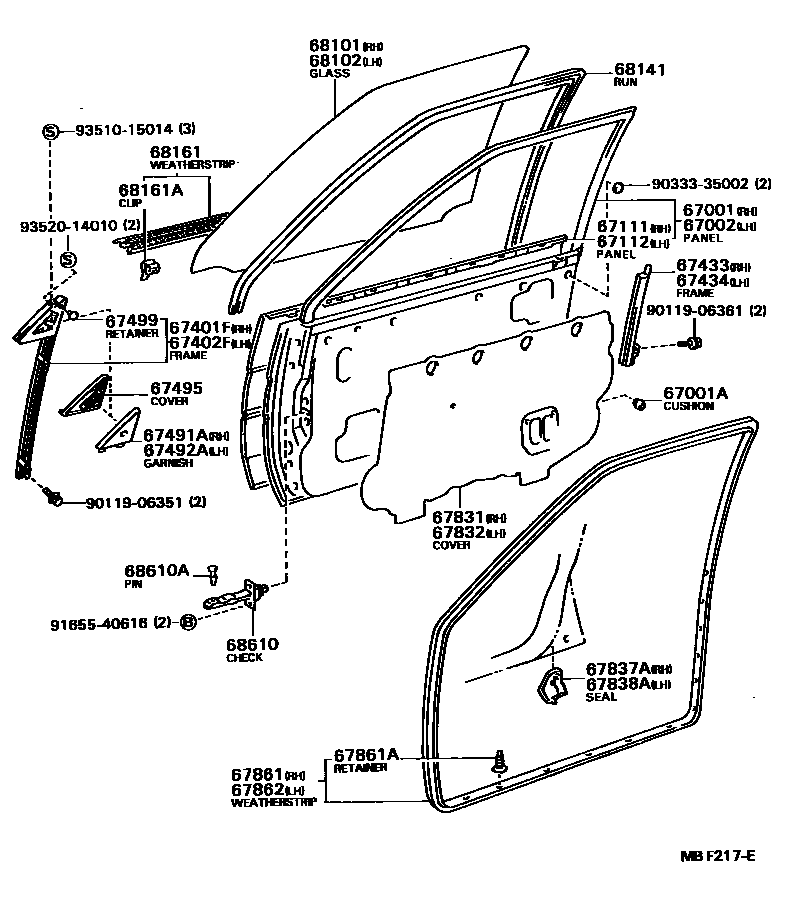

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0004 1 0006 1 0007 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12780iAE80,EE80..4DS..SAA198308-198707

main67001-12800iAE8#,CE80,EE80..(4DS,5DS)..(EUR,GEN)198305-198704

main67001-12830iAE80,EE80..5D..SAA198308-198707

main67001-12850iAE8#,CE80,EE80..5D..(EUR,GEN)198305-198704

main67001-1A080iAE82,CE80,EE80..3DS198410-198606

main67001-1A081iAE82,CE80,EE80..3DS198606-198704

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×2iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12760iAE80,EE80..4DS..SAA198308-198707

main67002-12780iAE8#,CE80,EE80..(4DS,5DS)..(EUR,GEN)198305-198704

main67002-12810iAE80,EE80..5D..SAA198308-198707

main67002-12830iAE8#,CE80,EE80..5D..(EUR,GEN)198305-198704

main67002-1A060iAE82,CE80,EE80..3DS198410-198606

main67002-1A061iAE82,CE80,EE80..3DS198606-198704

67111PANEL, FRONT DOOR, OUTER RH

main67111-12390iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SAA)198305-198707

main67111-12430iAE82,CE80,EE80..3DS198410-198606

main67111-12431iAE82,CE80,EE80..3DS198606-198704

67112PANEL, FRONT DOOR, OUTER LH

main67112-12380iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SAA)198305-198707

main67112-12420iAE82,CE80,EE80..3DS198410-198606

main67112-12421iAE82,CE80,EE80..3DS198606-198704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12200iAE82,CE80,EE80..(4DS,5DS)..EUR198508-198704

W/MIRROR

main67401-12210iAE8#,CE80,EE80..5D..EUR198307-198508

main67401-12220iAE82,CE80,EE80..(4DS,5DS)..LHD..EUR198508-198704

W/O MIRROR

main67401-12230iAE8#,EE80..5D..(ARL,GEN,SA,SAA)198307-198807

main67401-12240iAE82,CE80,EE80..3DS..EUR198508-198606

W/MIRROR

main67401-12241iAE82,CE80,EE80..3DS..EUR198606-198704

W/MIRROR

main67401-12250iAE82,EE80..3DS..GEN198410-198606

main67401-12251iAE82,CE80,EE80..3DS..LHD..EUR; AE82,EE80..3DS..GEN198606-198704

W/O MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12190iAE82,CE80,EE80..(4DS,5DS)..EUR198508-198704

W/MIRROR

main67402-12200iAE8#,CE80,EE80..5D..EUR198307-198508

main67402-12240iAE8#,CE80,EE80..(4DS,5DS)..(ARL,GEN,SA,SAA)198307-198807

main67402-12250iEE80..5D..RHD..EUG198508-198704

W/O MIRROR

main67402-12260iAE82,CE80,EE80..3DS..EUR198508-198606

W/MIRROR

main67402-12261iAE82,CE80,EE80..3DS..EUR198606-198704

W/MIRROR

main67402-12270iAE82,EE80..3DS..RHD..EUG198508-198606

W/O MIRROR

main67402-12271iAE82,EE80..3DS..GEN; AE82,EE80..3DS..RHD..EUG198606-198704

W/O MIRROR

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-12050iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

main67403-12060iAE82,CE80,EE80..3DS198410-198704

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-12050iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

main67404-12060iAE82,CE80,EE80..3DS198410-198704

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12090iAE8#,CE80,EE80..(4DS,5DS)..(DX,STD)..EUR; AE8#,CE80,EE80..(4DS,5DS)..(GEN,SAA); AE8#,CE80,EE80..(4DS,5DS)..LHD..GL..EUR198305-198707

W/O REMOTE MIRROR

main67491-12100iAE8#,CE80,EE80..(4DS,5DS)..(CS,CSX,DX,GL,GT,S,SE)..(ARL,EUR,SA)198605-198807

W/REMOTE MIRROR

main67491-12110iAE8#,CE80,EE80..5D..LHD..GL..EUR; AE8#,EE80..5D..GEN198305-198704

W/O REMOTE MIRROR

main67491-12120iAE80,EE80..GL..SAA198308-198505

main67491-12130iAE82,CE80,EE80..3DS..(DX,GL,GT)..EUR; AE82,EE80..3DS..GEN198410-198606

W/REMOTE MIRROR

main67491-12131iAE82,CE80,EE80..3DS..(DX,GL,GT)..EUR; AE82,EE80..3DS..GEN198606-198704

W/REMOTE MIRROR

main67491-12140iAE82,CE80,EE80..3DS..(DX,STD)..EUR; AE82,EE80..3DS..GEN; AE82,EE80..3DS..LHD..(GL,GT)..EUR198410-198606

W/O REMOTE MIRROR

main67491-12141iAE82,CE80,EE80..3DS..(DX,STD)..EUR; AE82,EE80..3DS..GEN; AE82,EE80..3DS..LHD..(GL,GT)..EUR198606-198704

W/O REMOTE MIRROR

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12090iAE8#,CE80,EE80..(4DS,5DS)..(CS,DX,S,STD)..(ARL,EUR,SA); AE8#,EE80..(4DS,5DS)..RHD..GL..(EUR,SA)198305-198807

W/O REMOTE MIRROR

main67492-12100iAE8#,CE80,EE80..(4DS,5DS)..GEN198305-198704

W/REMOTE MIRROR

main67492-12110iAE8#,CE80,EE80..5D..(DX,XL)..(EUR,SAA)198305-198707

W/O REMOTE MIRROR

main67492-12120iAE8#,CE80,EE80..5D..(ARL,EUR,GEN,SA)198305-198807

W/REMOTE MIRROR

main67492-12140iAE82,CE80,EE80..3DS..(DX,GL,GT)..EUR; AE82,EE80..3DS..GEN198410-198606

W/REMOTE MIRROR

main67492-12141iAE82,CE80,EE80..3DS..(DX,GL,GT)..EUR; AE82,EE80..3DS..GEN198606-198704

W/REMOTE MIRROR

main67492-12150iAE82,CE80,EE80..3DS..(DX,STD)..EUR; AE82,EE80..3DS..GEN; AE82,EE80..3DS..RHD..(GL,GT)..EUG198410-198606

W/O REMOTE MIRROR

main67492-12151iAE82..GT..EUG198608-198704

W/ELECTRIC MIRROR

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-12050iAE80..GL..GEN; AE82,CE80..4DS..GEN198305-198408

RH,W/DOOR BELT MOULDING

main67495-12060iAE8#,EE80..(4DS,5DS)..(DX,STD,XL)..(GEN,SAA)198305-198505

RH,W/O DOOR BELT MOULDING

main67495-12070iAE8#,CE80,EE80..5D..LHD..EUR; AE82..5D..GEN198305-198704

RH,W/DOOR BELT MOULDING

main67495-12080iAE8#,CE80,EE80..5D..LHD..DX..EUR198305-198704

RH,W/O DOOR BELT MOULDING

main67495-12100iAE82,CE80,EE80..3DS..LHD..(DX,GL,GT)..EUR; AE82..3DS..GEN198410-198704

RH,W/DOOR BELT MOULDING

main67495-12110iAE82,CE80,EE80..3DS..LHD..(DX,STD)..EUR; EE80..3DS..GEN198410-198704

RH,W/O DOOR BELT MOULDING

main67496-12050iAE80..GL..GEN; AE82,CE80..4DS..GEN198305-198408

LH,W/DOOR BELT MOULDING

main67496-12060iAE80,CE80,EE80..(4DS,5DS)..RHD..DX..EUG198305-198704

LH,W/O DOOR BELT MOULDING

main67496-12070iAE80,EE80..5D..RHD..EUG198305-198704

LH,W/DOOR BELT MOULDING

main67496-12080iAE80,EE80..5D..(DX,XL)198305-198807

LH,W/O DOOR BELT MOULDING

main67496-12100iAE82,EE80..3DS..RHD..EUG; AE82..3DS..GEN198410-198704

LH,W/DOOR BELT MOULDING

main67496-12110iEE80..3DS..GEN; EE80..3DS..RHD..DX198410-198704

LH,W/O DOOR BELT MOULDING

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12270iAE8#,CE80198305-198408

main67831-12280iAE8#,CE80,EE80..4DS,5D,5DS198408-198601

main67831-12290iAE8#,EE80..ARL,SA198601-198807

main67831-12300iAE82,CE80,EE80..3DS198410-198704

main67831-12310iAE82,EE80..3DS..GEN198505-198704

DUST PROOF

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-12290iAE8#,EE80..ARL,SA198601-198807

main67831-12310iAE82,EE80..3DS..GEN198505-198704

DUST PROOF

main67832-12140iAE8#,CE80198305-198408

main67832-12150iAE8#,CE80,EE80..4DS,5D,5DS198408-198601

main67832-12160iAE82,CE80,EE80..3DS198410-198704

67837ASEAL, FRONT DOOR VENT, RH

main67837-12030iAE82,CE80,EE80..(4DS,5D,5DS)..GEN198505-198704

67838ASEAL, FRONT DOOR VENT, LH

main67838-12020iAE82,CE80,EE80..(4DS,5D,5DS)..GEN198505-198704

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12490iAE8#,CE80,EE80..4DS,5DS198305-198807

main67861-12530iAE8#,CE80,EE80..5D198305-198807

main67861-12580iAE82,CE80,EE80..3DS198410-198701

main67861-12581iAE82,CE80,EE80..3DS198701-198704

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×40iAE8#,CE80,EE80198305-198807

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12470iAE8#,CE80,EE80..4DS,5DS198305-198807

main67862-12510iAE8#,CE80,EE80..5D198305-198807

main67862-12560iAE82,CE80,EE80..3DS198410-198701

main67862-12561iAE82,CE80,EE80..3DS198701-198704

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-12500iAE82,EE80..4DS..(DX,STD)..SA; AE82,EE80..5DS..SA198601-198807

*TEM,T=3.5

main68111-12510iAE8#,CE80..4DS..(EUR,GEN)198305-198410

*TT,T=3.5

main68111-12560iAE82,CE80,EE80..5D..(DX,XL)..(EUR,GEN)198410-198704

*TEM,T=3.5

main68111-12570iAE82,CE80,EE80..5D..(EUR,GEN,SA,SAA)198601-198807

*TT,T=3.5

main68111-1A210iAE82,CE80,EE80..3DS..(DX,STD,XL)198410-198704

*TEM,T=3.5

main68111-1A220iAE82,CE80,EE80..3DS198410-198704

*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-12500iAE82,EE80..4DS..(DX,STD)..SA; AE82,EE80..5DS..SA198601-198807

*TEM,T=3.5

main68112-12510iAE82..4DS..(GL,GT,SE)..SA198601-198807

*TT,T=3.5

main68112-12560iAE82,CE80,EE80..5D..(DX,XL)..(EUR,GEN)198410-198704

*TEM,T=3.5

main68112-12570iAE82,CE80,EE80..5D..(EUR,GEN,SA,SAA)198601-198807

*TT,T=3.5

main68112-1A210iAE82,CE80,EE80..3DS..(DX,STD,XL)198410-198704

*TEM,T=3.5

main68112-1A220iAE82,CE80,EE80..3DS198410-198704

*TT,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-12190×2iAE8#,CE80,EE80..4DS,5DS198305-198807

main68141-12210×2iAE8#,CE80,EE80..5D198305-198807

main68141-12240×2iAE82,CE80,EE80..3DS198410-198704

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-12140iAE82,CE80,EE80..(4DS,5D,5DS)..(DX,STD,XL)..(EUR,GEN,SAA)198505-198807

RH

main68160-12150×2iAE82,CE80,EE80..3DS..(DX,STD,XL)198410-198508

main68160-12151×2iAE82,CE80,EE80..3DS..(DX,STD,XL)198508-198704

main68210-12100iAE8#,EE80..(S,STD)..(ARL,SA)198402-198807

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080×12iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,STD,XL)..(EUR,SAA); AE8#,EE80..(4DS,5D,5DS)..(DX,STD,XL)..GEN198305-198505

main68211-12121×14iAE82,CE80,EE80..3DS..(DX,STD,XL)198410-198508

main68211-12122×14iAE82,CE80,EE80..3DS..(DX,STD,XL)198508-198704

68610CHECK ASSY, FRONT DOOR

main68610-12030×2iAE8#,CE80,EE80198305-198807

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iAE8#,CE80,EE80198311-198507

main68617-22010×2iAE8#,CE80198305-198311

main68617-90A00×2iAE8#,CE80,EE80198507-198807

9011906351

main90119-06351

9011906361

main90119-06361

9033335002

main90333-35002

9165540616

main91655-40616

9351015014

main93510-15014

9352014010

main93520-14010

33 parts on this diagram · 5 diagrams in section
