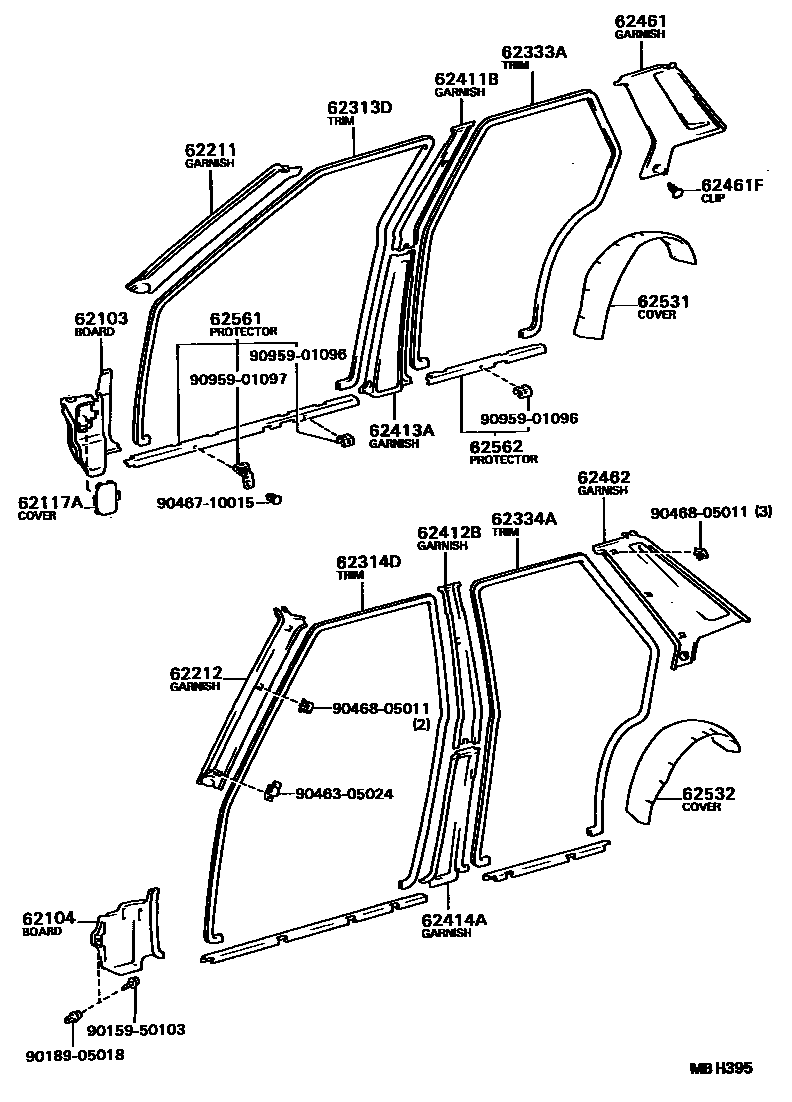

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-12120-02iAE8#,CE80..RHD198305-198408

MAROON,RED/MAROON,TRIM3#

main62101-12120-03iAE8#,CE80,EE80..RHD198305-198807

GRAY,GRAY,TRIM1#

main62101-12120-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62101-12120-06iAE8#,CE80,EE80..RHD198408-198807

BROWN,BROWN,TRIM4#

main62101-12130-02iAE8#,CE80..LHD198305-198408

MAROON,RED/MAROON,TRIM3#

main62101-12130-03iAE8#,CE80,EE80..LHD198305-198707

GRAY,GRAY,TRIM1#

main62101-12130-04iAE8#,CE80,EE80..(4DS,5D)..LHD198305-198707

BLUE,BLUE,TRIM8#

main62101-12130-06iAE8#,CE80,EE80..LHD198408-198707

BROWN,BROWN,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-12120-02iAE8#,CE80..RHD198305-198408

MAROON,RED/MAROON,TRIM3#

main62102-12120-03iAE8#,CE80,EE80..RHD198305-198807

GRAY,GRAY,TRIM1#

main62102-12120-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62102-12120-06iAE8#,CE80,EE80..RHD198408-198807

BROWN,BROWN,TRIM4#

main62102-12130-02iAE8#,CE80..LHD198305-198408

MAROON,RED/MAROON,TRIM3#

main62102-12130-03iAE8#,CE80,EE80..LHD198305-198707

GRAY,GRAY,TRIM1#

main62102-12130-04iAE8#,CE80,EE80..(4DS,5D)..LHD198305-198707

BLUE,BLUE,TRIM8#

main62102-12130-06iAE8#,CE80,EE80..LHD198408-198707

BROWN,BROWN,TRIM4#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12020-02iAE8#,CE80..RHD198305-198408

MAROON,RED/MAROON,TRIM3#

main62117-12020-03iAE8#,CE80,EE80..RHD198305-198807

GRAY,GRAY,TRIM1#

main62117-12020-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62117-12020-06iAE8#,CE80,EE80..RHD198408-198807

BROWN,BROWN,TRIM4#

main62117-12030-02iAE8#,CE80..LHD198305-198408

MAROON,RED/MAROON,TRIM3#

main62117-12030-03iAE8#,CE80,EE80..LHD198305-198707

GRAY,GRAY,TRIM1#

main62117-12030-04iAE8#,CE80,EE80..(4DS,5D)..LHD198305-198707

BLUE,BLUE,TRIM8#

main62117-12030-06iAE8#,CE80,EE80..LHD198408-198707

BROWN,BROWN,TRIM4#

main62117-12040-02iAE8#,CE80..LHD..(DX,GL)..EUG198305-198408

*FRG SPEC,MAROON,RED/MAROON,TRIM3#

main62117-12040-03iAE8#,CE80,EE80..LHD..(DX,GL,GT)..(EUG,FRG)198305-198704

*FRG SPEC,GRAY,GRAY,TRIM1#

main62117-12040-04iAE8#,CE80,EE80..(4DS,5D)..LHD..(DX,GL)..(EUG,FRG)198305-198704

*FRG SPEC,BLUE,BLUE,TRIM8#

main62117-12040-06iAE8#,CE80,EE80..LHD..(DX,GL,GT)..(EUG,FRG)198408-198704

*FRG SPEC,BROWN,BROWN,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-12160-02iAE8#,CE80..4DS..(EUR,GEN,SAA)198305-198408

W/MOULDED HEADLINING,MAROON,RED/MAROON,TRIM3#

main62211-12160-03iAE82,CE80,EE80..SED..(EUR,GEN,SA,SAA)198305-198807

W/MOULDED HEADLINING,GRAY,GRAY,TRIM1#

main62211-12160-04iAE8#,CE80..4DS..(EUR,GEN,SAA)198305-198807

W/MOULDED HEADLINING,BLUE,BLUE,TRIM8#

main62211-12160-06iAE8#,CE80..4DS..(EUR,GEN,SAA)198408-198807

W/MOULDED HEADLINING,BROWN,BROWN,TRIM4#

main62211-12170-02iAE8#,CE80..5D198305-198408

MAROON,RED/MAROON,TRIM3#

main62211-12170-03iAE8#,CE80,EE80..5D198305-198807

GRAY,GRAY,TRIM1#

main62211-12170-04iAE8#,CE80,EE80..5D..(DX,GL,XL)198305-198807

BLUE,BLUE,TRIM8#

main62211-12170-06iAE8#,CE80,EE80..5D198408-198807

BROWN,BROWN,TRIM4#

main62211-12180-02iAE8#,CE80..4DS..(GEN,SA)198305-198408

W/SUSPENDED HEADLINING,MAROON,RED/MAROON,TRIM3#

main62211-12180-03iAE8#,CE80,EE80..(4DS,5DS)..(ARL,GEN,SA)198305-198807

W/SUSPENDED HEADLINING,GRAY,GRAY,TRIM1#

main62211-12180-04iAE82,CE80,EE80..4DS..GEN198305-198704

W/SUSPENDED HEADLINING,BLUE,BLUE,TRIM8#

main62211-12180-06iAE8#,CE80,EE80..(4DS,5DS)..(ARL,GEN)198408-198807

W/SUSPENDED HEADLINING,BROWN,BROWN,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-12160-02iAE8#,CE80..4DS..(EUR,GEN,SAA)198305-198408

W/MOULDED HEADLINING,MAROON,RED/MAROON,TRIM3#

main62212-12160-03iAE82,CE80,EE80..SED..(EUR,GEN,SA,SAA)198305-198807

W/MOULDED HEADLINING,GRAY,GRAY,TRIM1#

main62212-12160-04iAE82,CE80,EE80..4DS..(EUR,GEN,SAA)198305-198807

W/MOULDED HEADLINING,BLUE,BLUE,TRIM8#

main62212-12160-06iAE8#,CE80..4DS..(EUR,GEN,SAA)198408-198807

W/MOULDED HEADLINING,BROWN,BROWN,TRIM4#

main62212-12170-02iAE8#,CE80..5D198305-198408

MAROON,RED/MAROON,TRIM3#

main62212-12170-03iAE8#,CE80,EE80..5D198305-198807

GRAY,GRAY,TRIM1#

main62212-12170-04iAE8#,CE80,EE80..5D..(DX,GL,XL)198305-198807

BLUE,BLUE,TRIM8#

main62212-12170-06iAE8#,CE80,EE80..5D198408-198807

BROWN,BROWN,TRIM4#

main62212-12180-02iAE8#,CE80..4DS..(GEN,SA)198305-198408

W/SUSPENDED HEADLINING,MAROON,RED/MAROON,TRIM3#

main62212-12180-03iAE8#,CE80,EE80..(4DS,5DS)..(ARL,GEN)198305-198807

W/SUSPENDED HEADLINING,GRAY,GRAY,TRIM1#

main62212-12180-04iAE82,CE80,EE80..4DS..GEN198305-198704

W/SUSPENDED HEADLINING,BLUE,BLUE,TRIM8#

main62212-12180-06iAE8#,CE80,EE80..(4DS,5DS)..(ARL,GEN)198408-198807

W/SUSPENDED HEADLINING,BROWN,BROWN,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-12110-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main62313-12110-03iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

main62313-12110-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62313-12110-06iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,BROWN,TRIM4#

main62313-12120-03iAE82,CE80,EE80..3DS198410-198505

GRAY,GRAY,TRIM1#

main62313-12120-06iAE82,CE80,EE80..3DS198410-198704

BROWN,BROWN,TRIM4#

main62313-12120-13iAE82,CE80,EE80..3DS198505-198704

GRAY,GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-12110-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main62313-12110-03iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

main62313-12110-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62313-12110-06iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,BROWN,TRIM4#

main62313-12120-03iAE82,CE80,EE80..3DS198410-198505

GRAY,GRAY,TRIM1#

main62313-12120-06iAE82,CE80,EE80..3DS198410-198704

BROWN,BROWN,TRIM4#

main62313-12120-13iAE82,CE80,EE80..3DS198505-198704

GRAY,GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-12040-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main62333-12040-03iAE8#,CE80,EE80..4DS,5D198305-198807

GRAY,GRAY,TRIM1#

main62333-12040-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62333-12040-06iAE8#,CE80,EE80..4DS,5D198408-198807

BROWN,BROWN,TRIM4#

main62333-12050-03iAE8#,CE80,EE80..5DS198410-198505

GRAY,GRAY,TRIM1#

main62333-12050-06iAE8#,CE80,EE80..5DS198410-198807

BROWN,BROWN,TRIM4#

main62333-12050-13iAE8#,CE80,EE80..5DS198505-198807

GRAY,GRAY,TRIM1#

62334ATRIM, REAR DOOR OPENING, LH

main62333-12040-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main62333-12040-03iAE8#,CE80,EE80..4DS,5D198305-198807

GRAY,GRAY,TRIM1#

main62333-12040-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main62333-12040-06iAE8#,CE80,EE80..4DS,5D198408-198807

BROWN,BROWN,TRIM4#

main62333-12050-03iAE8#,CE80,EE80..5DS198410-198505

GRAY,GRAY,TRIM1#

main62333-12050-06iAE8#,CE80,EE80..5DS198410-198807

BROWN,BROWN,TRIM4#

main62333-12050-13iAE8#,CE80,EE80..5DS198505-198807

GRAY,GRAY,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12280-02iAE8#,CE80198305-198310

W/FR SEAT BELT,T=1.0,MAROON,RED/MAROON,TRIM3#

main62411-12280-02iAE8#,CE80198310-198408

W/FR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main62411-12280-03iAE8#,CE80,EE80..4DS,5D,5DS198310-198807

W/FR SEAT BELT,GRAY,GRAY,TRIM1#

main62411-12280-03iAE8#,CE80198305-198310

W/FR SEAT BELT,T=1.0,GRAY,GRAY,TRIM1#

main62411-12280-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198310-198807

W/FR SEAT BELT,BLUE,BLUE,TRIM8#

main62411-12280-04iAE8#,CE80198305-198310

W/FR SEAT BELT,T=1.0,BLUE,BLUE,TRIM8#

main62411-12280-06iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

W/FR SEAT BELT,BROWN,BROWN,TRIM4#

main62411-12300-02iAE8#,CE80198305-198310

W/FR SEAT BELT,T=0.9,MAROON,RED/MAROON,TRIM3#

sub62411-12280

main62411-12300-03iAE8#,CE80198305-198310

W/FR SEAT BELT,T=0.9,GRAY,GRAY,TRIM1#

sub62411-12280

main62411-12300-04iAE8#,CE80198305-198310

W/FR SEAT BELT,T=0.9,BLUE,BLUE,TRIM8#

sub62411-12280

main62411-12340-02iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=1.0,MAROON,RED/MAROON,TRIM3#

main62411-12340-02iAE8#,CE80..GEN198310-198408

W/O FR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main62411-12340-03iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..GEN198310-198704

W/O FR SEAT BELT,GRAY,GRAY,TRIM1#

main62411-12340-03iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=1.0,GRAY,GRAY,TRIM1#

main62411-12340-04iAE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..GEN198310-198704

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

main62411-12340-04iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=1.0,BLUE,BLUE,TRIM8#

main62411-12340-06iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..GEN198408-198704

W/O FR SEAT BELT,BROWN,BROWN,TRIM4#

main62411-12350-02iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=0.9,MAROON,RED/MAROON,TRIM3#

sub62411-12340

main62411-12350-03iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=0.9,GRAY,GRAY,TRIM1#

sub62411-12340

main62411-12350-04iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=0.9,BLUE,BLUE,TRIM8#

sub62411-12340

main62411-12360-03iAE82,CE80,EE80..3DS198410-198704

W/FR SEAT BELT,GRAY,GRAY,TRIM1#

main62411-12360-06iAE82,CE80,EE80..3DS198410-198704

W/FR SEAT BELT,BROWN,BROWN,TRIM4#

main62411-12370-03iAE82,EE80..3DS..GEN198410-198704

W/O FR SEAT BELT,GRAY,GRAY,TRIM1#

main62411-12370-06iAE82,EE80..3DS..GEN198410-198704

W/O FR SEAT BELT,BROWN,BROWN,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12280-02iAE8#,CE80198310-198408

W/FR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main62412-12280-02iAE8#,CE80198305-198310

W/FR SEAT BELT,T=1.0,MAROON,RED/MAROON,TRIM3#

main62412-12280-03iAE8#,CE80,EE80..4DS,5D,5DS198310-198807

W/FR SEAT BELT,GRAY,GRAY,TRIM1#

main62412-12280-03iAE8#,CE80198305-198310

W/FR SEAT BELT,T=1.0,GRAY,GRAY,TRIM1#

main62412-12280-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198310-198807

W/FR SEAT BELT,BLUE,BLUE,TRIM8#

main62412-12280-04iAE8#,CE80198305-198310

W/FR SEAT BELT,T=1.0,BLUE,BLUE,TRIM8#

main62412-12280-06iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

W/FR SEAT BELT,BROWN,BROWN,TRIM4#

main62412-12300-02iAE8#,CE80198305-198310

W/FR SEAT BELT,T=0.9,MAROON,RED/MAROON,TRIM3#

sub62412-12280

main62412-12300-03iAE8#,CE80198305-198310

W/FR SEAT BELT,T=0.9,GRAY,GRAY,TRIM1#

sub62412-12280

main62412-12300-04iAE8#,CE80198305-198310

W/FR SEAT BELT,T=0.9,BLUE,BLUE,TRIM8#

sub62412-12280

main62412-12340-02iAE8#,CE80..GEN198310-198408

W/O FR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main62412-12340-02iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=1.0,MAROON,RED/MAROON,TRIM3#

main62412-12340-03iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..GEN198310-198704

W/O FR SEAT BELT,GRAY,GRAY,TRIM1#

main62412-12340-03iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=1.0,GRAY,GRAY,TRIM1#

main62412-12340-04iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..GEN198310-198704

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

main62412-12340-04iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=1.0,BLUE,BLUE,TRIM8#

main62412-12340-06iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..GEN198408-198704

W/O FR SEAT BELT,BROWN,BROWN,TRIM4#

main62412-12350-02iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=0.9,MAROON,RED/MAROON,TRIM3#

sub62412-12340

main62412-12350-03iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=0.9,GRAY,GRAY,TRIM1#

sub62412-12340

main62412-12350-04iAE8#,CE80..GEN198305-198310

W/O FR SEAT BELT,T=0.9,BLUE,BLUE,TRIM8#

sub62412-12340

main62412-12360-03iAE82,CE80,EE80..3DS198410-198704

W/FR SEAT BELT,GRAY,GRAY,TRIM1#

main62412-12360-06iAE82,CE80,EE80..3DS198410-198704

W/FR SEAT BELT,BROWN,BROWN,TRIM4#

main62412-12370-03iAE82,EE80..3DS..GEN198410-198704

W/O FR SEAT BELT,GRAY,GRAY,TRIM1#

main62412-12370-06iAE82,EE80..3DS..GEN198410-198704

W/O FR SEAT BELT,BROWN,BROWN,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12150-02iAE8#,CE80198310-198408

MAROON,RED/MAROON,TRIM3#

main62413-12150-02iAE8#,CE80198305-198310

T=1.0,MAROON,RED/MAROON,TRIM3#

main62413-12150-03iAE8#,CE80,EE80..4DS,5D,5DS198310-198807

GRAY,GRAY,TRIM1#

main62413-12150-03iAE8#,CE80198305-198310

T=1.0,GRAY,GRAY,TRIM1#

main62413-12150-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198310-198807

BLUE,BLUE,TRIM8#

main62413-12150-04iAE8#,CE80198305-198310

T=1.0,BLUE,BLUE,TRIM8#

main62413-12150-06iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,BROWN,TRIM4#

main62413-12160-02iAE8#,CE80198305-198310

T=1.2,MAROON,RED/MAROON,TRIM3#

sub62413-12150

main62413-12160-03iAE8#,CE80198305-198310

T=1.2,GRAY,GRAY,TRIM1#

sub62413-12150

main62413-12160-04iAE8#,CE80198305-198310

T=1.2,BLUE,BLUE,TRIM8#

sub62413-12150

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12150-02iAE8#,CE80198310-198408

MAROON,RED/MAROON,TRIM3#

main62414-12150-02iAE8#,CE80198305-198310

T=1.0,MAROON,RED/MAROON,TRIM3#

main62414-12150-03iAE8#,CE80,EE80..4DS,5D,5DS198310-198807

GRAY,GRAY,TRIM1#

main62414-12150-03iAE8#,CE80198305-198310

T=1.0,GRAY,GRAY,TRIM1#

main62414-12150-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198310-198807

BLUE,BLUE,TRIM8#

main62414-12150-04iAE8#,CE80198305-198310

T=1.0,BLUE,BLUE,TRIM8#

main62414-12150-06iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,BROWN,TRIM4#

main62414-12160-02iAE8#,CE80198305-198310

T=1.2,MAROON,RED/MAROON,TRIM3#

sub62414-12150

main62414-12160-03iAE8#,CE80198305-198310

T=1.2,GRAY,GRAY,TRIM1#

sub62414-12150

main62414-12160-04iAE8#,CE80198305-198310

T=1.2,BLUE,BLUE,TRIM8#

sub62414-12150

62461GARNISH, ROOF SIDE TRIM, RH

main62405-12040-02iAE82..4DS..GEN;AE82..4DS..EUG;AE80,CE80..4DS..(EUR,GEN,SAA)198305-198408

W/*MH,W/O 3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62405-12040-03iAE82..4DS..GEN;AE82..4DS..(EUG,FRG);CE80,EE80..4DS..(EUR,GEN,SAA)198305-198707

W/*MH,W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

main62405-12040-03iAE82,EE80..4DS..(DX,STD)..SA198605-198807

GRAY,GRAY,TRIM1#

main62405-12040-04iAE82..4DS..GEN;AE82..4DS..(EUG,FRG);CE80,EE80..4DS..(EUR,GEN,SAA)198305-198707

W/*MH,W/O 3-POINT BELT,BLUE,BLUE,TRIM8#

main62405-12040-04iAE82,EE80..4DS..(DX,STD)..SA198605-198807

BLUE,BLUE,TRIM8#

main62405-12040-06iAE82..4DS..GEN;AE82..4DS..(EUG,FRG);CE80,EE80..4DS..(EUR,GEN,SAA)198408-198707

W/*MH,W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

main62405-12040-06iAE82,EE80..4DS..(DX,STD)..SA198605-198807

BROWN,BROWN,TRIM4#

main62405-12050-02iAE82..4DS..RHD..GEN;AE80..4DS..RHD..5F..DX..GEN198309-198408

W/*MH,W/3-POINT BELT,MAR00N,RED/MAROON,TRIM3#

main62405-12050-02iAE8#,CE80..4DS..EUR198305-198408

W/*MH,W/3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62405-12050-03iAE82..4DS..RHD..GEN;AE8#,CE80..4DS..LHD..MTM..(GL,STD,XL)..GEN198305-198704

W/*MH,W/3-POINT BELT,GRAY,GRAY,TRIM1#

main62405-12050-03iAE82..4DS..(GL,GT,SE)..SA198605-198807

GRAY,GRAY,TRIM1#

main62405-12050-04iAE82..4DS..RHD..GEN;AE8#,CE80..4DS..LHD..MTM..(GL,STD,XL)..GEN198305-198704

W/*MH,W/3-POINT BELT,BLUE,BLUE,TRIM8#

main62405-12050-04iAE82..4DS..(GL,SE)..SA198605-198807

BLUE,BLUE,TRIM8#

main62405-12050-06iAE80..LHD..4F..GEN;AE82,CE80..4DS..LHD..5F..GEN198408-198704

W/*MH,W/3-POINT BELT,BROWN,BROWN,TRIM4#

main62405-12050-06iAE82..4DS..(GL,GT,SE)..SA198605-198807

BROWN,BROWN,TRIM4#

main62405-12070-02iAE8#,CE80..4DS..(GEN,SA)198305-198408

W/*SUH,W/O 3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62405-12070-03iAE82,CE80,EE80..4DS..GEN198305-198704

W/*SUH,W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

main62405-12070-04iAE82,CE80,EE80..4DS..GEN198305-198704

W/*SUH,W/O 3-POINT BELT,BLUE,BLUE,TRIM8#

main62405-12070-06iAE82,CE80,EE80..4DS..GEN198408-198704

W/*SUH,W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

main62405-12080-02iCE80..DX..GEN;AE80..RHD..5F..GL..GEN;AE80..4DS..RHD..(3FC,4F)..GEN198305-198408

W/*SUH,W/3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62405-12080-03iCE80..DX..GEN;AE80..RHD..5F..GL..GEN;AE80..4DS..RHD..(3FC,4F)..GEN198305-198704

W/*SUH,W/3-POINT BELT,GRAY,GRAY,TRIM1#

main62405-12080-03iAE8#..4DS..ARL198411-198807

GRAY,GRAY,TRIM1#

main62405-12080-04iAE8#,CE80..4DS..RHD..GEN198305-198704

W/*SUH,W/3-POINT BELT,BLUE,BLUE,TRIM8#

main62405-12080-06iAE82,CE80,EE80..4DS..LHD..GEN198408-198704

W/*SUH,W/3-POINT BELT,BROWN,BROWN,TRIM4#

main62405-12080-06iAE8#..4DS..ARL198411-198807

BROWN,BROWN,TRIM4#

main62471-12190-02iAE80,CE80..5D;AE82..5D..EUG;AE82..5D..(GEN,SA)198305-198408

W/O 3-POINT BELT,MAROON,RED/MAROON,TRIM3#

sub62471-12190

main62471-12190-03iAE8#,EE80..5D..(DX,GL,XL)..GEN198305-198507

W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

sub62471-12190

main62471-12190-03iAE82,CE80,EE80..5D198507-198807

GRAY,GRAY,TRIM1#

sub62471-12190

main62471-12190-04iAE82..5D..EUG;AE80,CE80,EE80..5D;AE82..5D..GL..(GEN,SA)198305-198507

W/O 3-POINT BELT,BLUE,BLUE,TRIM8#

sub62471-12190

main62471-12190-04iAE82,CE80,EE80..5D..(DX,GL,XL)198507-198807

BLUE,BLUE,TRIM8#

sub62471-12190

main62471-12190-06iAE8#,EE80..5D..(DX,GL,XL)..GEN198408-198507

W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

sub62471-12190

main62471-12190-06iAE82,CE80,EE80..5D198507-198807

BROWN,BROWN,TRIM4#

sub62471-12190

main62471-12200-02iAE8#,CE80..5D..EUR198305-198408

W/3-POINT BELT,MAROON,RED/MAROON,TRIM3#

sub62471-12190

main62471-12200-03iAE82,EE80..5D..RHD..GEN198305-198507

W/3-POINT BELT,GRAY,GRAY,TRIM1#

sub62471-12190

main62471-12200-04iAE8#..5D..RHD..GEN198305-198507

W/3-POINT BELT,BLUE,BLUE,TRIM8#

sub62471-12190

main62471-12200-06iAE8#..5D..RHD..GEN198408-198507

W/3-POINT BELT,BROWN,BROWN,TRIM4#

sub62471-12190

main62471-12290-03iAE82,CE80,EE80..3DS198507-198704

GRAY,GRAY,TRIM1#

main62471-12290-03iAE82..3DS..GT;EE80..3DS..RHD;EE80..3DS..LHD..5F..GEN;EE80..3DS..LHD..(3FC,4F);CE80,EE80..3DS..LHD..5F..EUG198410-198507

W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

main62471-12290-06iAE82..3DS..GT;EE80..3DS..RHD;EE80..3DS..LHD..5F..GEN;EE80..3DS..LHD..(3FC,4F);CE80,EE80..3DS..LHD..5F..EUG198410-198507

W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

main62471-12290-06iAE82,CE80,EE80..3DS198507-198704

BROWN,BROWN,TRIM4#

main62471-12300-03iAE82,CE80,EE80..3DS198410-198507

W/3-POINT BELT,GRAY,GRAY,TRIM1#

sub62471-12290

main62471-12300-06iAE82,CE80,EE80..3DS198410-198507

W/3-POINT BELT,BROWN,BROWN,TRIM4#

sub62471-12290

main62471-12310-03iEE80..5DS..GEN;CE80,EE80..5DS..EUG198410-198507

W/*MH,W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

sub62471-12310

main62471-12310-03iAE82,CE80,EE80..5DS..(EUR,GEN,SA)198507-198807

W/*MH,GRAY,GRAY,TRIM1#

sub62471-12310

main62471-12310-06iEE80..5DS..GEN;CE80,EE80..5DS..EUG198410-198507

W/*MH,W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

sub62471-12310

main62471-12310-06iAE82,CE80,EE80..5DS..(EUR,GEN)198507-198807

W/*MH,BROWN,BROWN,TRIM4#

sub62471-12310

main62471-12320-03iAE82,CE80,EE80..5DS..(EUR,GEN)198410-198507

W/*MH,W/3-POINT BELT,GRAY,GRAY,TRIM1#

sub62471-12310

main62471-12320-06iAE82,CE80,EE80..5DS..(EUR,GEN)198410-198507

W/*MH,W/3-POINT BELT,BROWN,BROWN,TRIM4#

sub62471-12310

main62471-12330-03iEE80..5DS..GEN198410-198704

W/*SUH,GRAY,GRAY,TRIM1#

sub62471-12330

main62471-12330-06iAE8#,EE80..5DS..(GEN,SA)198410-198704

W/*SUH,BROWN,BROWN,TRIM4#

sub62471-12330

62461FCLIP (FOR ROOF SIDE TRIM GARNISH)

main90467-06049-02iAE8#,CE80..4DS198305-198408

MAROON,RED/MAROON,TRIM3#

sub90467-06049

main90467-06049-03iAE8#,CE80,EE80..4DS198305-198807

GRAY,GRAY,TRIM1#

sub90467-06049

main90467-06049-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

sub90467-06049

main90467-06049-06iAE8#,CE80,EE80..4DS198408-198807

BROWN,BROWN,TRIM4#

sub90467-06049

62462GARNISH, ROOF SIDE TRIM, LH

main62406-12040-02iAE82..4DS..GEN;AE82..4DS..EUG;AE80,CE80..4DS..(EUR,GEN,SAA)198305-198408

W/*MH,W/O 3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62406-12040-03iAE82..4DS..GEN;AE82..4DS..EUG;AE80,CE80..4DS..(EUR,GEN,SAA)198305-198707

W/*MH,W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

main62406-12040-03iAE82,EE80..4DS..(DX,STD)..SA198605-198807

GRAY,GRAY,TRIM1#

main62406-12040-04iAE82..4DS..GEN;AE82..4DS..EUG;AE80,CE80..4DS..(EUR,GEN,SAA)198305-198707

W/*MH,W/O 3-POINT BELT,BLUE,BLUE,TRIM8#

main62406-12040-04iAE82,EE80..4DS..(DX,STD)..SA198605-198807

BLUE,BLUE,TRIM8#

main62406-12040-06iAE82,EE80..4DS..(DX,STD)..SA198605-198807

BROWN,BROWN,TRIM4#

main62406-12040-06iAE82..4DS..GEN;AE82..4DS..EUG;AE80,CE80..4DS..(EUR,GEN,SAA)198408-198707

W/*MH,W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

main62406-12050-02iCE80..XL;AE80..LHD..4F..GEN198305-198408

W/*MH,W/3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62406-12050-02iAE82..4DS..RHD..GEN;AE80..4DS..RHD..5F..DX..GEN198309-198408

W/*MH,W/3-POINT BELT,MAR00N,RED/MAROON,TRIM3#

main62406-12050-03iEE80..4DS..GEN198305-198704

W/*MH,W/3-POINT BELT,GRAY,GRAY,TRIM1#

main62406-12050-03iAE82..4DS..(GL,GT,SE)..SA198605-198807

GRAY,GRAY,TRIM1#

main62406-12050-04iAE82..4DS..RHD..GEN;AE8#,CE80..4DS..LHD..MTM..(GL,STD,XL)..GEN198305-198704

W/*MH,W/3-POINT BELT,BLUE,BLUE,TRIM8#

main62406-12050-04iAE82..4DS..(GL,SE)..SA198605-198807

BLUE,BLUE,TRIM8#

main62406-12050-06iEE80..4DS..GEN198408-198704

W/*MH,W/3-POINT BELT,BROWN,BROWN,TRIM4#

main62406-12050-06iAE82..4DS..(GL,GT,SE)..SA198605-198807

BROWN,BROWN,TRIM4#

main62406-12070-02iAE8#,CE80..4DS..(GEN,SA)198305-198408

W/*SUH,W/O 3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62406-12070-03iAE82,CE80,EE80..4DS..GEN198305-198704

W/*SUH,W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

main62406-12070-04iAE8#,CE80,EE80..4DS..(DX,GL,STD,XL)..(GEN,SA)198305-198704

W/*SUH,W/O 3-POINT BELT,BLUE,BLUE,TRIM8#

main62406-12070-06iAE8#,CE80,EE80..4DS..(GEN,SA)198408-198704

W/*SUH,W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

main62406-12080-02iAE8#,CE80..4DS..RHD..GEN198305-198408

W/*SUH,W/3-POINT BELT,MAROON,RED/MAROON,TRIM3#

main62406-12080-03iAE82,CE80,EE80..4DS..LHD..GEN198305-198704

W/*SUH,W/3-POINT BELT,GRAY,GRAY,TRIM1#

main62406-12080-03iAE8#..4DS..ARL198411-198807

GRAY,GRAY,TRIM1#

main62406-12080-04iAE8#,CE80..4DS..RHD..GEN198305-198704

W/*SUH,W/3-POINT BELT,BLUE,BLUE,TRIM8#

main62406-12080-06iCE80..DX..GEN;AE80..RHD..5F..GL..GEN;AE80..4DS..RHD..(3FC,4F)..GEN198408-198704

W/*SUH,W/3-POINT BELT,BROWN,BROWN,TRIM4#

main62406-12080-06iAE8#..4DS..ARL198411-198807

BROWN,BROWN,TRIM4#

main62472-12200-02iAE80,CE80..5D;AE82..5D..EUG;AE82..5D..(GEN,SA)198305-198408

W/O 3-POINT BELT,MAROON,RED/MAROON,TRIM3#

sub62472-12200

main62472-12200-03iAE8#,EE80..5D..(DX,GL,XL)..GEN198305-198507

W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

sub62472-12200

main62472-12200-03iAE82,CE80,EE80..5D198507-198807

GRAY,GRAY,TRIM1#

sub62472-12200

main62472-12200-04iAE82,CE80,EE80..5D..(DX,GL,XL)198507-198807

BLUE,BLUE,TRIM8#

sub62472-12200

main62472-12200-04iAE82..5D..EUG;AE80,CE80,EE80..5D;AE82..5D..GL..(GEN,SA)198305-198507

W/O 3-POINT BELT,BLUE,BLUE,TRIM8#

sub62472-12200

main62472-12200-06iAE8#,EE80..5D..(DX,GL,XL)..GEN198408-198507

W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

sub62472-12200

main62472-12200-06iAE82,CE80,EE80..5D198507-198807

BROWN,BROWN,TRIM4#

sub62472-12200

main62472-12210-02iAE8#,CE80..5D..EUR198305-198408

W/3-POINT BELT,MAROON,RED/MAROON,TRIM3#

sub62472-12200

main62472-12210-03iAE8#..5D..RHD..GEN198305-198507

W/3-POINT BELT,GRAY,GRAY,TRIM1#

sub62472-12200

main62472-12210-04iAE82,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN)198305-198507

W/3-POINT BELT,BLUE,BLUE,TRIM8#

sub62472-12200

main62472-12210-06iAE8#,CE80,EE80..5D..(ARL,EUR)198408-198507

W/3-POINT BELT,BROWN,BROWN,TRIM4#

sub62472-12200

main62472-12290-03iAE82,CE80,EE80..3DS198507-198704

GRAY,GRAY,TRIM1#

main62472-12290-03iAE82..3DS..GT;EE80..3DS..RHD;EE80..3DS..LHD..5F..GEN;EE80..3DS..LHD..(3FC,4F);CE80,EE80..3DS..LHD..5F..EUG198410-198507

W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

main62472-12290-06iAE82,CE80,EE80..3DS198507-198704

BROWN,BROWN,TRIM4#

main62472-12290-06iAE82..3DS..GT;EE80..3DS..RHD;EE80..3DS..LHD..5F..GEN;EE80..3DS..LHD..(3FC,4F);CE80,EE80..3DS..LHD..5F..EUG198410-198507

W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

main62472-12300-03iAE82,CE80,EE80..3DS198410-198507

W/3-POINT BELT,GRAY,GRAY,TRIM1#

sub62472-12290

main62472-12300-06iAE82,CE80,EE80..3DS198410-198507

W/3-POINT BELT,BROWN,BROWN,TRIM4#

sub62472-12290

main62472-12310-03iAE82,CE80,EE80..5DS..(EUR,GEN,SA)198507-198807

W/*MH,GRAY,GRAY,TRIM1#

sub62472-12310

main62472-12310-03iEE80..5DS..GEN;CE80,EE80..5DS..EUG198410-198507

W/*MH,W/O 3-POINT BELT,GRAY,GRAY,TRIM1#

sub62472-12310

main62472-12310-06iAE82,CE80,EE80..5DS..(EUR,GEN)198507-198807

W/*MH,BROWN,BROWN,TRIM4#

sub62472-12310

main62472-12310-06iEE80..5DS..GEN;CE80,EE80..5DS..EUG198410-198507

W/*MH,W/O 3-POINT BELT,BROWN,BROWN,TRIM4#

sub62472-12310

main62472-12320-03iAE82,CE80,EE80..5DS..(EUR,GEN)198410-198507

W/*MH,W/3-POINT BELT,GRAY,GRAY,TRIM1#

sub62472-12310

main62472-12320-06iAE82,CE80,EE80..5DS..(EUR,GEN)198410-198507

W/*MH,W/3-POINT BELT,BROWN,BROWN,TRIM4#

sub62472-12310

main62472-12330-03iAE8#,EE80..5DS..(GEN,SA)198410-198704

W/*SUH,GRAY,GRAY,TRIM1#

sub62472-12330

main62472-12330-06iEE80..5DS..GEN198410-198704

W/*SUH,BROWN,BROWN,TRIM4#

sub62472-12330

62531COVER, WHEEL HOUSE TRIM, RH

main62613-12130-03iAE8#,CE80,EE80..4DS..(DX,S,STD,XL)198305-198807

GRAY,GRAY

62532COVER, WHEEL HOUSE TRIM, LH

main62614-12100-03iAE8#,CE80,EE80..4DS..(DX,S,STD,XL)198305-198807

GRAY,GRAY

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-12030iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

RH

main62561-12040iAE82,CE80,EE80..3DS198410-198704

RH

main62562-12010iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

LH

main62562-12020iAE82,CE80,EE80..3DS198410-198704

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-12020iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

RH

main62564-12020iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

LH

9015950103

main90159-50103

9018905018

main90189-05018

9046305024

main90463-05024

9046710015

main90467-10015

9046805011

main90468-05011

9095901096

main90959-01096

9095901097

main90959-01097

27 parts on this diagram · 4 diagrams in section
