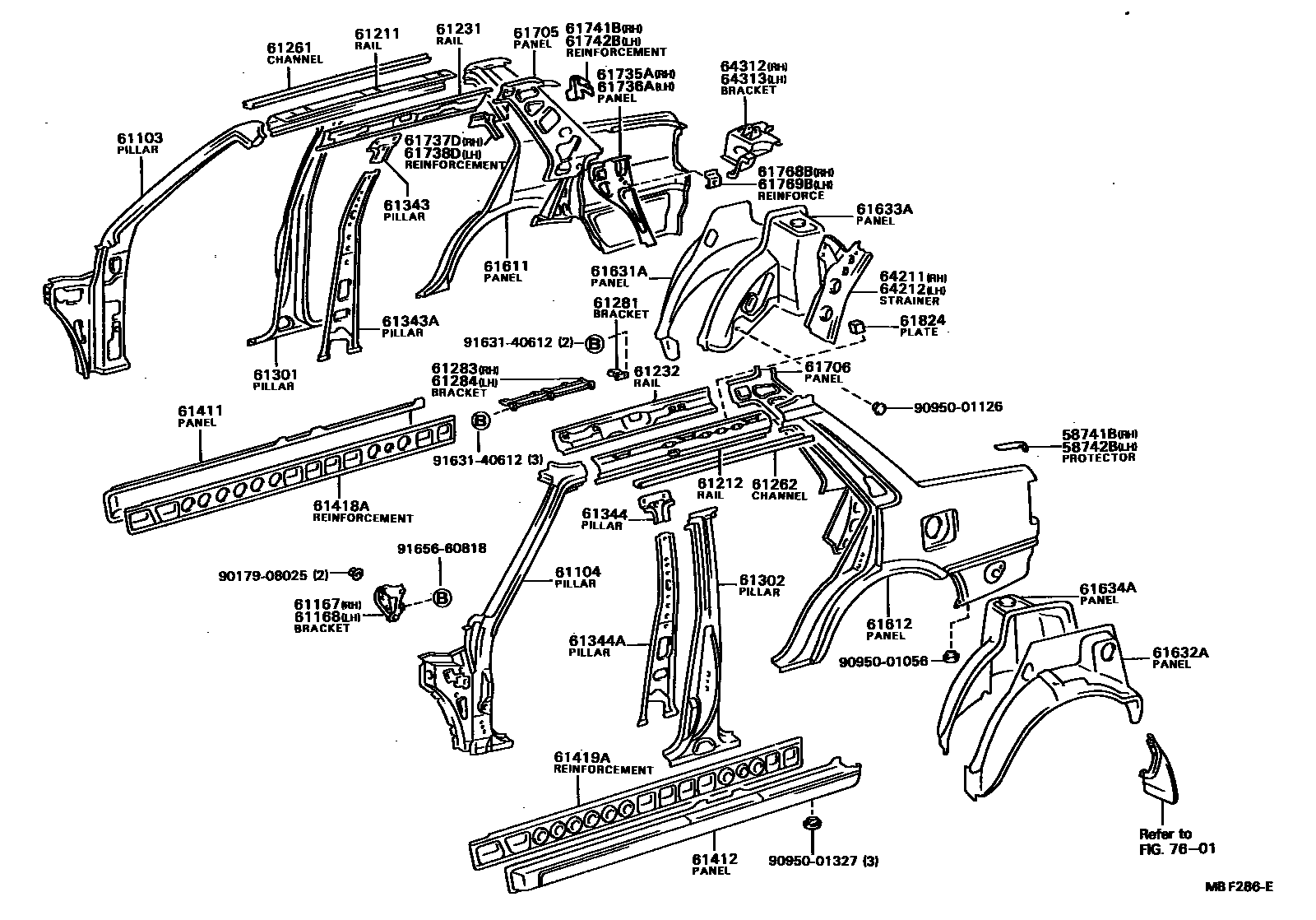

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12020iAE82..4DS..GT198605-198807

58742BPROTECTOR, QUARTER PANEL, LH

main58742-12020iAE82..4DS..GT198605-198807

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12390iAE82..SED..(GT,SE)..SA198608-198807

W/*PW OR ELECTRIC MIRROR

main61021-12400iAE82..SED..(GT,SE)..SA198605-198608

W/*PW OR ELECTRIC MIRROR

main61021-12410iAE80,EE80..4DS..SAA198308-198707

main61021-12440iAE8#,CE80,EE80..SED..LHD..(EUR,GEN)198305-198704

main61021-12450iAE8#,CE80,EE80..SED..RHD198305-198807

main61021-12460iAE82..5D..GT..SA198608-198807

W/*PW OR ELECTRIC MIRROR

main61021-12470iAE82..5D..GT..SA198605-198608

W/*PW OR ELECTRIC MIRROR

main61021-12480iAE80,EE80..5D..SAA198308-198707

main61021-12540iAE8#,CE80,EE80..5D..LHD..(EUR,GEN)198305-198704

main61021-12550iAE8#,EE80..5D..RHD198305-198807

main61021-12720iAE82..LHD..GT..EUG198608-198704

W/*PW OR ELECTRIC MIRROR

main61021-12730iEE80..4DS..RHD..5F..GL..GEN198609-198704

W/*PW

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12450iAE82..SED..(GT,SE)..SA198608-198807

W/*PW OR ELECTRIC MIRROR

main61022-12460iAE82..SED..(GT,SE)..SA198605-198608

W/*PW OR ELECTRIC MIRROR

main61022-12470iAE80,EE80..4DS..SAA198308-198505

W/ANTENNA

main61022-12490iAE8#,CE80,EE80..SED..RHD198305-198807

main61022-12500iAE8#,CE80,EE80..SED..LHD..GEN198305-198505

W/O ANTENNA

main61022-12510iAE82,CE80,EE80..SED..LHD..(EUR,GEN)198505-198704

main61022-12520iAE82..5D..GT..SA198608-198807

W/*PW OR ELECTRIC MIRROR

main61022-12530iAE82..5D..GT..SA198605-198608

W/*PW OR ELECTRIC MIRROR

main61022-12540iAE80,EE80..5D..SAA198308-198505

W/ANTENNA

main61022-12560iAE8#,EE80..5D..RHD198305-198807

main61022-12570iAE8#,EE80..5D..LHD..GEN198305-198505

W/O ANTENNA

main61022-12580iAE8#,CE80,EE80..5D..LHD..(EUR,GEN)198305-198505

W/ANTENNA

main61022-12590iAE80,EE80..4DS..SAA198308-198505

W/O ANTENNA

main61022-12600iAE80,EE80..5D..SAA198308-198505

W/O ANTENNA

main61022-12730iAE82..RHD..EUG198608-198704

W/*PW OR ELECTRIC MIRROR

main61022-12740iAE82..LHD..GT..EUG198608-198704

W/*PW OR ELECTRIC MIRROR

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12030iAE8#,CE80,EE80..LHD198305-198707

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12030iAE8#,CE80,EE80..RHD198305-198807

61211RAIL, ROOF SIDE, OUTER RH

main61211-12190iAE8#,CE80,EE80..4DS,5DS198305-198807

main61211-12200iAE8#,CE80,EE80..5D198305-198807

main61211-12210iAE82,CE80,EE80..3DS198410-198704

61212RAIL, ROOF SIDE, OUTER LH

main61212-12190iAE8#,CE80,EE80..4DS,5DS198305-198807

main61212-12200iAE8#,CE80,EE80..5D198305-198807

main61212-12210iAE82,CE80,EE80..3DS198410-198704

61231RAIL, ROOF SIDE, INNER RH

main61231-12330iAE8#,CE80,EE80..(4DS,5DS)..(EUR,GEN,SA)198305-198512

W/O SUN ROOF

main61231-12340iAE8#,CE80,EE80..(4DS,5DS)..(DX,GL,XL)..(EUR,GEN)198305-198512

W/SUN ROOF

main61231-12350iAE80,EE80..4DS..SAA198308-198512

W/O SUN ROOF

main61231-12360iAE80,EE80..4DS..(DX,XL)..SAA198308-198512

W/SUN ROOF

main61231-12370iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198305-198512

W/O SUN ROOF

main61231-12380iAE8#,CE80,EE80..5D..(EUR,GEN)198305-198512

W/SUN ROOF

main61231-12390iAE80,EE80..5D..SAA198308-198611

W/O SUN ROOF

main61231-12400iEE80..5D..SAA198611-198707

main61231-12570iAE82,CE80,EE80..3DS198410-198704

61232RAIL, ROOF SIDE, INNER LH

main61232-12230iAE8#,CE80,EE80..(4DS,5DS)..(EUR,GEN,SA)198305-198807

W/O SUN ROOF

main61232-12240iAE8#,CE80,EE80..(4DS,5DS)..(DX,GL,XL)..(EUR,GEN)198305-198704

W/SUN ROOF

main61232-12250iAE80,EE80..4DS..SAA198308-198512

W/O SUN ROOF

main61232-12260iAE80,EE80..4DS..(DX,XL)..SAA198308-198512

W/SUN ROOF

main61232-12270iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198305-198512

W/O SUN ROOF

main61232-12280iAE8#,CE80,EE80..5D..(EUR,GEN)198305-198512

W/SUN ROOF

main61232-12290iAE80,EE80..5D..SAA198308-198512

W/O SUN ROOF

main61232-12300iAE80,EE80..5D..SAA198308-198512

W/SUN ROOF

main61232-12420iAE82,CE80,EE80..3DS198410-198704

61261CHANNEL, ROOF DRIP, RH

main61265-12060iAE8#,CE80,EE80..4DS198305-198807

main61265-12080iAE8#,CE80,EE80..5D198305-198807

main61265-12090iAE82,CE80,EE80..3DS198410-198704

main61265-12100iAE8#,CE80,EE80..5DS198410-198807

61262CHANNEL, ROOF DRIP, LH

main61266-12060iAE8#,CE80,EE80..4DS198305-198807

main61266-12080iAE8#,CE80,EE80..5D198305-198807

main61266-12090iAE82,CE80,EE80..3DS198410-198704

main61266-12100iAE8#,CE80,EE80..5DS198410-198807

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-12020×2iAE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA)198305-198410

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-12020iAE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA)198305-198410

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-12020iAE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA)198305-198410

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-12150iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA)198305-198807

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-12180iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)198305-198807

main61302-12190iEE80..4DS..RHD..5F..GL..GEN198609-198704

W/*PW

main61302-12200iEE80..SAA198410-198707

main61302-12210iAE80..SAA198308-198410

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-12060iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA)198305-198807

61343APILLAR, CENTER BODY, INNER RH

main61343-12900iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)198305-198807

main61343-12901iAE80,EE80..SAA198308-198707

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-12060iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA)198305-198807

61344APILLAR, CENTER BODY, INNER LH

main61344-12900iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)198305-198807

main61344-12901iAE80,EE80..SAA198308-198707

61411PANEL, ROCKER, OUTER RH

main61411-12290iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

main61411-12320iAE82,CE80,EE80..3DS..(DX,GL,STD,XL)198410-198704

main61411-12330iAE82..3DS..GT198410-198704

61412PANEL, ROCKER, OUTER LH

main61412-12290iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

main61412-12310iAE82,CE80,EE80..3DS..(DX,GL,STD,XL)198410-198704

main61412-12320iAE82..3DS..GT198410-198704

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-12070iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,EUR,GEN,SA)198305-198807

main61418-12090iAE82,CE80,EE80..3DS198410-198704

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-12070iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,EUR,GEN,SA)198305-198807

main61419-12090iAE82,CE80,EE80..3DS198410-198704

61611PANEL, QUARTER, RH

main61601-12905iEE80..3DS..GEN198410-198606

main61601-12906iAE82,CE80,EE80..3DS..(DX,GL,STD,XL)198606-198704

main61601-12907iAE82..3DS..GEN198410-198609

main61601-12908iAE82..3DS..GT198609-198704

main61601-12910iEE80..5DS..GEN198410-198704

main61601-12911iAE8#,CE80,EE80..5DS..(EUR,GEN,SA)198410-198807

*GIS

main61601-12912iAE82,EE80..5D..(GL,XL)..GEN198501-198704

main61601-12913iEE80..5D..SAA198501-198707

main61601-12914iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198501-198807

*GIS

main61601-1A780iAE82,CE80,EE80..4DS..GEN198410-198704

W/O 3-POINT BELT

main61601-1A790iAE80,EE80..4DS..SAA198308-198707

main61601-1A800iAE8#,CE80,EE80..4DS..GEN198305-198704

*GIS,W/O 3-POINT BELT

main61601-1A810iAE8#,CE80,EE80..4DS..(EUR,SA)198403-198807

main61601-1A830iAE8#,CE80..5D..(EUR,GEN)198305-198403

main61601-1A840iAE80,EE80..5D..SAA198308-198501

main61601-1A850iAE8#..5D..(GEN,SA)198305-198403

*GIS

main61601-1E120iAE82,CE80..4DS..LHD..5F..GEN; EE80..4DS..LHD..GEN198410-198505

W/3-POINT BELT

61612PANEL, QUARTER, LH

main61602-12905iEE80..3DS..GEN198410-198606

W/O OPENER

main61602-12906iEE80..3DS..XL198410-198606

W/OPENER

main61602-12907iAE82,CE80,EE80..3DS..(DX,GL,XL)198410-198606

*GIS,W/OPENER

main61602-12908iAE82..3DS..GEN198410-198704

main61602-12909iAE82..3DS..GT198410-198704

*GIS

main61602-12911iCE80,EE80..3DS..STD..EUG198410-198704

*GIS,W/O OPENER

main61602-12912iEE80..5DS..(STD,XL)..GEN198410-198608

W/O OPENER

main61602-12913iEE80..5DS..(GL,XL)..GEN198410-198608

W/OPENER

main61602-12914iAE8#,EE80..5DS..(DX,GT,STD,XL)..(GEN,SA)198410-198608

*GIS,W/O OPENER

main61602-12915iAE8#,CE80,EE80..5DS..(DX,GL,XL)..(EUR,GEN)198410-198608

*GIS,W/OPENER

main61602-12916iAE82,EE80..5D..(GL,XL)..GEN198501-198704

W/OPENER

main61602-12917iEE80..5D..SAA198501-198707

W/O OPENER

main61602-12918iEE80..5D..SAA198501-198707

W/OPENER

main61602-12919iAE80,EE80..5D..GEN198501-198704

*GIS,W/O OPENER

main61602-12920iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198501-198807

*GIS,W/OPENER

main61602-12922iEE80..5D..GEN198501-198704

W/O OPENER

main61602-1A360iAE82,CE80,EE80..4DS..(DX,STD,XL)..GEN198410-198704

W/O 3-POINT BELT,OPENER

main61602-1A370iAE8#,CE80..4DS..(DX,GL,XL)..GEN198305-198410

W/O 3-POINT BELT,W/OPENER

main61602-1A380iAE80,EE80..4DS..SAA198308-198707

W/O OPENER

main61602-1A390iAE80,EE80..4DS..(DX,XL)..SAA198308-198707

W/OPENER

main61602-1A410iAE8#,CE80,EE80..4DS..(DX,GL,XL)..GEN198305-198704

*GIS,W/O 3POINT BELT,W/OPENER

main61602-1A420iAE82,EE80..4DS..DX..SA; CE80..DX..GEN; EE80..4DS..RHD..STD198410-198505

*GIS,W/3-POINT BELT,W/O OPENER

main61602-1A430iAE82..4DS..(GL,GT,SE)..SA198402-198807

main61602-1A460iAE8#..5D..GEN198305-198410

W/OPENER

main61602-1A470iAE80,EE80..5D..4F198305-198501

W/O OPENER

main61602-1A480iAE80,EE80..5D..SAA198308-198501

W/OPENER

main61602-1A490iAE8#,CE80..5D..EUR198403-198410

main61602-1A500iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198410-198501

*GIS,W/OPENER

main61602-1A520iCE80..XL;AE80..LHD..4F..GEN198307-198410

W/3-POINT BELT,W/O OPENER

main61602-1A530iAE82,CE80..4DS..LHD..5F..GEN; EE80..4DS..LHD..XL..GEN198410-198505

W/3-POINT BELT,OPENER

main61602-1A680iEE80..5D..GEN198410-198501

W/O OPENER

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12160iAE82,CE80,EE80..3DS..(DX,GL,STD,XL)198508-198704

main61631-12170iAE82,CE80,EE80..(DX,GL,STD,XL)..GEN198410-198508

main61631-12180iAE82..3DS..GT198410-198704

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12160iAE8#,CE80,EE80..4DS,5D,5DS198305-198508

*GIS

main61632-12170iAE8#,CE80..GEN198305-198410

main61632-12180iAE82..3DS..GT198410-198704

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12900iAE8#,CE80,EE80..4DS..(DX,STD,XL)198305-198807

main61607-12901iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,GT,SE)198305-198807

main61607-12902iAE8#,CE80,EE80..3DS,5D,5DS198305-198807

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12900iAE8#,CE80,EE80..4DS..(DX,STD,XL)198305-198807

main61608-12901iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,GT,SE)198305-198807

main61608-12902iAE8#,CE80,EE80..3DS,5D,5DS198305-198807

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12939iAE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)198305-198807

main61705-12941iAE82,EE80..5D..GEN198410-198704

main61705-12943iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198305-198807

*GIS

main61705-12944iAE80,EE80..5D..SAA198308-198707

main61705-12947iAE82,CE80,EE80..3DS198410-198704

main61705-12948iAE8#,CE80,EE80..5DS198410-198807

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12941iAE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)198305-198807

main61706-12943iAE82,EE80..5D..GEN198410-198704

main61706-12945iAE8#,CE80,EE80..5D..(EUR,GEN,SA)198305-198807

*GIS

main61706-12946iAE80,EE80..5D..SAA198308-198707

main61706-12952iAE82,CE80,EE80..3DS198410-198704

main61706-12953iAE8#,CE80,EE80..5DS198410-198807

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12190iAE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)198305-198807

main61735-12220iAE82,EE80..(3DS,5DS)..GEN198410-198601

main61735-12230iAE8#,CE80,EE80..3DS,5DS198410-198601

*GIS

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12160iAE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)198305-198807

main61736-12190iAE82,EE80..(3DS,5DS)..GEN198410-198601

main61736-12200iAE8#,CE80,EE80..3DS,5DS198410-198601

*GIS

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-12080iAE8#..4DS..ARL198411-198807

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-12090iAE8#..4DS..ARL198411-198807

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-12060iAE8#..4DS..ARL198411-198807

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-12040iAE8#..4DS..ARL198411-198807

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-12090iAE8#,CE80..4DS..RHD..GEN; AE80..LHD..4F..GEN;AE82,CE80..4DS..LHD..5F..GEN198305-198410

main61768-12110iAE82,CE80,EE80..3DS,5DS198410-198807

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-12060iAE8#,CE80..4DS..RHD..GEN; AE80..LHD..4F..GEN;AE82,CE80..4DS..LHD..5F..GEN198305-198410

main61769-12080iAE82,CE80,EE80..3DS,5DS198410-198807

61824PLATE, NOISE CONTROL, NO.1

main61824-12010×4iAE8#,CE80,EE80198305-198807

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12060iAE8#,CE80,EE80..4DS198305-198807

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12060iAE8#,CE80,EE80..4DS198305-198807

64312BRACKET, PACKAGE TRAY, RH

main64312-12900iAE8#,CE80,EE80..4DS198305-198807

64313BRACKET, PACKAGE TRAY, LH

main64313-12900iAE8#,CE80,EE80..4DS198305-198807

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9017908025

main90179-08025

9095001056

main90950-01056

9095001126

main90950-01126

9095001327

main90950-01327

9163140612

main91631-40612

9165660818

main91656-60818

53 parts on this diagram · 4 diagrams in section
