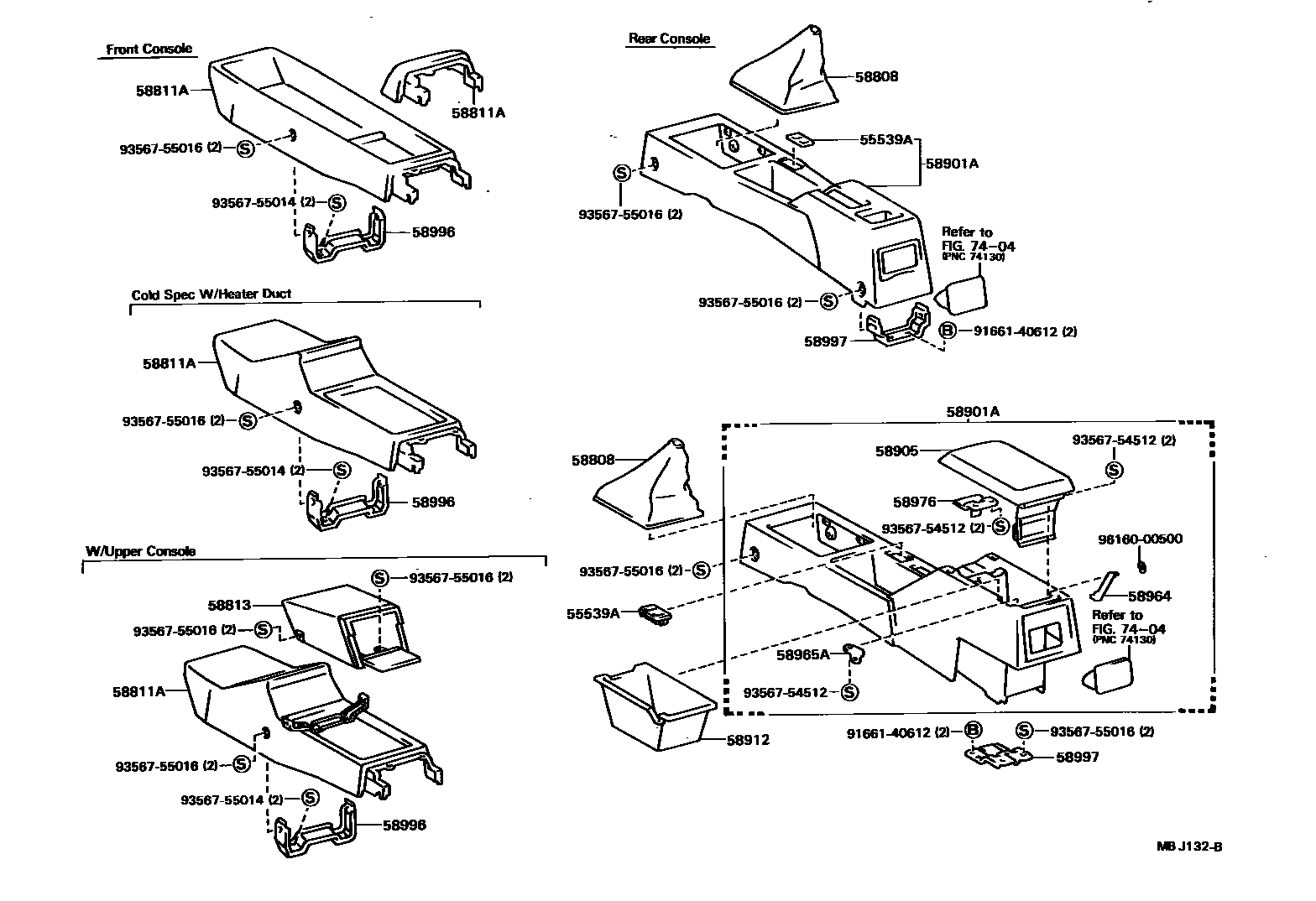

CONSOLE BOX & BRACKET

0001 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55539-14031-04×2iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA); AE82,EE80..(4DS,5D)..GL..GEN; AE82..4DS..GL..SA198505-198605

BLUE,BLUE,TRIM8#

main55539-14031-12iAE8#..GL..(GEN,SAA)198305-198408

MAROON,RED/MAROON,TRIM3#

main55539-14031-13iAE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA); AE82,EE80..(DX,STD)..SA; AE82,EE80..(GL,GT)..GEN; AE82..(4DS,5D)..CSX; AE82..4DS..GL..SA; AE82..GT..(ARL,SA)198505-198605

GRAY,GRAY,TRIM1#

main55539-14031-26×2iAE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA); AE82,EE80..(GL,GT)..GEN; AE82..(4DS,5D)..CSX; AE82..4DS..GL..SA; AE82..GT..(ARL,SA)198505-198605

BROWN,BROWN,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12060-02iAE8#,CE80..MTM198305-198407

MAROON,RED/MAROON,TRIM3#

main58808-12060-03iAE8#,CE80..MTM198305-198407

GRAY,GRAY,TRIM1#

main58808-12060-04iAE8#,CE80..MTM198305-198407

BLUE,BLUE,TRIM8#

main58808-12061-02iAE8#,CE80..MTM198407-198408

MAROON,RED/MAROON,TRIM3#

main58808-12061-03iAE8#,EE80..MTM..(CS,CSX,DX,GL,S,STD)..(ARL,SA)198410-198605

GRAY,GRAY,TRIM1#

main58808-12061-04iAE8#,CE80..MTM198407-198410

BLUE,BLUE,TRIM8#

main58808-12061-06iAE8#,EE80..MTM..(CS,CSX,DX,GL,S,STD)..(ARL,SA)198410-198605

BROWN,BROWN,TRIM4#

main58808-12080-13iAE82..GT..(ARL,SA)198411-198605

GRAY,GRAY,TRIM1#

main58808-12080-14iAE8#,CE80,EE80..(4DS,5D)..MTM..(EUR,GEN,SAA)198410-198505

BLUE,BLUE,TRIM8#

main58808-12080-16iAE82,CE80,EE80..MTM..(EUR,GEN,SAA)198505-198605

BROWN,BROWN,TRIM4#

58811ABOX, CONSOLE, FRONT

main58802-12010-02iAE8#,CE80..LHD..EUR198305-198408

W/HEATER REAR DUCT,MAROON,RED/MAROON,TRIM3#

main58802-12010-03iAE82,CE80,EE80..LHD..(DX,STD)..EUR198505-198704

W/*HEA DUCT,GRAY,GRAY,TRIM1#

main58802-12010-04iAE82,CE80,EE80..(4DS,5D)..LHD..(DX,STD)..EUR198505-198704

W/*HEA DUCT,BLUE,BLUE,TRIM8#

main58802-12010-06iAE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR198408-198505

W/*HEA DUCT,BROWN,BROWN,TRIM4#

main58802-12020-03iAE82,CE80,EE80..LHD..(DX,GL)..EUR198505-198704

W/*HEA DUCT,UPR CONSOLE,GRAY,GRAY,TRIM1#

main58802-12020-04iAE82,CE80,EE80..(4DS,5D)..LHD..(DX,GL)..EUR198505-198704

W/*HEA DUCT,UPR CONSOLE,BLUE,BLUE,TRIM8#

main58802-12020-06iAE82,CE80,EE80..LHD..(DX,GL)..EUR198505-198704

W/*HEA DUCT,UPR CONSOLE,BROWN,BROWN,TRIM4#

main58802-12030-03iAE82..GT..(EUR,GEN)198605-198704

GRAY,GRAY,TRIM1#

main58802-12030-04iAE82..(GL,SE)..SA198605-198807

BLUE,BLUE,TRIM4#

main58802-12030-06iAE82..(4DS,5D)..(GL,GT,SE)..SA; AE82..4DS..5F..CSX;AE82..(5D,5DS)..(CSX,GT)..ARL198605-198807

BROWN,BROWN,TRIM4#

main58811-12330-02iAE82..GL..SA198402-198408

MAROON,RED/MAROON,TRIM3#

main58811-12330-03iAE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN); EE80..SAA198410-198505

LONG TRAY,GRAY,GRAY,TRIM1#

main58811-12330-04iAE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN); EE80..SAA198410-198505

LONG TRAY,BLUE,BLUE,TRIM8#

main58811-12330-06iAE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN); EE80..SAA198410-198505

LONG TRAY,BROWN,BROWN,TRIM4#

main58811-12350-02iAE8#,CE80..DX,STD,XL198305-198408

MAROON,RED/MAROON,TRIM3#

main58811-12350-03iAE82,CE80,EE80..(DX,STD,XL)..(EUR,GEN,SAA)198605-198707

GRAY,GRAY,TRIM1#

main58811-12350-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)198305-198605

BLUE,BLUE,TRIM8#

main58811-12350-06iEE80..STD..SA198605-198807

BROWN,BROWN,TRIM4#

58813BOX, CONSOLE, UPPER

main58810-12460-03iAE82..GT198410-198605

GRAY,GRAY,TRIM1#

main58810-12460-04iAE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN)198505-198704

BLUE,BLUE,TRIM8#

main58810-12460-06iAE82..(4DS,5D)..(GL,GT,SE)..SA; AE82..4DS..5F..CSX;AE82..(5D,5DS)..(CSX,GT)..ARL198605-198807

BROWN,BROWN,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12040-02iAE8#..(DX,STD)..SA; AE82..5D..SA198402-198408

MAROON,RED/MAROON,TRIM3#

main58901-12040-03iAE8#,EE80..(DX,STD)..SA; AE82..5D..GL..SA198402-198605

GRAY,GRAY,TRIM1#

main58901-12040-04iAE8#,EE80..4DS..(DX,STD)..SA; AE82..5D..GL..SA198402-198605

BLUE,BLUE,TRIM8#

main58901-12040-06iAE8#,EE80..(DX,STD)..SA; AE82..5D..GL..SA198408-198605

BROWN,BROWN,TRIM4#

main58901-12090-02iAE8#,CE80..EUR; AE80,CE80..(DX,STD,XL)..(GEN,SAA)198305-198408

MAROON,RED/MAROON,TRIM3#

main58901-12090-03iAE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SAA); AE8#,CE80,EE80..EUR198305-198505

GRAY,GRAY,TRIM1#

main58901-12090-04iAE8#,CE80,EE80..(4DS,5D)..(CS,DX,S,STD,XL)..(ARL,GEN,SAA); AE8#,CE80,EE80..(4DS,5D)..EUR198305-198505

BLUE,BLUE,TRIM8#

main58901-12090-06iAE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SAA); AE8#,CE80,EE80..EUR198408-198505

BROWN,BROWN,TRIM4#

main58901-12091-03iAE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA); AE82..5DS..CSX198505-198605

GRAY,GRAY,TRIM1#

main58901-12091-04iAE82,CE80,EE80..(4DS,5D)..EUR198505-198704

BLUE,BLUE,TRIM8#

main58901-12091-06iAE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA); AE82..5DS..CSX198505-198605

BROWN,BROWN,TRIM4#

main58901-12130-03iAE82,EE80..(GL,GT)..GEN198505-198704

GRAY,GRAY,TRIM1#

main58901-12130-04iEE80..4DS..RHD..5F..XL198611-198704

MALAYSIA SPEC,BLUE,BLUE,TRIM8#

main58901-12130-06iAE82,EE80..(GL,GT)..GEN198505-198704

BROWN,BROWN,TRIM4#

main58910-12010-02iAE82..4DS..GL..SA198402-198408

MAROON,RED/MAROON,TRIM3#

main58910-12010-03iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

GRAY,GRAY,TRIM1#

main58910-12010-04iAE8#,EE80..(4DS,5D)..GL..(GEN,SAA)198305-198505

BLUE,BLUE,TRIM8#

main58910-12010-06iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

BROWN,BROWN,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12050-03iAE82,EE80..RHD..(GL,GT)..GEN198505-198704

GRAY,GRAY,TRIM1#

main58905-12050-04iAE82,EE80..(4DS,5D)..RHD..GL..GEN198505-198704

BLUE,BLUE,TRIM8#

main58905-12050-06iAE82,EE80..RHD..(GL,GT)..GEN198505-198704

BROWN,BROWN,TRIM4#

main58905-12060-03iAE82,EE80..LHD..(GL,GT)..GEN198505-198704

GRAY,GRAY,TRIM1#

main58905-12060-04iAE82,EE80..(4DS,5D)..LHD..GL..GEN198505-198704

BLUE,BLUE,TRIM8#

main58905-12060-06iAE82,EE80..LHD..(GL,GT)..GEN198505-198704

BROWN,BROWN,TRIM4#

main58951-12080-02iAE8#..GL..(GEN,SAA)198305-198408

MAROON,RED/MAROON,TRIM3#

main58951-12080-03iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

GRAY,GRAY,TRIM1#

main58951-12080-04iAE82..4DS..GL..SA198402-198605

BLUE,BLUE,TRIM8#

main58951-12080-06iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

BROWN,BROWN,TRIM4#

58912BOX, REAR CONSOLE, NO.2

main58912-12010-02iAE8#..GL..(GEN,SAA)198305-198408

MAROON,RED/MAROON,TRIM3#

main58912-12010-03iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

GRAY,GRAY,TRIM1#

main58912-12010-04iAE82..4DS..GL..SA198402-198605

BLUE,BLUE,TRIM8#

main58912-12010-06iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

BROWN,BROWN,TRIM4#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20010iAE8#..GL..GEN198305-198308

main58964-30030iAE82..4DS..GL..SA198402-198605

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAE82..(4DS,5D)..CSX; AE82..GT..(ARL,SA)198411-198605

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iAE82..(CSX,GL,GT,SE)..(ARL,SA)198605-198807

main58976-22020iEE80..4DS..RHD..5F..XL198611-198704

MALAYSIA SPEC

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12050iAE82,CE80,EE80..EUR,SAA198410-198707

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-12030iAE82..(CSX,GL,GT,SE)..(ARL,SA)198605-198807

main58997-12040iAE82..5D..GL..SA198402-198605

7404ASH RECEPTACLE

→ Go to FIG 74-04

9166140612

main91661-40612

9356754512

main93567-54512

9356755014

main93567-55014

9356755016

main93567-55016

9616000500

main96160-00500

18 parts on this diagram · 2 diagrams in section
