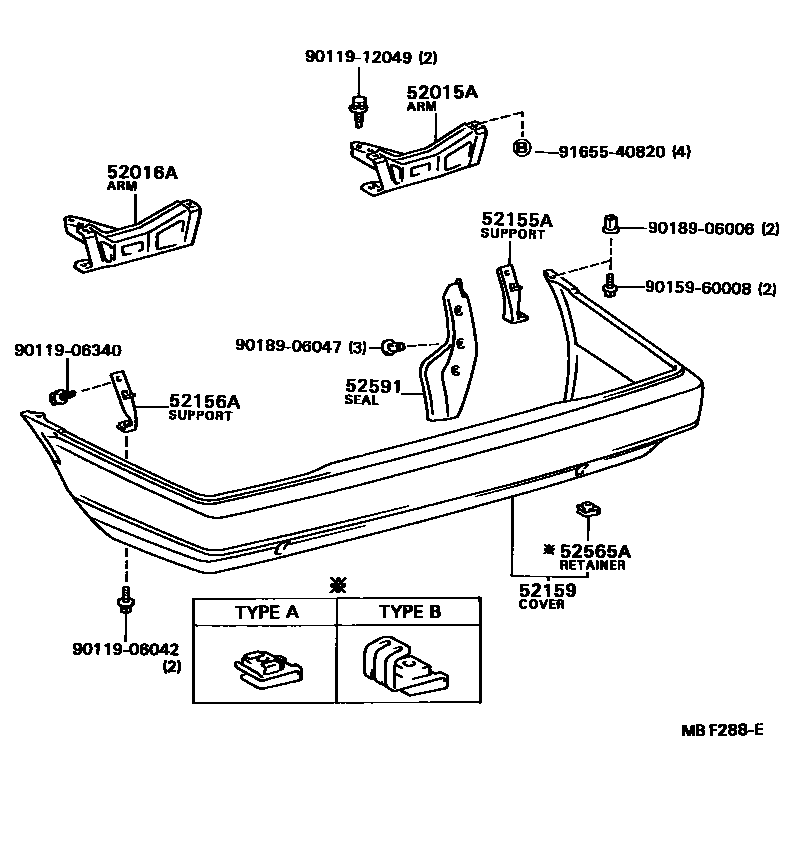

Toyota COROLLA SED/LB151 — REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52565ARETAINER, REAR BUMPER, LOWER
9011906042
9011906340
9011912049
9015960008
9018906006
9018906047
9165540820
14 parts on this diagram · 4 diagrams in section
REAR BUMPER & BUMPER STAY for Toyota COROLLA SED/LB151
This section contains 36 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota COROLLA SED/LB151. Key components include: ARM SUB-ASSY, REAR BUMPER, RH, ARM SUB-ASSY, REAR BUMPER, LH, REINFORCEMENT SUB-ASSY, REAR BUMPER, EXTENSION, REAR BUMPER, RH, STAY, REAR BUMPER SIDE, RH.
