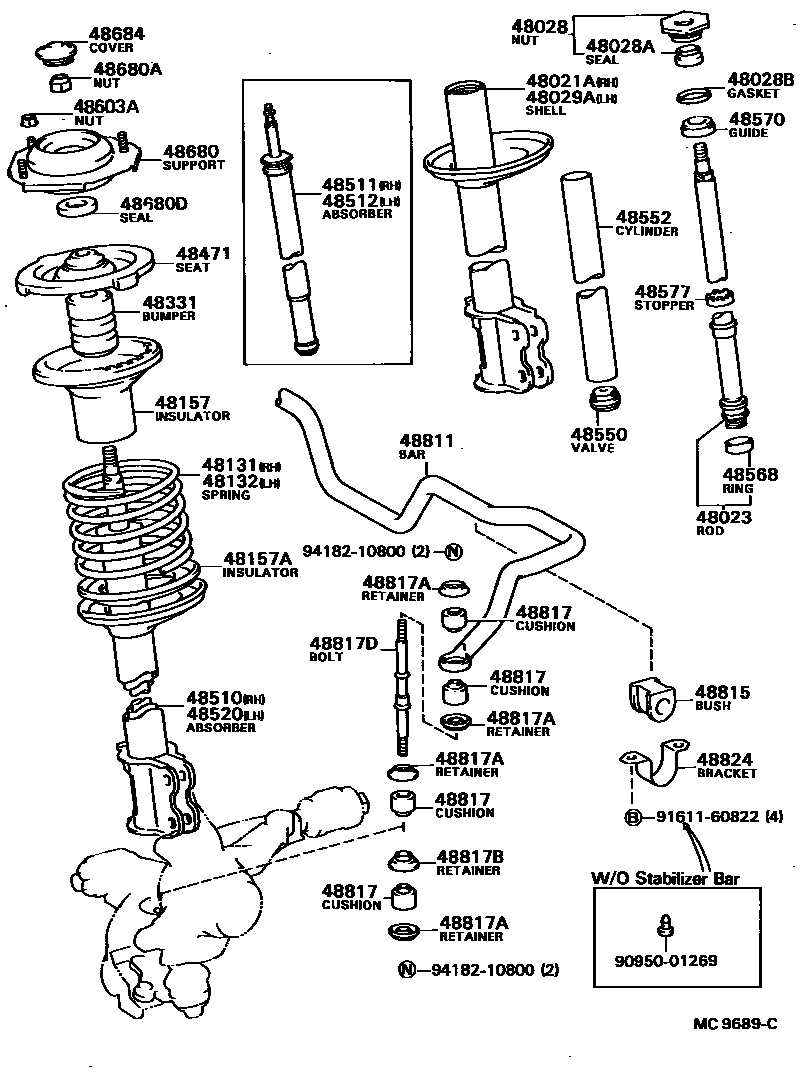

FRONT SPRING & SHOCK ABSORBER

48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH

main48021-12181iAE8#..(4DS,5D)..(DX,GL,STD)..SA198305-198505

main48021-20121iCE80198305-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12290iAE8#..(4DS,5D)..(DX,GL,STD)..SA198305-198505

main48023-12300iCE80198305-198403

sub48023-20110

main48023-20110iCE80198403-198505

main48023-20270iCE80..GEN198403-198505

HARSH ROAD PACKAGE

main48023-20280iAE82..(DX,GL)..EUG;EE80..LHD..(EUR,SAA)198403-198505

HARSH ROAD PACKAGE

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198505

sub48028-17010

main48028-14011iCE80198305-198505

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198807

main90316-22001iCE80198305-198505

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iAE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL198305-198807

sub90430-37003

main90430-37003iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198402-198505

main90430-43206iCE80198305-198505

48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH

main48029-12061iAE8#..(4DS,5D)..(DX,GL,STD)..SA198305-198505

main48029-20121iCE80198305-198505

48131SPRING, FRONT COIL, RH

main48131-1A640iCE80198305-198704

main48131-1A660iAE8#..MTM..GEN198305-198312

main48131-1A680iAE80..MTM..SAA198308-198312

main48131-1A680iAE8#..3FC..GEN198305-198312

W/COOLER

main48131-1A700iAE8#..LHD..3FC..GEN198305-198312

W/COOLER

sub48131-1E350

main48131-1A760iCE80..LHD198305-198704

W/COOLER

main48131-1A840iAE82..MTM..ARL;AE80..MTM..(ARL,EUR);AE82..5F..(DX,GL)..EUG198305-198807

main48131-1A840iAE8#..RHD..MTM..GEN198311-198704

NEW ZEALAND SPEC

main48131-1A840iEE80..LHD..MTM..EUG198505-198704

W/COOLER

main48131-1A860iEE80..RHD..MTM..GEN198401-198704

W/COOLER

main48131-1A860iAE8#..RHD..3FC..GEN198311-198704

NEW ZEALAND SPEC

main48131-1A860iAE8#..ATM..(ARL,EUR,SA)198305-198807

main48131-1A860iEE80..LHD..3FC..EUG198505-198704

W/COOLER,NEW ZEALAND SPEC

main48131-1A860iEE80..RHD..3FC..EUG198410-198704

HARSH ROAD PACKAGE

main48131-1A880iEE80..LHD..MTM..EUG198505-198704

W/COOLER,NEW ZEALAND SPEC

main48131-1A880iEE80..RHD..3FC..GEN198401-198704

W/COOLER

main48131-1A880iAE82..5F..GEN198403-198704

HARSH ROAD PACKAGE

main48131-1A880iEE80..RHD..3FC..GEN198505-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1A880iAE82..3FC..SDZ198305-198505

main48131-1E010iEE80..LHD..MTM..GEN198410-198704

main48131-1E110iEE80..LHD..MTM..EUR198410-198704

main48131-1E130iAE82..(DX,GL)..EUG;AE82..MTM..(GL,STD)..GEN198403-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E130iAE82..3FC..GEN;AE82..3FC..EUG198403-198704

HARSH ROAD PACKAGE

main48131-1E150iCE80..LHD..EUG198403-198704

HARSH ROAD PACKAGE

main48131-1E300iEE80..RHD..MTM..GEN198403-198602

W/COOLER,HARSH ROAD PACKAGE

sub48131-1E310

main48131-1E300iEE80..RHD..3FC..GEN198403-198602

HARSH ROAD PACKAGE

sub48131-1E310

main48131-1E300iAE80..LHD..MTM..GEN198308-198410

W/COOLER

sub48131-1E310

main48131-1E310iEE80..RHD..3FC..GEN198602-198707

HARSH ROAD PACKAGE

main48131-1E310iEE80..RHD..3FC..GEN198602-198707

W/COOLER,HARSH ROAD PACKAGE

main48131-1E330iEE80..RHD..MTM..GEN198410-198704

W/COOLER

main48131-1E330iAE8#..MTM..GEN198312-198707

main48131-1E340iAE8#..LHD..MTM..GEN198312-198707

W/COOLER

main48131-1E340iAE80..MTM..SAA198312-198410

main48131-1E340iEE80..LHD..3FC..GEN198410-198704

HARSH ROAD PACKAGE

main48131-1E350iEE80..LHD..3FC..GEN198410-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E350iEE80..LHD..MTM..GEN198403-198707

HARSH ROAD PACKAGE

main48131-1E350iEE80..RHD..3FC..GEN198312-198707

W/COOLER

main48131-1E400iAE82..LHD..GT198410-198704

main48131-1E420iAE82..3DS..RHD198410-198704

main48131-1E420iAE82..LHD..GT..GEN198505-198704

W/COOLER

main48131-1E430iAE82..3DS..RHD..GEN198505-198704

W/COOLER

main48131-1E480iAE82..GT..ARL198511-198807

main48131-1E480iAE82..RHD..GT..GEN198502-198704

NEW ZEALAND SPEC

main48131-1E490iAE82..RHD..GT..GEN198505-198704

W/COOLER,NEW ZEALAND SPEC

main48131-1E510iEE80..3FC..SAA198403-198412

W/COOLER,HARSH ROAD PACKAGE

sub48131-1E520

main48131-1E520iAE80..LHD..3FC198412-198707

W/COOLER,HARSH ROAD PACKAGE

main48131-1E540iAE82..LHD..3FC..GEN198403-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E560iCE80..LHD198403-198704

W/COOLER,HARSH ROAD PACKAGE

sub48131-2B760

48132SPRING, FRONT COIL, LH

main48131-1A620iCE80..RHD198305-198704

main48131-1A640iCE80..LHD198305-198704

main48131-1A660iAE8#..LHD..MTM..GEN198305-198312

main48131-1A680iAE8#..LHD..MTM..GEN198305-198312

W/COOLER

main48131-1A680iAE80..MTM..SAA198308-198312

main48131-1A700iAE80..3FC..SAA198305-198312

W/COOLER

sub48131-1E350

main48131-1A760iCE80..LHD198403-198704

W/COOLER

main48131-1A760iCE80..DX..GEN198403-198505

HARSH ROAD PACKAGE

main48131-1A840iEE80..RHD..MTM..GEN198505-198704

W/COOLER,NEW ZEALAND SPEC

main48131-1A840iEE80..RHD..MTM..GEN198505-198704

W/COOLER

main48131-1A840iAE8#,EE80..LHD..MTM..(DX,GL,STD)..EUG198305-198807

main48131-1A840iAE8#..RHD..3FC..GEN198311-198704

NEW ZEALAND SPEC

main48131-1A860iAE82,EE80..LHD..MTM..EUR198401-198704

W/COOLER

main48131-1A860iAE82,EE80..LHD..3FC..EUG198305-198505

main48131-1A860iAE82..RHD..5F..GL..GEN198403-198704

HARSH ROAD PACKAGE

main48131-1A880iEE80..LHD..MTM..EUG198403-198704

HARSH ROAD PACKAGE

main48131-1A880iAE82..RHD..5F..GL..GEN198401-198704

W/COOLER

main48131-1A880iEE80..LHD..3FC..EUG198505-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1A880iAE82..3FC..SDZ198305-198505

main48131-1E010iAE80,EE80..RHD..MTM..GEN198305-198704

main48131-1E110iAE82..RHD..5F..GL..GEN198305-198807

main48131-1E110iAE80..RHD..MTM..GEN198311-198704

NEW ZEALAND SPEC

main48131-1E110iEE80..RHD..3FC..GEN198505-198704

W/COOLER,NEW ZEALAND SPEC

main48131-1E130iAE82,EE80..LHD..MTM..EUG198403-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E130iAE82..LHD..3FC..GEN198403-198704

HARSH ROAD PACKAGE

main48131-1E150iCE80..LHD198403-198704

HARSH ROAD PACKAGE

main48131-1E300iAE80,EE80..LHD..3FC..GEN198403-198602

HARSH ROAD PACKAGE

sub48131-1E310

main48131-1E300iAE80,EE80..LHD..3FC..GEN198403-198602

W/COOLER,HARSH ROAD PACKAGE

sub48131-1E310

main48131-1E300iAE80,EE80..3FC..SAA198308-198602

W/COOLER

sub48131-1E310

main48131-1E310iEE80..RHD..3FC..GEN198602-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E310iEE80..LHD..3FC..GEN198602-198707

HARSH ROAD PACKAGE

main48131-1E310iEE80..4F..SAA198602-198707

W/COOLER

main48131-1E330iAE80,EE80..LHD..MTM..GEN198312-198704

main48131-1E330iEE80..RHD..MTM..GEN198505-198704

W/COOLER

main48131-1E340iEE80..RHD..3FC..GEN198312-198704

W/COOLER

main48131-1E340iAE80,EE80..MTM..SAA198312-198707

main48131-1E340iAE80,EE80..RHD..MTM..GEN198403-198704

HARSH ROAD PACKAGE

main48131-1E350iAE80,EE80..MTM..SAA198312-198707

W/COOLER

main48131-1E350iAE80,EE80..LHD..MTM..GEN198403-198704

HARSH ROAD PACKAGE

main48131-1E350iEE80..RHD..MTM..GEN198505-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E400iAE82..3DS..RHD198410-198704

main48131-1E420iAE82..3DS..RHD..GEN198505-198704

W/COOLER

main48131-1E420iAE82..LHD..GT198410-198704

main48131-1E430iAE82..LHD..GT..GEN198505-198704

W/COOLER

main48131-1E460iAE82..GT..ARL198511-198807

main48131-1E460iAE82..RHD..GT..GEN198502-198704

NEW ZEALAND SPEC

main48131-1E480iAE82..RHD..GT..GEN198505-198704

W/COOLER,NEW ZEALAND SPEC

main48131-1E510iAE80,EE80..LHD..3FC..GEN198403-198412

W/COOLER,HARSH ROAD PACKAGE

sub48131-1E520

main48131-1E510iEE80..MTM..SAA198410-198412

HARSH ROAD PACKAGE

sub48131-1E520

main48131-1E520iAE80,EE80..LHD..3FC..GEN198412-198707

W/COOLER,HARSH ROAD PACKAGE

main48131-1E520iEE80..3FC..SAA198412-198707

HARSH ROAD PACKAGE

main48131-1E540iEE80..LHD..3FC..EUG198403-198704

W/COOLER,HARSH ROAD PACKAGE

main48131-1E560iCE80..LHD198403-198704

W/COOLER,HARSH ROAD PACKAGE

sub48131-2B760

main48131-1E590iEE80..3FC..SAA198410-198707

W/COOLER,HARSH ROAD PACKAGE

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12050iAE8#,EE80..CS,CSX,DX,GL,S,STD,XL198305-198605

main48157-20030iCE80;AE82..GT..(EUR,GEN)198305-198605

main48157-20040iAE82..GT..ARL198507-198807

main48157-20050iAE82..4DS..4FC..ARL;AE82,EE80..DX,GL,SE,STD,XL198507-198807

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12010iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL198305-198807

main48158-12020iCE80198305-198807

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAE82..GT..SA198305-198807

sub48331-12120

main48331-20040iCE80198305-198807

sub48331-12130

48471SEAT, FRONT SPRING, UPPER

main48044-12080iAE82..GT..SA198305-198807

main48044-32010iAE82..GT..(ARL,EUR,GEN)198305-198807

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12330iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198505

sub48510-12420

main48510-12340iCE80198305-198403

sub48510-20162

main48510-12390iAE82..RHD..GT..GEN198502-198505

NEW ZEALAND SPEC

sub48510-12400

main48510-12400iAE82..3DS..GT198410-198505

main48510-12420iAE82,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198505-198707

sub48510-12410

main48510-12430iAE82,EE80..(GL,STD,XL)..GEN198505-198707

HARSH ROAD PACKAGE

sub48510-1A250

main48510-12440iCE80198505-198704

sub48510-20291

main48510-12450iCE80..LHD..EUG198505-198704

HARSH ROAD PACKAGE

sub48510-12451

main48510-12460iAE82..RHD..GT..GEN198505-198704

NEW ZEALAND SPEC

sub48510-12461

main48510-12460iAE82..GT..ARL198511-198807

sub48510-12461

main48510-12470iAE82..3DS..GT198505-198704

sub48510-12471

main48510-20162iCE80198403-198505

sub48510-12470

main48510-20240iCE80..GEN198403-198505

HARSH ROAD PACKAGE

sub48510-12450

main48510-20250iAE82..(DX,GL)..EUG;EE80..LHD..(EUR,SAA)198403-198505

HARSH ROAD PACKAGE

sub48510-12430

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12250iCE80198305-198704

main48511-12260iAE82..RHD..GT..GEN198502-198704

NEW ZEALAND SPEC

sub48511-12250

main48511-12260iAE82..3DS..GT198505-198704

sub48511-12250

main48511-12270iAE82..3DS..GT198410-198505

sub48511-20140

main48511-12290iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198707

main48511-12300iAE82,EE80..(GL,STD,XL)..GEN198410-198707

HARSH ROAD PACKAGE

main48511-20160iCE80..LHD..EUG198403-198704

HARSH ROAD PACKAGE

sub48511-20170

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12250iCE80198305-198704

main48511-12260iAE82..RHD..GT..GEN198502-198704

NEW ZEALAND SPEC

sub48511-12250

main48511-12260iAE82..3DS..GT198505-198704

sub48511-12250

main48511-12270iAE82..3DS..GT198410-198505

sub48511-20140

main48511-12290iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198707

main48511-12300iAE82,EE80..(GL,STD,XL)..GEN198410-198707

HARSH ROAD PACKAGE

main48511-20160iCE80..GEN198403-198704

HARSH ROAD PACKAGE

sub48511-20170

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12200iAE8#..(4DS,5D)..(DX,GL,STD)..SA198305-198505

sub48520-12290

main48520-12210iCE80198305-198403

sub48520-20162

main48520-12260iAE82..RHD..GT..GEN198502-198505

NEW ZEALAND SPEC

sub48520-12270

main48520-12270iAE82..3DS..GT198410-198505

main48520-12290iAE82,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198505-198707

sub48520-12280

main48520-12300iEE80..LHD..(3FC,4F)..(EUR,SAA);AE82,EE80..LHD..5F..(DX,GL)..EUG198505-198707

HARSH ROAD PACKAGE

sub48520-1A120

main48520-12310iCE80198505-198704

sub48520-20281

main48520-12320iCE80..LHD..EUG198505-198704

HARSH ROAD PACKAGE

sub48520-12321

main48520-12330iAE82..GT..ARL198511-198807

sub48520-12331

main48520-12330iAE82..RHD..GT..GEN198505-198704

NEW ZEALAND SPEC

sub48520-12331

main48520-12340iAE82..3DS..GT198505-198704

sub48520-12341

main48520-20162iCE80198403-198505

sub48520-12340

main48520-20230iCE80..LHD..EUG198403-198505

HARSH ROAD PACKAGE

sub48520-12320

main48520-20240iAE8#,EE80..(DX,GL,STD,XL)..GEN198403-198505

HARSH ROAD PACKAGE

sub48520-12300

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10080iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198505

main48550-12220iCE80198305-198403

main48550-12230iCE80198403-198505

main48550-20050iCE80..GEN198403-198505

HARSH ROAD PACKAGE

main48550-20070iAE82..(DX,GL)..EUG;EE80..LHD..(EUR,SAA)198403-198505

HARSH ROAD PACKAGE

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12050iAE82..(4DS,5D)..(DX,GL)..SA198305-198505

main48552-20050iCE80198305-198505

48568RING, SHOCK ABSORBER PISTON

main48568-12020iAE8#198305-198308

main48568-12021iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198308-198505

main48568-22020iCE80198305-198308

main48568-22021iCE80198308-198505

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iAE82..(4DS,5D)..(DX,GL)..SA198305-198505

main48022-14010iCE80198305-198505

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-16010iAE8#,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198502

main48579-14011iCE80198305-198505

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08054iAE8#,CE80,EE80..CS,CSX,DX,GL,S,SE,STD,XL198305-198608

main90179-08090iAE82..GT198410-198807

main90179-08090iAE82,CE80,EE80..(GL,STD,XL)..GEN198505-198608

HARSH ROAD PACKAGE

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-12151iAE82,CE80,EE80..(GL,STD,XL)..GEN198505-198707

HARSH ROAD PACKAGE

main48609-12151iAE82..GT198410-198807

main48609-20050iAE8#,CE80,EE80..CS,CSX,DX,GL,S,STD,XL198305-198501

sub48609-20060

main48609-20060iAE82,CE80..LHD..EUG;EE80..LHD..(EUR,SAA)198403-198501

HARSH ROAD PACKAGE

main48609-20060iAE8#,CE80,EE80..CS,CSX,DX,GL,S,SE,STD,XL198501-198807

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAE8#,CE80,EE80198305-198807

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE8#,CE80,EE80198305-198807

48684COVER, BEARING DUST

main48684-32010iAE8#,CE80,EE80198305-198807

48811BAR, STABILIZER, FRONT

main48811-12420iAE82,EE80..RHD..(GL,STD,XL)..GEN198405-198704

NEW ZEALAND SPEC

main48811-12420iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

main48811-12420iAE82..GT..(ARL,EUR,GEN)198410-198807

D=23

main48811-12440iCE80198305-198704

D=25.4

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14150iAE82..GT..SA198502-198804

main48815-14160iCE80198305-198704

main48815-24010iAE82,EE80..RHD..(GL,STD,XL)..GEN198405-198704

NEW ZEALAND SPEC

main48815-24010iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

main48815-24010iAE82..GT..(ARL,EUR,GEN)198410-198807

48817CUSHION, FRONT STABILIZER

main48817-30020iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

main48817-30020iAE8#..RHD..GEN198405-198704

NEW ZEALAND SPEC

main48817-30020iCE80;AE82..GT198305-198807

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE8#..RHD..GEN198405-198704

NEW ZEALAND SPEC

main90948-02032iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

main90948-02032iCE80;AE82..GT198305-198807

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE8#..RHD..GEN198405-198704

NEW ZEALAND SPEC

main90948-02015iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

main90948-02015iCE80;AE82..GT198305-198807

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030iAE8#..RHD..GEN198405-198704

NEW ZEALAND SPEC

main48819-20030iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

main48819-20030iCE80;AE82..GT198305-198807

48824BRACKET, STABILIZER, FRONT

main48824-20040iAE8#..RHD..GEN198405-198704

NEW ZEALAND SPEC

main48824-20040iCE80;AE82..GT198305-198807

main48824-20040iEE80..4DS..RHD..5F..GL..GEN198505-198704

INDONESIA SPEC

9095001269

main90950-01269

9161160822

main91611-60822

9418210800

main94182-10800

36 parts on this diagram · 1 diagram in section
