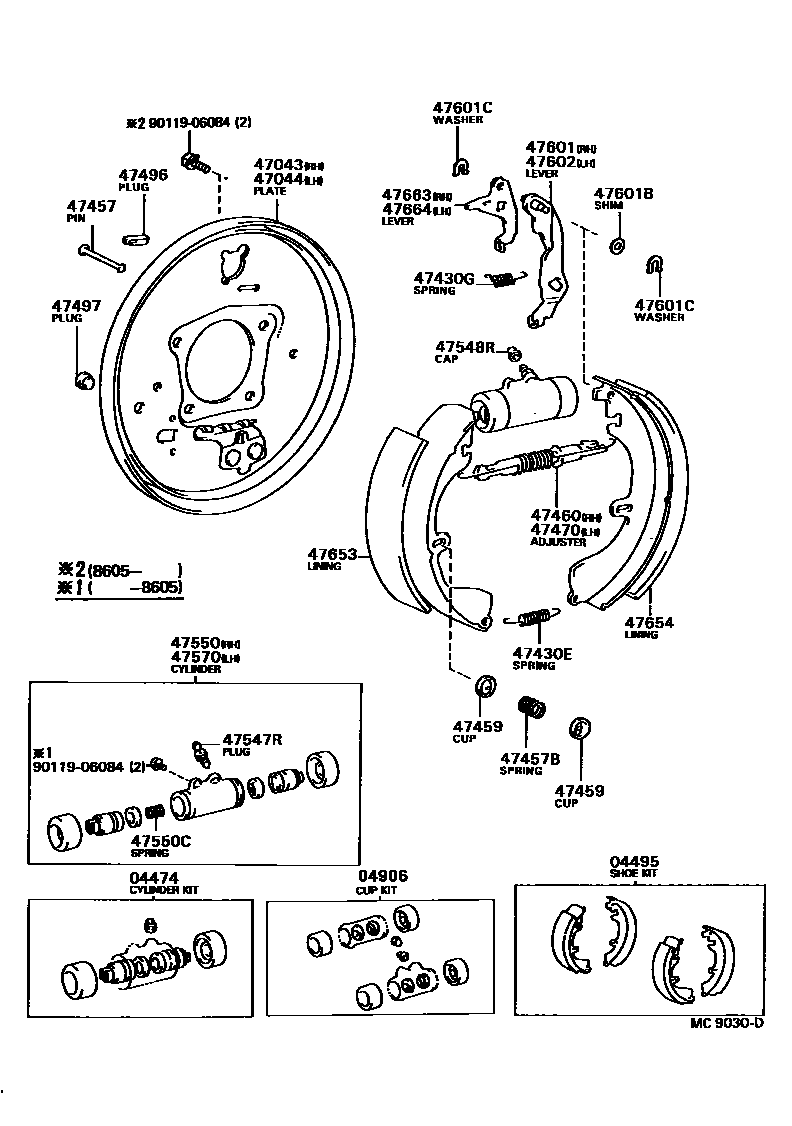

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAE82,EE80..SA198305-198804

WHEEL CYLINDER ID=19.05

sub04474-63020

main04474-16020iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

WHEEL CYLINDER ID=17.46

04495SHOE KIT, REAR BRAKE

main04495-12080iAE8#,CE80198305-198408

sub04495-12081

main04495-12081iAE8#,CE80,EE80..DX,GL,STD,XL198408-198804

sub04495-12082

main04495-12090iAE82..4DS..4FC..ARL;AE82,CE80,EE80..DX,GL,SE,STD,XL198505-198707

sub04495-12091

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAE8#,CE80,EE80..(DX,GL,STD)..(EUR,SA)198305-198804

WHEEL CYLINDER ID=19.05

main04906-16020iAE82,CE80,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198707

WHEEL CYLINDER ID=17.46

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAE82..GT..SA198305-198804

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

sub47061-20020

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

sub47062-20020

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47492-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198807

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iAE82,CE80,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198605-198707

sub47550-20120

main47550-19155iAE82,CE80,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198605

ID=17.46

sub47550-16030

main47550-32010iAE82,EE80..SA198605-198804

sub47550-20130

main47550-39285iAE82..GT..SA198305-198605

ID=19.05

sub47550-32010

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iAE82,CE80,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198605-198707

sub47570-20030

main47570-19035iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198605

ID=17.46

sub47570-16010

main47570-19035iAE82..GT..SA198411-198505

ID=19.05

sub47570-16010

main47570-32010iAE82,EE80..SA198605-198804

ID=19.05

sub47570-20040

main47570-39115iAE8#,CE80,EE80..(DX,GL,STD)..(EUR,SA)198305-198605

ID=19.05

sub47570-32010

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

T=0.3,T=0.3

main90564-08151iAE82..GT..SA198305-198804

T=0.6,T=0.6

main90564-08152iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

T=0.9,T=0.9

main90564-08172iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

T=0.2,T=0.2

main90564-08173iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

T=0.4,T=0.4

main90564-08174iAE82..GT..SA198305-198804

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-12080iAE82..4DS..4FC..ARL;AE82,CE80,EE80..DX,GL,SE,STD,XL198505-198707

main47651-16030iAE8#,CE80198305-198408

main47651-16031iAE82,EE80..SA198408-198804

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-12080iAE82..GT..SA198505-198707

main47651-16030iAE8#,CE80198305-198408

main47651-16031iAE82..GT..SA198408-198804

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-32010iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
