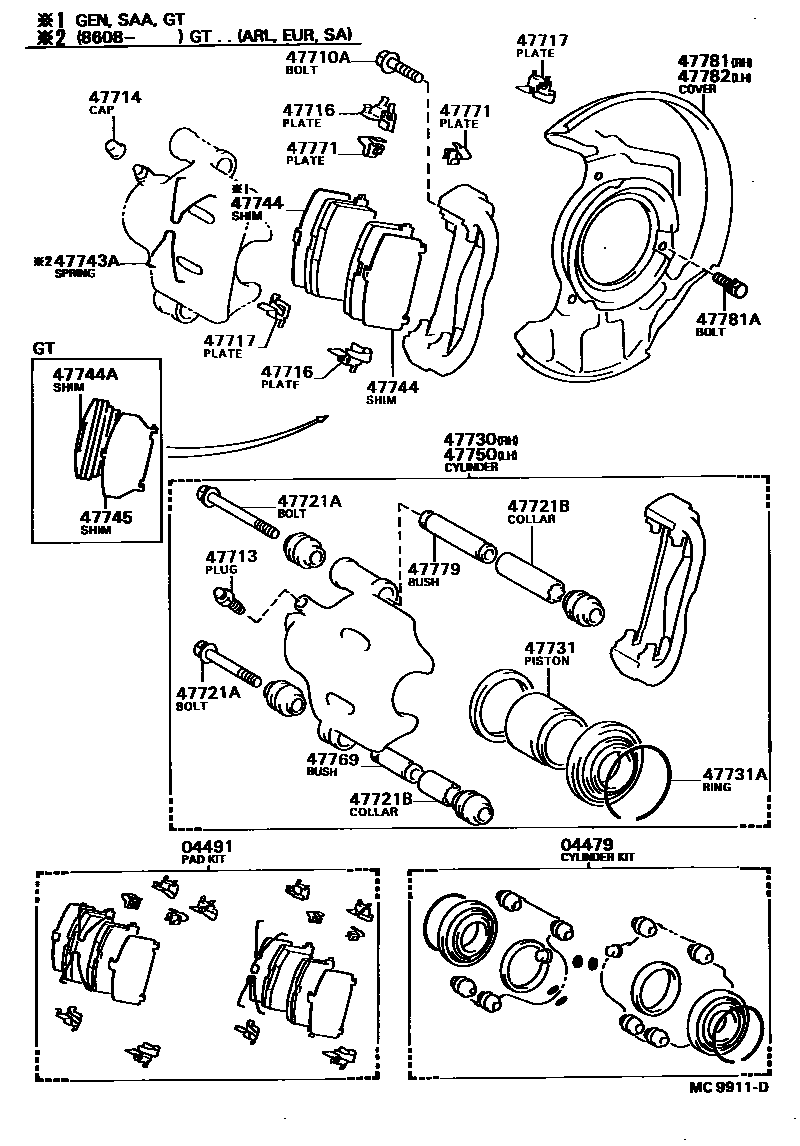

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12090iAE8#,CE80,EE80..(DX,GL,STD)..(EUR,SA)198305-198501

main04479-12091iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)198501-198804

main04479-16020iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198501

main04479-16021iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198501-198707

main04479-32010iAE82..GT198410-198501

main04479-32011iAE82..GT198501-198807

04491PAD KIT, DISC BRAKE, FRONT

main04491-12170iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

main04491-12230iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)198305-198804

main04491-12250iAE82..GT..(ARL,EUR,SA)198410-198608

main04491-12251iAE82..GT..(ARL,EUR,SA)198608-198807

main04491-17030iAE82..GT..GEN198410-198704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE8#,CE80,EE80198305-198807

*12-1.25PX25.8-19.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE8#,CE80,EE80198305-198807

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010×4iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010×4iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004×2iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004×2iAE82..GT..ARL198511-198807

L=12

main90387-15005×2iAE82..GT..ARL198511-198807

L=22

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12170iAE82..GT198410-198608

main47730-12171iAE82..GT198608-198807

main47730-12200iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

main47730-12210iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)198305-198804

47731PISTON, FRONT DISC BRAKE

main47731-12090×2iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)198305-198804

main47731-16020×2iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

main47731-20070iAE82..GT198410-198807

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32010×4iAE82..GT..(ARL,EUR,SA)198608-198807

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×2iAE82..GT..ARL198511-198807

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32010×2iAE82..GT198410-198807

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32010×2iAE82..GT198410-198807

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12170iAE82..GT198410-198608

main47750-12171iAE82..GT198608-198807

main47750-12200iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

main47750-12210iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)198305-198804

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE82,EE80..SA,SAA198705-198804

main47769-16010×2iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198705

main47769-32010×2iAE82..GT198410-198807

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010×4iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL198305-198804

main47779-32010×2iAE82..GT198410-198807

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20140iAE8#,CE80,EE80198305-198807

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iAE8#,CE80,EE80198305-198807

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20140iAE8#,CE80,EE80198305-198807

23 parts on this diagram · 2 diagrams in section
