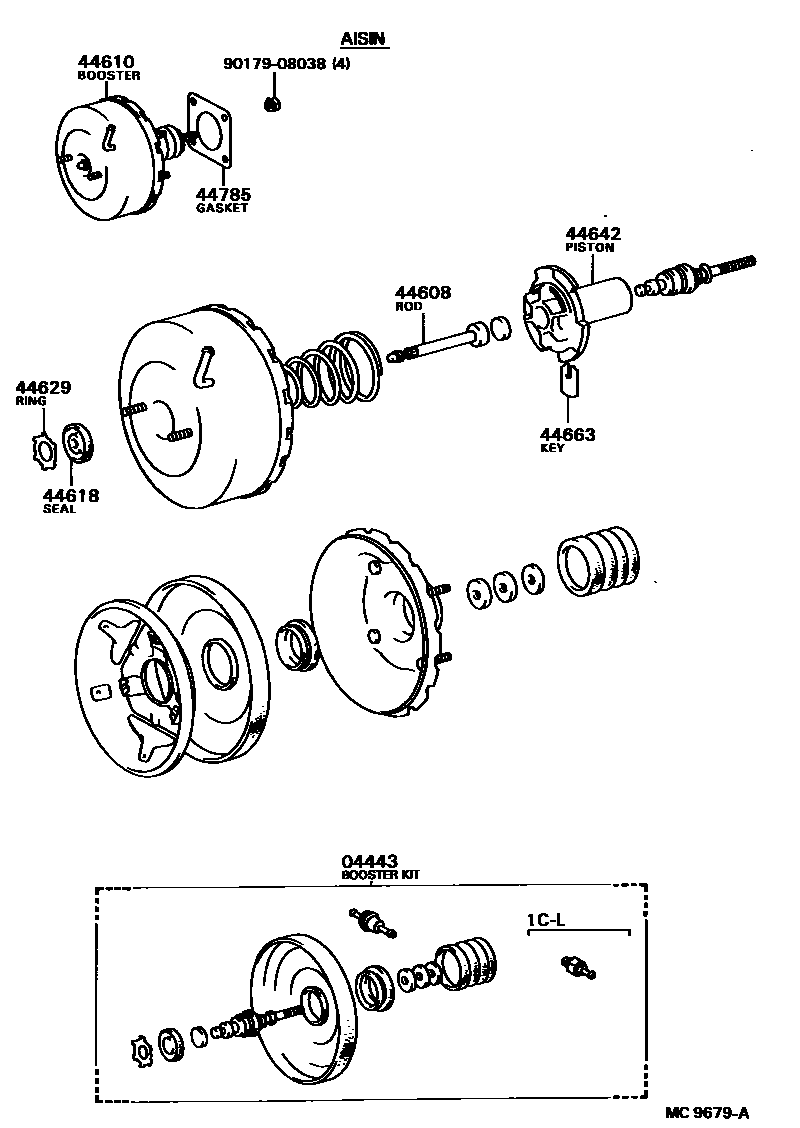

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-12300iAE8#,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

main04443-12310iCE80..GEN198305-198704

main04443-12340iAE8#,EE80..(DX,GL,SE,STD)..(EUR,SA)198305-198804

main04443-12350iCE80..EUG198305-198704

main04443-12440iAE82..GT198410-198807

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

44610BOOSTER ASSY, BRAKE

main44610-12510iAE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN198305-198704

main44610-12520iAE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR198305-198704

main44610-12530iAE8#,CE80,EE80..RHD..(DX,GL,SE,STD)..(EUR,SA)198305-198804

main44610-12540iAE8#,CE80,EE80..LHD..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

main44610-12580iAE82..RHD..GT198410-198807

main44610-12590iAE82..LHD..GT198410-198704

44618SEAL, BOOSTER BODY

main44621-28120iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

44629RING, CIRCULAR INTERNAL

main44628-28120iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

44642PISTON, BRAKE BOOSTER

main44642-12520iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)198305-198804

main44642-16050iAE8#,CE80,EE80..GEN,SAA198305-198707

44663KEY, VALVE STOPPER

main44635-28120iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

44785GASKET, BRAKE BOOSTER

main44785-32010iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

9017908038

main90179-08038

9 parts on this diagram · 4 diagrams in section
