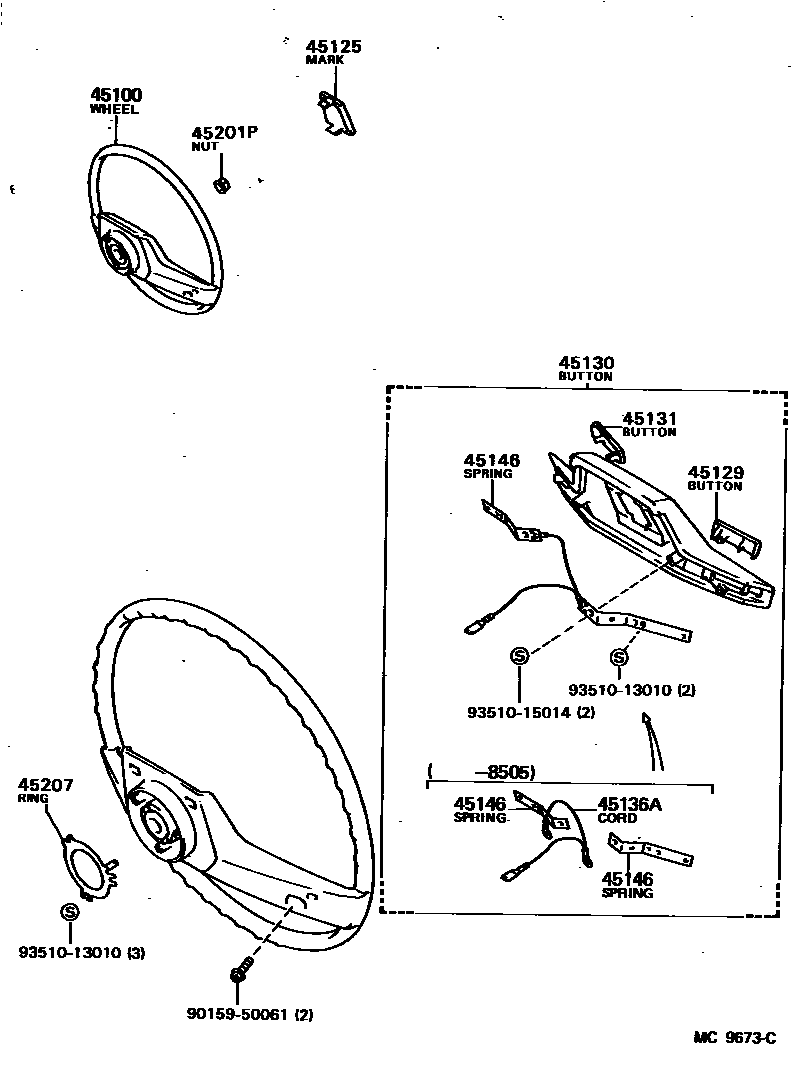

STEERING WHEEL

0001 1 0003 1 0006 1(8512-8606)SR PACKAGE

45100WHEEL ASSY, STEERING

main45100-12300-03iEE80..(3DS,5DS)..LHD..5F..DX..(EUG,FRG)198512-198606

GRAY,SR PACKAGE,GRAY,TRIM1#

main45100-12300-06iEE80..(3DS,5DS)..LHD..5F..DX..(EUG,FRG)198512-198606

BROWN,SR PACKAGE,BROWN,TRIM4#

main45100-12380-01iAE82..GT..ARL198511-198807

BLACK,BLACK,TRIM1#,4#

main45100-12390-02iAE80,CE80..(DX,STD,XL)..GEN198305-198408

RESIN(HARD),MAROON,RED/MAROON,TRIM3#

main45100-12390-03iAE8#,CE80,EE80..(DX,STD,XL)..GEN198305-198704

RESIN(HARD),GRAY,GRAY,TRIM1#

main45100-12390-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..GEN198305-198605

RESIN(HARD),BLUE,BLUE,TRIM8#

main45100-12390-06iAE8#,CE80,EE80..(DX,STD,XL)..GEN198408-198704

RESIN(HARD),BROWN,BROWN,TRIM4#

main45100-12390-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..GEN198605-198707

RESIN(HARD),BLUE,BLUE,TRIM8#

main45100-12400-02iAE8#,CE80..(DX,GL,XL)..(GEN,SAA)198305-198408

URETHANE,MAROON,RED/MAROON,TRIM3#

main45100-12400-03iAE82..GL..SA198402-198502

URETHANE,GRAY,GRAY,TRIM1#

main45100-12400-04iAE82..GL..SA198402-198502

URETHANE,BLUE,BLUE,TRIM8#

main45100-12400-06iAE82..GL..SA198408-198502

URETHANE,BROWN,BROWN,TRIM4#

main45100-12400-14iAE82,EE80..(4DS,5D)..(DX,GL,SE,STD)..SA; AE82..4DS..4FC..ARL;AE82,CE80,EE80..(4DS,5D)..(GL,XL)198605-198804

URETHANE,BLUE,BLUE,TRIM8#

main45100-12410-02iAE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198408

RESIN(SOFT),MAROON,RED/MAROON,TRIM3#

main45100-12410-03iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198502

RESIN(SOFT),GRAY,GRAY,TRIM1#

main45100-12410-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SAA)198502-198505

RESIN(SOFT),BLUE,BLUE,TRIM8#

main45100-12410-06iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198408-198502

RESIN(SOFT),BROWN,BROWN,TRIM4#

main45100-12420-02iAE8#,CE80..EUR198305-198408

URETHANE,MAROON,RED/MAROON,TRIM3#

main45100-12420-03iAE8#,CE80,EE80..EUR198305-198704

URETHANE,GRAY,GRAY,TRIM1#

main45100-12420-04iAE8#,CE80,EE80..(4DS,5D)..EUR198305-198605

URETHANE,BLUE,BLUE,TRIM8#

main45100-12420-06iAE8#,CE80,EE80..EUR198408-198704

URETHANE,BROWN,BROWN,TRIM4#

main45100-12420-14iAE82,CE80,EE80..(4DS,5D)..EUR198605-198704

URETHANE,BLUE,BLUE,TRIM8#

main45100-12450iAE82..GT..(EUR,GEN,SA)198410-198804

main45100-12480-03iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),GRAY,GRAY,TRIM1#

main45100-12480-04iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198505-198605

RESIN(SOFT),BLUE,BLUE,TRIM8#

main45100-12480-06iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),BROWN,BROWN,TRIM4#

main45100-12480-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198605-198707

RESIN(SOFT),BLUE,BLUE,TRIM8#

45125MARK, STEERING WHEEL PAD

main45125-12310-01iAE82..GT..(EUR,GEN,SA)198410-198804

BLACK,BLACK,TRIM1#,4#

main45125-12310-03iEE80..(3DS,5DS)..LHD..5F..DX..(EUG,FRG)198512-198606

GRAY,SR PACKAGE,GRAY,TRIM1#

main45125-12310-06iEE80..(3DS,5DS)..LHD..5F..DX..(EUG,FRG)198512-198606

BROWN,SR PACKAGE,BROWN,TRIM4#

main45125-12330-02iAE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198408

RESIN,MAROON,RED/MAROON,TRIM3#

main45125-12330-03iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198502

RESIN,GRAY,GRAY,TRIM1#

main45125-12330-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SAA)198502-198505

RESIN,BLUE,BLUE,TRIM8#

main45125-12330-06iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198408-198502

RESIN,BROWN,BROWN,TRIM4#

main45125-12360iAE82,EE80..(DX,GL,SE,STD)..SA198502-198804

main45125-12440iAE82,CE80,EE80..(STD,XL)..GEN198505-198704

RESIN(HARD)

main45125-12460iAE82..GT..ARL198511-198807

main45125-12470iAE82,CE80,EE80..(STD,XL)..GEN198505-198704

RESIN(SOFT)

45129BUTTON, HORN, NO.2

main45129-12080-02iAE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198408

RESIN,MAROON,RED/MAROON,TRIM3#

main45129-12080-03iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198502

RESIN,GRAY,GRAY,TRIM1#

main45129-12080-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SAA)198502-198505

RESIN,BLUE,BLUE,TRIM8#

main45129-12080-06iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198408-198502

RESIN,BROWN,BROWN,TRIM4#

main45129-12080-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..GEN198605-198704

RESIN(HARD),BLUE,BLUE,TRIM8#

main45129-12090-02iAE82..GL..SA198402-198408

URETHANE,MAROON,RED/MAROON,TRIM3#

main45129-12090-03iAE82..GL..SA198402-198502

URETHANE,GRAY,GRAY,TRIM1#

main45129-12090-04iAE82,EE80..(DX,GL,STD)..SA198502-198605

URETHANE,BLUE,BLUE,TRIM8#

main45129-12090-06iAE8#,CE80,EE80..(DX,GL,XL)..(GEN,SAA)198408-198704

URETHANE,BROWN,BROWN,TRIM4#

main45129-12090-14iAE82,EE80..(DX,GL,SE,STD)..SA198605-198804

URETHANE,BLUE,BLUE,TRIM8#

main45129-12130-02iAE8#,CE80..EUR198305-198408

URETHANE,MAROON,RED/MAROON,TRIM3#

main45129-12130-03iAE8#,CE80,EE80..EUR198305-198704

URETHANE,GRAY,GRAY,TRIM1#

main45129-12130-04iAE8#,CE80,EE80..(4DS,5D)..EUR198305-198605

URETHANE,BLUE,BLUE,TRIM8#

main45129-12130-06iAE8#,CE80,EE80..EUR198408-198704

URETHANE,BROWN,BROWN,TRIM4#

main45129-12130-14iAE82,CE80,EE80..(4DS,5D)..EUR198605-198704

URETHANE,BLUE,BLUE,TRIM8#

main45129-12140-03iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),GRAY,GRAY,TRIM1#

main45129-12140-04iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198505-198605

RESIN(SOFT),BLUE,BLUE,TRIM8#

main45129-12140-06iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),BROWN,BROWN,TRIM4#

main45129-12140-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198605-198707

RESIN(SOFT),BLUE,BLUE,TRIM8#

45130BUTTON ASSY, HORN

main45130-12240-02iAE80,CE80..(DX,STD,XL)..GEN198305-198408

RESIN(HARD),MAROON,RED/MAROON,TRIM3#

main45130-12240-03iAE8#,CE80,EE80..(DX,STD,XL)..GEN198305-198704

RESIN(HARD),GRAY,GRAY,TRIM1#

main45130-12240-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..GEN198305-198605

RESIN(HARD),BLUE,BLUE,TRIM8#

main45130-12240-06iAE8#,CE80,EE80..(DX,STD,XL)..GEN198408-198704

RESIN(HARD),BROWN,BROWN,TRIM4#

main45130-12240-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..GEN198605-198707

RESIN(HARD),BLUE,BLUE,TRIM8#

main45130-12250-02iAE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198408

RESIN(SOFT),MAROON,RED/MAROON,TRIM3#

main45130-12250-03iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198502

RESIN(SOFT),GRAY,GRAY,TRIM1#

main45130-12250-04iAE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SAA)198502-198505

RESIN(SOFT),BLUE,BLUE,TRIM8#

main45130-12250-06iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SAA)198502-198505

RESIN(SOFT),BROWN,BROWN,TRIM4#

main45130-12320-03iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),GRAY,GRAY,TRIM1#

main45130-12320-04iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198505-198605

RESIN(SOFT),BLUE,BLUE,TRIM8#

main45130-12320-06iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),BROWN,BROWN,TRIM4#

main45130-12320-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198605-198707

RESIN(SOFT),BLUE,BLUE,TRIM8#

45131BUTTON, HORN, NO.1

main45131-12180-02iAE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198408

RESIN,MAROON,RED/MAROON,TRIM3#

main45131-12180-03iAE82,CE80,EE80..(STD,XL)..GEN198505-198704

RESIN(HARD),GRAY,GRAY,TRIM1#

main45131-12180-04iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..GEN198505-198605

RESIN(HARD),BLUE,BLUE,TRIM8#

main45131-12180-06iAE82,CE80,EE80..(STD,XL)..GEN198505-198704

RESIN(HARD),BROWN,BROWN,TRIM4#

main45131-12190-02iAE82..GL..SA198402-198408

URETHANE,MAROON,RED/MAROON,TRIM3#

main45131-12190-03iAE82..GL..SA198402-198502

URETHANE,GRAY,GRAY,TRIM1#

main45131-12190-04iAE82..GL..SA198402-198502

URETHANE,BLUE,BLUE,TRIM8#

main45131-12190-06iAE8#,CE80,EE80..(DX,GL,XL)..(GEN,SAA)198408-198707

URETHANE,BROWN,BROWN,TRIM4#

main45131-12190-14iAE82,EE80..(4DS,5D)..(DX,GL,SE,STD)..SA198605-198804

URETHANE,BLUE,BLUE,TRIM8#

main45131-12230-02iAE8#,CE80..EUR198305-198408

URETHANE,MAROON,RED/MAROON,TRIM3#

main45131-12230-03iAE8#,CE80,EE80..EUR198305-198704

URETHANE,GRAY,GRAY,TRIM1#

main45131-12230-04iAE8#,CE80,EE80..(4DS,5D)..EUR198305-198605

URETHANE,BLUE,BLUE,TRIM8#

main45131-12230-06iAE8#,CE80,EE80..EUR198408-198704

URETHAN,BROWN,BROWN,TRIM4#

main45131-12230-14iAE82,CE80,EE80..(4DS,5D)..EUR198605-198704

URETHANE,BLUE,BLUE,TRIM8#

main45131-12240-03iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),GRAY,GRAY,TRIM1#

main45131-12240-04iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198505-198605

RESIN(SOFT),BLUE,BLUE,TRIM8#

main45131-12240-06iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT),BROWN,BROWN,TRIM4#

main45131-12240-14iAE82,CE80,EE80..(4DS,5D)..(STD,XL)..(GEN,SAA)198605-198707

RESIN(SOFT),BLUE,BLUE,TRIM8#

45136PLATE, HORN BUTTON CONTACT

main45136-12110iAE8#,CE80,EE80..EUR198305-198704

main45136-12120iEE80..(3DS,5DS)..LHD..5F..DX..(EUG,FRG)198512-198606

SR PACKAGE

45136ACORD(FOR HORN CONTACT RING)

main90945-02058iAE82,CE80,EE80..(STD,XL)..GEN198505-198704

RESIN(HARD)

45146SPRING, HORN BUTTON CONTACT

main45146-12090iAE82..GL..SA198402-198502

URETHANE

main45146-12100×2iAE82,CE80,EE80..(STD,XL)..GEN198505-198704

RESIN(HARD)

main45146-12110×2iAE82,CE80,EE80..(STD,XL)..(GEN,SAA)198505-198707

RESIN(SOFT)

45201PNUT, STEERING WHEEL SET

main90179-12086iAE8#,CE80,EE80198305-198807

45207RING, HORN CONTACT

main45176-14050iAE82..GT198410-198807

main45176-20030iAE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA)198305-198502

RESIN

9015950061

main90159-50061

9351013010

main93510-13010

9351015014

main93510-15014

13 parts on this diagram · 3 diagrams in section
