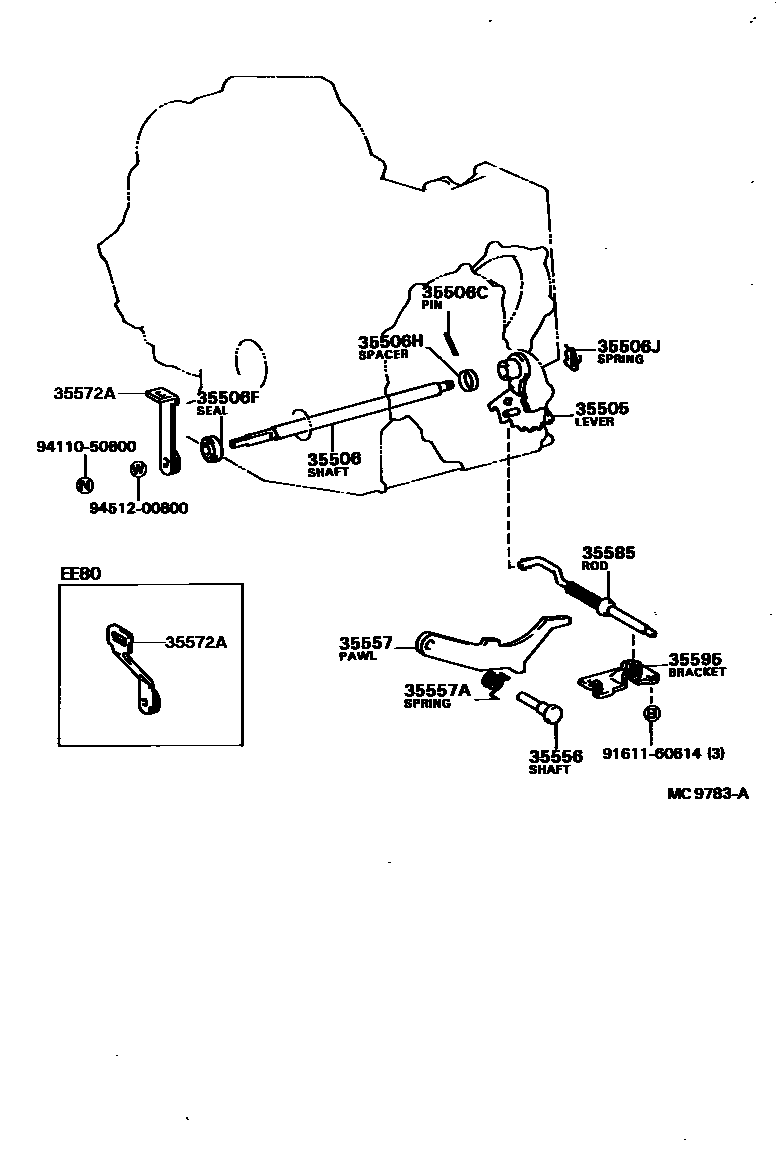

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12020iAE82..4FC198402-198801

main35505-12030iAE82..4FC198801-198807

main35505-20010iAE8#..3FC198712-198807

main35505-32011iAE8#,EE80..3FC198305-198712

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-12020iAE82..4FC198402-198807

main35561-32010iAE8#,EE80..3FC198305-198807

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iAE8#,EE80..ATM198305-198807

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAE8#,EE80..ATM198305-198807

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iAE8#,EE80..ATM198305-198807

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iAE8#,EE80..3FC198305-198807

main90524-11001iAE82..4FC198402-198807

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAE82..4FC198402-198807

main35556-32010iAE8#,EE80..3FC198305-198807

35557PAWL, PARKING LOCK

main35557-12020iAE82..4FC198402-198807

main35557-32010iAE8#..3FC198305-198404

main35557-32020iAE8#,EE80..3FC198404-198807

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAE82..4FC198412-198807

main90508-26047iAE8#,EE80..3FC198305-198807

main90508-26058iAE82..4FC198402-198412

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12050iAE8#..3FC198305-198807

main35572-12060iAE82..4FC198402-198807

main35572-12070iEE80..3FC198410-198807

35585ROD, PARKING LOCK

main35501-12010iAE82..4FC198402-198807

main35501-32010iAE8#,EE80..3FC198305-198807

35595BRACKET, PARKING LOCK PAWL

main35595-32010iAE8#,EE80..3FC198305-198807

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
