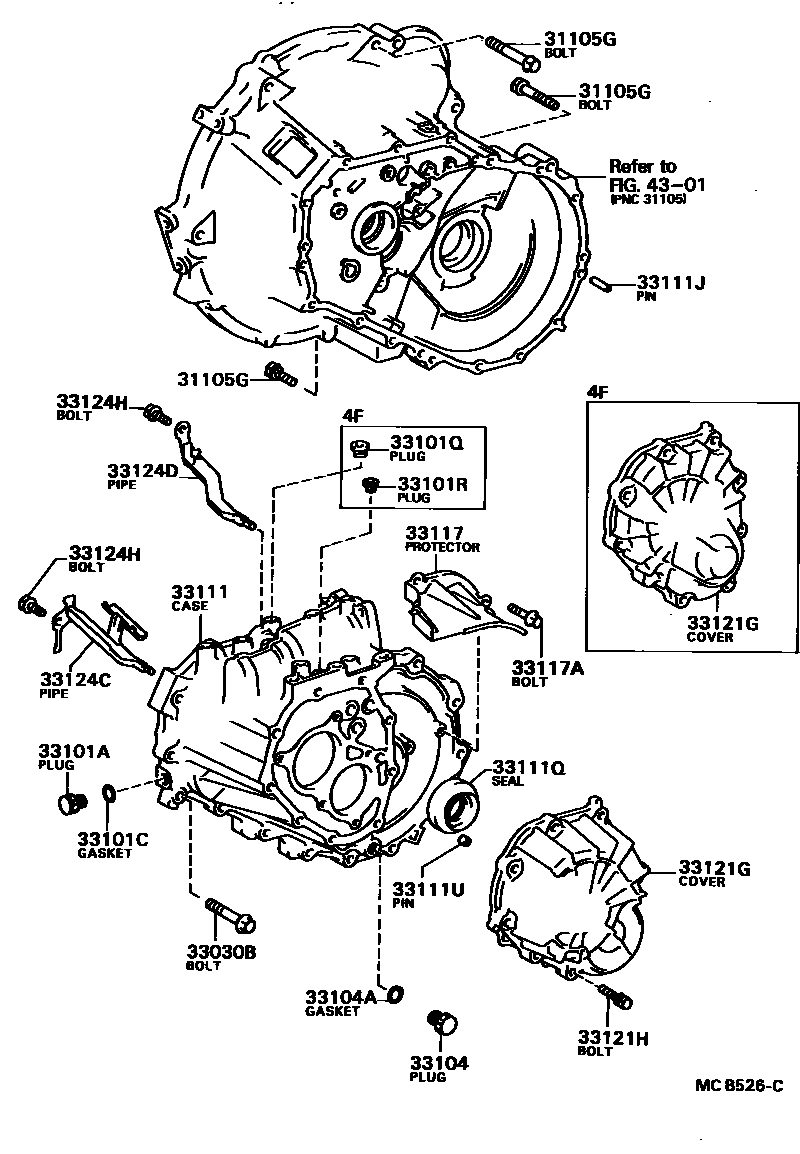

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE80198408-198704

*8-1.25PX18-15,*8-1.25PX18-15

main90105-10077iAE8#,CE80..MTM198305-198807

*10-1.25PX43-26,*10-1.25PX43-26

main90105-10097iEE80..MTM198410-198804

*10-1.25PX60-22,*10-1.25PX60-22

main90119-12042iAE8#..MTM198305-198807

*12-1.25PX75-30,*12-1.25PX75-30

main90119-12168×3iAE8#,CE80..MTM198305-198807

*12-1.25PX55-30,*12-1.25PX55-30

main91611-61025iEE80..MTM198704-198804

*10-1.25PX25-25,*10-1.25PX25-19.8

main91619-61260×3iEE80..MTM198410-198804

*12-1.25PX60-30,*12-1.25PX60-30

main91621-60614×3iEE80..MTM198410-198804

*6-1.00PX14-14,*6-1.0PX14-10.4

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iCE80198305-198704

*8-1.25PX45-27.5

main90105-08064×16iAE8#,EE80..MTM198305-198807

*8-1.25PX51-28

main90105-08086×3iEE80..MTM198702-198804

*8-1.25PX45-27.5,*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCE80198305-198704

main90341-18006iAE8#,EE80..MTM198305-198807

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18007iAE8#,CE80..MTM198305-198408

main90430-18008iAE8#,CE80,EE80..MTM198408-198807

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iAE8#,EE80..4F198305-198807

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90341-10065iAE8#,EE80..4F198305-198807

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE8#,EE80..MTM198305-198502

main90341-18057iCE80198305-198502

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iAE8#,CE80..MTM198305-198408

main90430-18008iAE8#,CE80,EE80..MTM198408-198807

33111CASE, MANUAL TRANSMISSION

main33111-12170iAE8#,EE80..MTM198305-198608

main33111-16040iAE8#,EE80..MTM198608-198807

main33111-32010iCE80198305-198309

main33111-32011iCE80198309-198404

main33111-32012iCE80198404-198507

main33111-32013iCE80198507-198604

main33111-32014iCE80198604-198704

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iAE8#,CE80,EE80..MTM198305-198807

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE8#,EE80..MTM198305-198807

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAE8#,EE80..MTM198305-198807

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE8#,EE80..MTM..(CS,CSX,DX,GL,S,STD,XL)198305-198807

main33117-17010iAE82..GT198410-198807

main33117-32010iCE80198305-198408

main33117-32011iCE80198408-198704

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE8#,CE80,EE80..MTM198305-198807

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12010iAE8#,EE80..4F198305-198807

main33102-12020iAE8#,EE80..5F198305-198807

main33102-32010iCE80198305-198404

main33102-32011iCE80198404-198704

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08057×8iCE80198305-198404

main90105-08089×8iCE80198404-198704

main91611-60835×9iAE8#,EE80..MTM198305-198807

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE8#,EE80..MTM198305-198807

main33124-32010iCE80198305-198510

main33124-32011iCE80198510-198704

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE8#,EE80..MTM198305-198807

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60812×2iAE8#,EE80..MTM198305-198411

main91611-60820×2iAE8#,EE80..MTM198411-198807

main91651-60618iCE80198305-198704

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

20 parts on this diagram · 3 diagrams in section
