TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

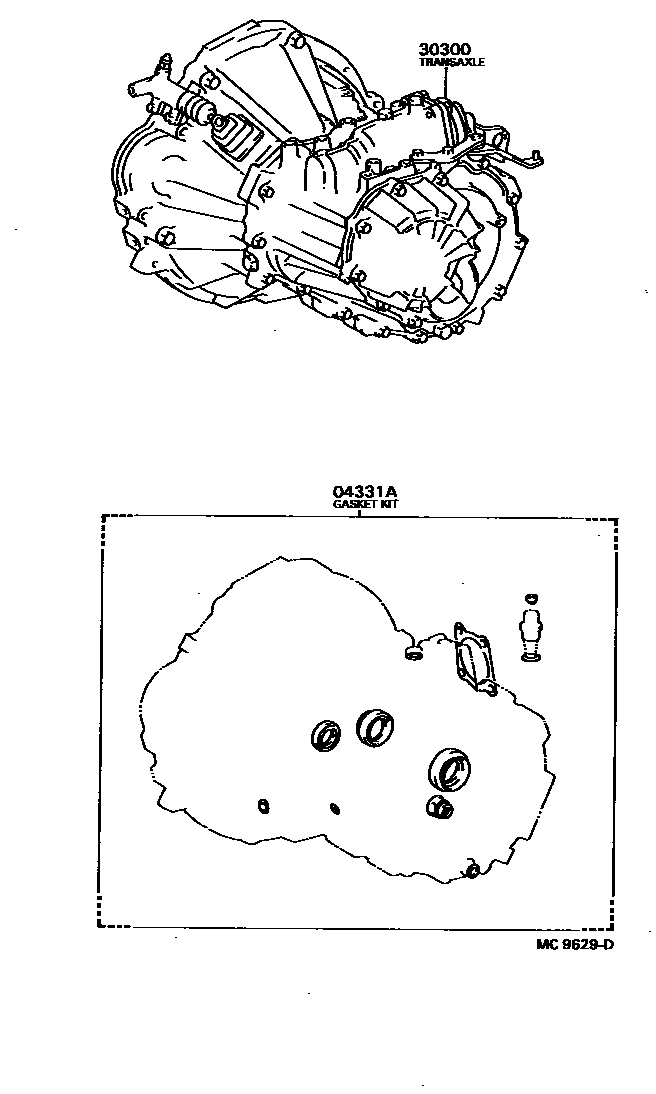

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080i198305-198807

main04331-32010i198305-198704

30300TRANSAXLE ASSY, MANUAL

main30300-12010i198305-198505

main30300-12040i198305-198405

*AXC=-572,*FGR=69:17

main30300-12070i198305-198405

main30300-12080i198504-198505

FRG SPEC

main30300-12100i198305-198704

*AXC=-572,*FGR=69:17

main30300-12102i198704-198804

*AXC=-572,*FGR=69:17

main30300-12130i198305-198505

main30300-12140i198405-198502

*AXC=-642,*FGR=69:16

main30300-12150i198405-198502

*AXC=-642,*FGR=69:16

main30300-12160i198411-198704

main30300-12162i198704-198807

main30300-12170i198411-198511

main30300-12180i198410-198512

main30300-12181i198512-198704

main30300-12182i198704-198804

main30300-12210i198410-198704

main30300-12212i198704-198804

main30300-12220i198410-198512

main30300-12221i198512-198704

main30300-12222i198704-198804

main30300-12240i198411-198511

main30300-12280i198505-198607

main30300-12290i198505-198704

main30300-12300i198511-198704

main30300-12302i198704-198807

main30300-12310i198511-198704

main30300-12312i198704-198807

main30300-12320i198511-198704

main30300-12322i198704-198807

main30300-12340i198607-198704

main30300-12560i198611-198704

INDONESIA SPEC

main30300-12561i198704-198704

INDONESIA SPEC

main30300-20130i198505-198607

main30300-20290i198607-198704

2 parts on this diagram · 2 diagrams in section
