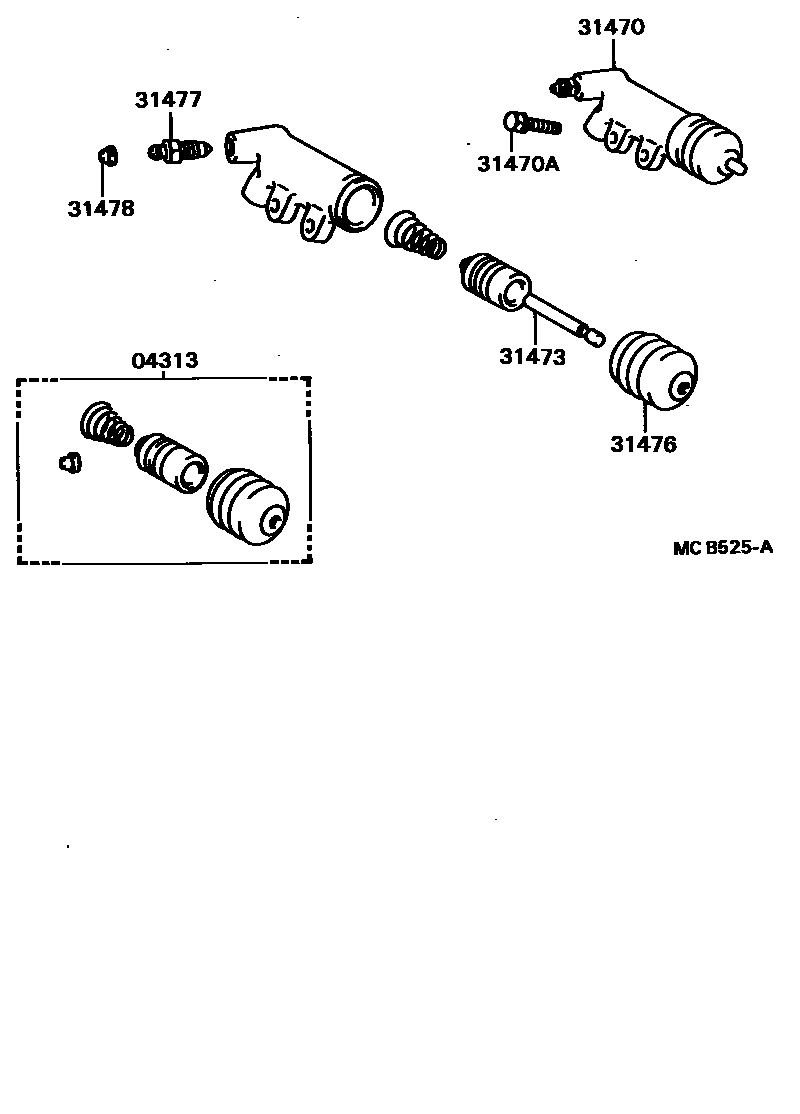

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12010iAE8#..MTM..(EUR,GEN,SA,SAA)198305-198804

main04313-22020iCE80198405-198804

sub04313-12030

main04313-30120iEE80..MTM198410-198512

sub04313-26020

main04313-32010iCE80198305-198405

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10010iEE80..MTM198512-198804

sub31470-10011

main31470-12040iAE8#..MTM198305-198410

sub31470-12041

sub91611-40820

main31470-12041iAE8#..MTM..(EUR,GEN,SA)198410-198804

sub31470-12042

main31470-12060iEE80..MTM198410-198512

sub31470-10040

main31470-32010iCE80198305-198405

sub31470-32020

main31470-32020iCE80198405-198704

sub31470-32021

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE8#,EE80..MTM..(EUR,GEN,SA,SAA)198409-198804

*8-1.25PX22-17.1

main91611-60825iCE80;AE8#..MTM..ARL198305-198807

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)198305-198804

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)198305-198804

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCE80,EE80..MTM198305-198804

main47547-60020iAE8#..MTM..(EUR,GEN,SA,SAA)198305-198804

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE8#,CE80,EE80..MTM198305-198807

7 parts on this diagram · 3 diagrams in section
