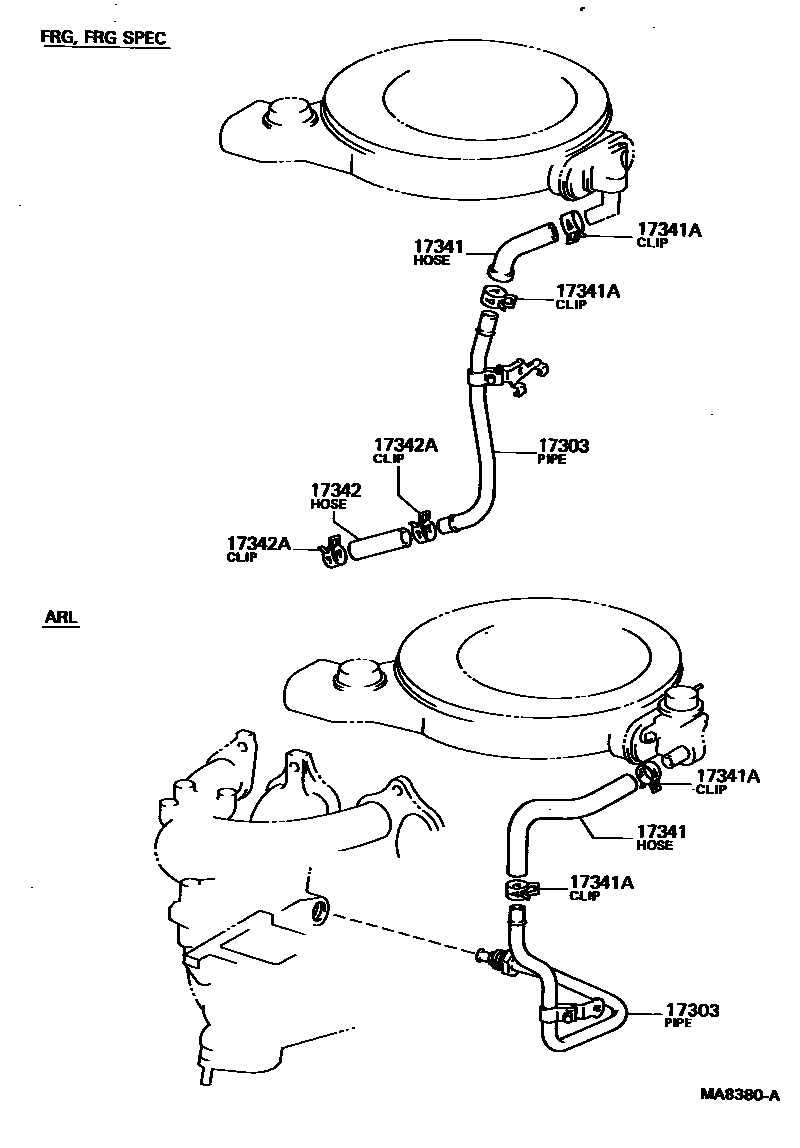

MANIFOLD AIR INJECTION SYSTEM

0001 1(8504-8505)FRG SPEC 0004 1

17303PIPE SUB-ASSY, AIR

main17303-16070i4ALC..AE82..FRG198508-198704

main17303-16070i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main17306-16010i2ALC,4ALC..AE8#..ARL198511-198807

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11010i2ELC..EE80..FRG198605-198704

sub17341-11011

main17341-16040i4ALC..AE82..FRG198508-198704

main17341-16040i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main17341-16051i2ALC,4ALC..AE8#..ARL198511-198807

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-23003i2ALC,4ALC..AE8#..ARL198511-198807

sub96134-42300

main90467-26002i2ELC..EE80..FRG198605-198704

sub96134-52600

main90467-31002i4ALC..AE82..FRG198508-198704

main90467-31002i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main90445-36001i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90445-36001i4ALC..AE82..FRG198508-198704

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-31002i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90467-31002i4ALC..AE82..FRG198508-198704

5 parts on this diagram · 2 diagrams in section
