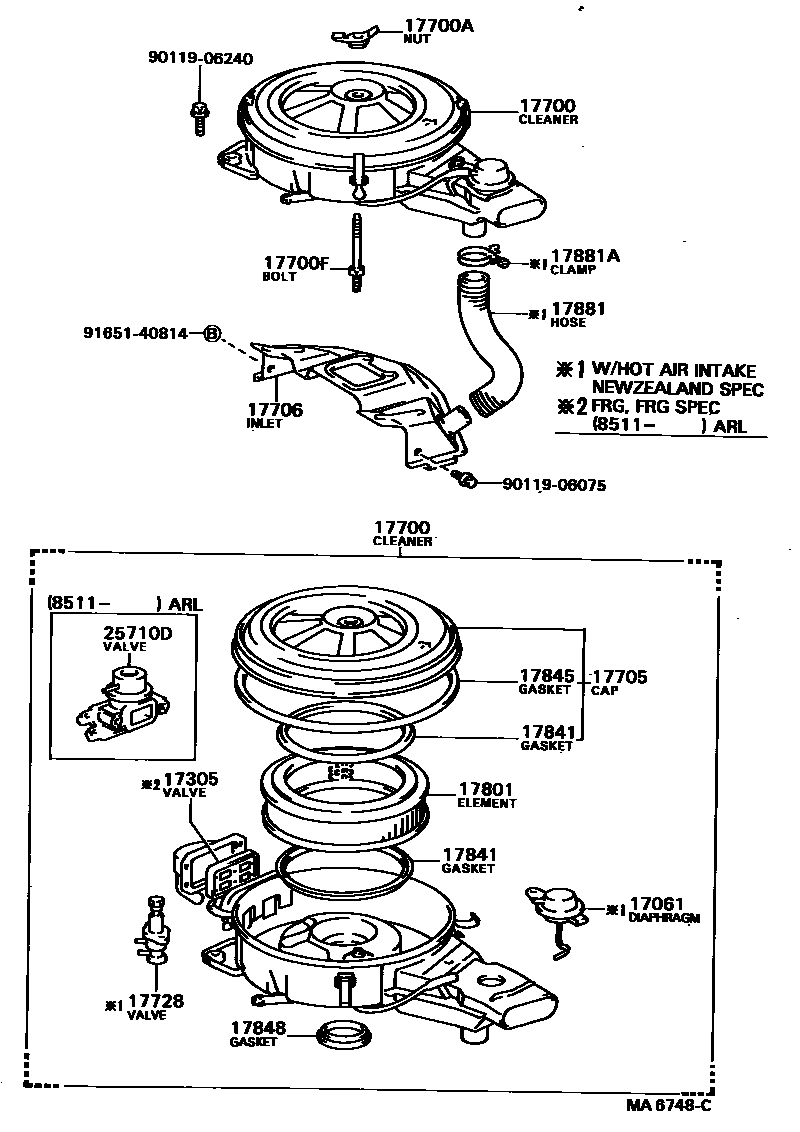

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1(8509- )NEW ZEALAND SPEC 0008 1 0010 1 0011 1

17061DIAPHRAGM SUB-ASSY

main17061-10010i2EL..EE80..SAA198410-198707

W/HOT AIR INTAKE

main17061-11010i2EL#..EE80..EUR198410-198704

main17061-11010i2EL..EE80..RHD..GEN198509-198704

NEW ZEALAND SPEC

main17061-15030i2AL#,4AL#..AE8#..ARL,EUR,GEN198305-198807

W/HOT AIR INTAKE

main17061-15030i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

17305VALVE SUB-ASSY, REED

main17305-15010i2ALC,4ALC..AE8#..ARL198511-198807

main17305-16010i4ALC..AE82..FRG198508-198704

main17305-16010i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main17350-11020i2ELC..EE80..FRG198605-198704

sub17350-11021

17700CLEANER ASSY, AIR

main17700-11190i2EL#..EE80..EUR198410-198510

sub17700-11191

sub90339-03005

main17700-11190i2EL..EE80..RHD..GEN198509-198510

NEW ZEALAND SPEC

sub17700-11191

sub90339-03005

main17700-11191i2EL..EE80..RHD..GEN198510-198704

NEW ZEALAND SPEC

main17700-11200i2EL..EE80..GEN198410-198707

W/HOT AIR INTAKE

main17700-11210i2EL..EE80..GEN,SAA198605-198707

W/PRE CLEANER

main17700-11210i2EL..EE80..GEN,SA,SAA198410-198807

main17700-11220i2EL..EE80..GEN,SAA198410-198605

W/PRE-CLEANER

main17700-11330i2ELC..EE80..FRG198605-198610

sub17700-11331

main17700-11331i2ELC..EE80198610-198704

main17700-16040i2AL,4AL..AE8#..EUG198305-198704

main17700-16040i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

main17700-16050i2AL,4AL..AE8#..GEN,SA,SAA198305-198807

main17700-16070i2AL,4AL..AE8#..GEN198305-198704

W/HOT AIR INTAKE

main17700-16130i4ALC..AE82..SDZ198305-198704

main17700-16190i4ALC..AE82..FRG198508-198704

main17700-16190i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main17700-16240i2ALC,4ALC..AE8#..ARL198511-198807

main17700-16280i4AG#..AE82198410-198807

main17700-64040i1CL..CE80..EUG198305-198604

sub17700-64041

main17700-64041i1CL..CE80198604-198704

sub17700-64111

main17700-64080i1CL..CE80..GEN198305-198411

sub17700-64040

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2AL#,4AL#..AE8#198305-198807

main90175-06009i2EL#..EE80198410-198807

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06039i2AL#,4AL#..AE8#198305-198807

main90116-06142i2EL..EE80..GEN,SA,SAA198410-198807

17705CAP SUB-ASSY, AIR CLEANER

main17705-11170i2EL#..EE80..EUG,SDZ198410-198704

sub17705-11360

main17705-11170i2EL..EE80..RHD..GEN198509-198704

NEW ZEALAND SPEC

sub17705-11360

main17705-11180i2EL..EE80..SAA198410-198707

W/HOT AIR INTAKE

main17705-11190i2EL..EE80..GEN,SA,SAA198410-198807

main17705-11190i2EL..EE80..GEN,SAA198605-198707

W/PRE-CLEANER

main17705-11200i2EL..EE80..GEN,SAA198410-198605

W/PRE-CLEANER

sub17705-11370

main17705-11270i2ELC..EE80..FRG198605-198704

main17705-16050i2AL#,4AL#..AE8#198305-198807

main17705-16100i4AG#..AE82198410-198807

main17705-64030i1CL..CE80198305-198604

main17705-64080i1CL..CE80198604-198704

sub17705-64030

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17902-16010i2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG198305-198807

sub17902-16011

main17902-16020i2AL,4AL..AE8#198305-198807

sub17902-16021

17728VALVE, THERMOSTATIC

main17728-10010i2EL#..EE80198410-198807

main17728-11020i2ELC..EE80..FRG198605-198704

main17728-15020i2AL#,4AL#..AE8#..ARL,EUR198305-198807

W/HOT AIR INTAKE

main17728-15020i2EL..EE80..RHD..GEN198509-198704

NEW ZEALAND SPEC

main17728-24010i2AL,4AL..AE8#..GEN198305-198404

W/HOT AIR INTAKE

sub17728-24011

main17728-24011i4AL..AE82..GEN198404-198704

W/HOT AIR INTAKE

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-10030i2EL#..EE80198410-198807

sub17801-11100

main17801-15010i2AL#,4AL#..AE8#198305-198807

main17801-64010i1CL..CE80..EUG198305-198704

main17801-64020i1CL..CE80..GEN198305-198411

sub17801-64010

main17801-74010i4AG#..AE82198410-198807

sub17801-55010

17841GASKET, FILTER ELEMENT

main17841-15010i2AL#,4AL#..AE8#198305-198807

17845GASKET, AIR CLEANER CAP

main17845-10020i2EL#..EE80198410-198807

main17845-61011i2AL#,4AL#..AE8#198305-198807

*G,L=1060

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-10020i2EL..EE80..GEN,SA,SAA198410-198609

main17848-10021i2EL..EE80..GEN,SA,SAA198609-198807

main17848-15010i2EL..EE80..RHD..GEN198509-198704

NEW ZEALAND SPEC

main17848-15010i2EL#..EE80..EUR198410-198704

main90430-63001i2AL#,4AL#..AE8#198305-198807

sub17848-10020

17881HOSE, AIR CLEANER, NO.1

main17880-64030i1CL..CE80198305-198704

main17881-10030i2EL#..EE80..EUR,GEN198410-198704

W/HOT AIR INTAKE

sub17881-10031

main17881-10030i2ELC..EE80..FRG198605-198704

sub17881-10031

main17881-10030i2EL..EE80..RHD..GEN198509-198704

NEW ZEALAND SPEC

sub17881-10031

main17881-16090i4AG#..AE82198410-198807

main17881-16110i2ALC,4AL#..AE8#..ARL,EUR,GEN198505-198807

W/HOT AIR INTAKE

sub17881-16210

main17881-16110i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

sub17881-16210

main17881-63010i2AL#,4AL#..AE8#..ARL,EUR,GEN198305-198502

W/HOT AIR INTAKE

sub17881-74040

main17881-74040i2AL#,4AL#..AE8#..ARL,EUR,GEN198502-198505

W/HOT AIR INTAKE

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90929-01117i2ALC,4ALC..AE8#..ARL198509-198807

W/HOT AIR INTAKE

main90929-01117i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90929-01145i4ALC..AE82..FRG198508-198704

W/HOT AIR INTAKE

main96111-10460i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

main96111-10460i2AL#,4AL#..AE8#..ARL,EUR,GEN198305-198704

W/HOT AIR INTAKE

main96111-10650i1CL..CE80198305-198704

main96111-10750i4AG#..AE82198410-198807

25710DVALVE ASSY, AIR SWITCHING

main25710-15050i2ALC,4ALC..AE8#..ARL198511-198807

9011906075

main90119-06075

9011906240

main90119-06240

9165140814

main91651-40814

18 parts on this diagram · 9 diagrams in section
