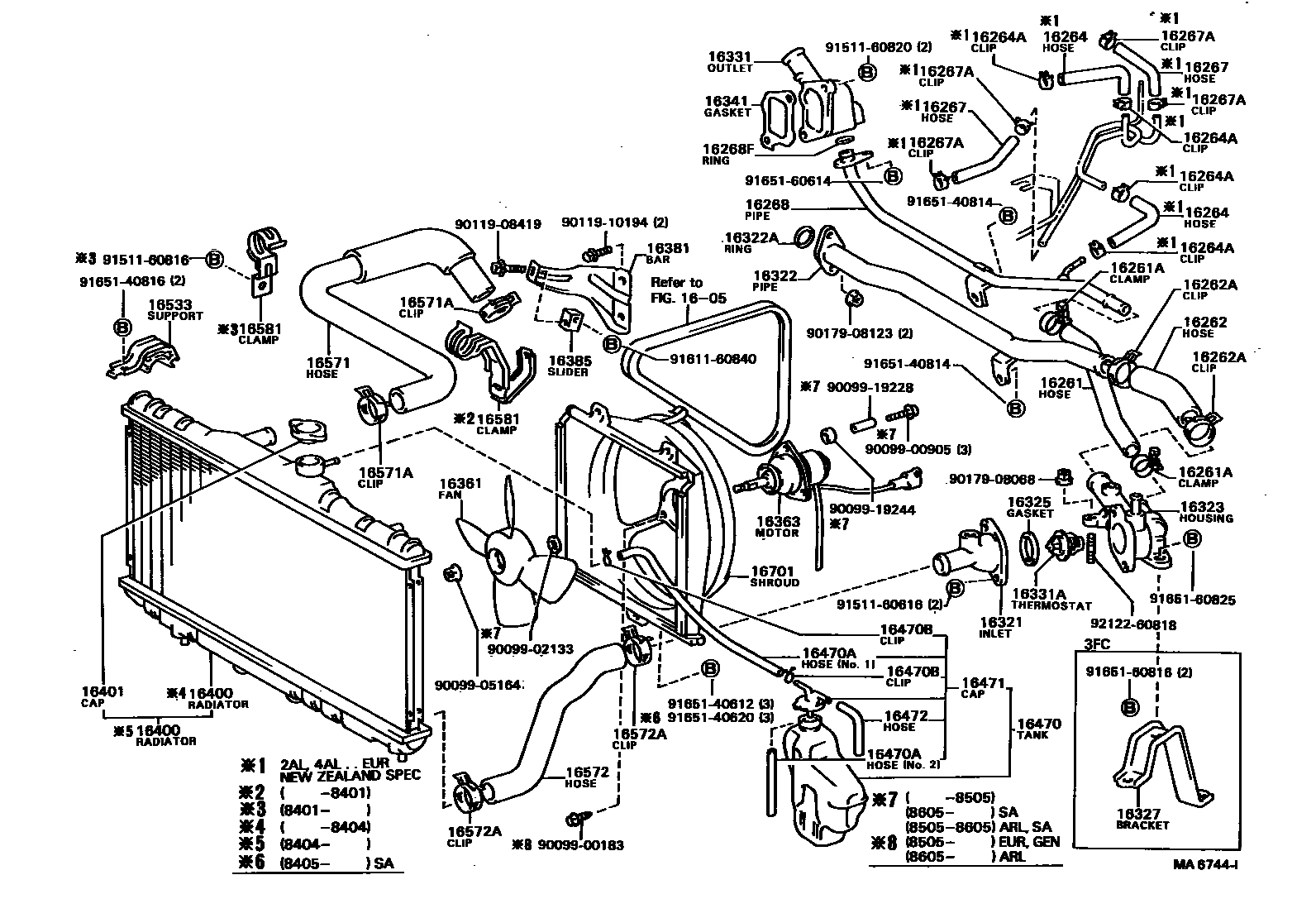

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0006 1

1605

16261HOSE, WATER BY-PASS

main16261-11010i2EL#..EE80..EUR198410-198704

sub16261-11011

main16261-15010i2AL#,4AG#,4AL#..AE8#198305-198807

main16261-64030i1CL..CE80198305-198505

main16261-64060i1CL..CE80198505-198704

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i2EL#..EE80..EUR198410-198704

sub96135-51100

main90467-15004i1CL..CE80198305-198704

main96112-10250i2AL#,4AG#,4AL#..AE8#198305-198807

16262HOSE, WATER INLET

main16262-10010i2EL#..EE80..MTM198410-198807

sub16262-10011

main16262-10020i2EL..EE80..3FC198410-198807

sub16262-10022

main16262-15010i2AL#,4AG#,4AL#..AE8#198305-198807

16262ACLIP(FOR WATER INLET HOSE)

main90467-34002i2AL#,4AG#,4AL#..AE8#198305-198601

sub90467-34003

main90467-34003i2ALC,4AG#,4AL#..AE8#198601-198807

sub90467-34004

16264HOSE, WATER BY-PASS, NO.2

main16264-11010i2EL#..EE80..EUR198410-198704

main16264-15030i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

main16264-15030i2AL,4AL..AE8#..EUG198305-198704

main16264-16030i4AG#..AE82198410-198807

main16264-64030i1CL..CE80198305-198405

sub16264-64031

main16264-64031i1CL..CE80198405-198505

main16264-64060i1CL..CE80198505-198704

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i2AL,4AL..AE8#..EUG198305-198704

sub96135-51100

main90467-11009i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

sub96135-51100

main90467-13001i4AG#..AE82198410-198807

sub96135-51300

main90467-15004i1CL..CE80198305-198704

16267HOSE, WATER BY-PASS, NO.3

main16267-16010i4AG#..AE82198410-198807

main16267-64010i1CL..CE80198305-198704

main99553-00100i2AL,4AL..AE8#..EUG198305-198308

sub99555-00100

main99555-00100i2AL,4AL..AE8#..EUG198308-198704

main99555-00100i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i4AL..AE82..RHD..GEN198509-198605

NEW ZEALAND SPEC

sub96135-51100

main90467-11009i1CL..CE80198305-198704

sub96135-51100

main90467-13001i4AG#..AE82198410-198807

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-15020i4AG#..AE82198509-198605

NEW ZEALAND SPEC

main16268-15020i2AL,4AL..AE8#..EUG198305-198609

main16268-15040i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main16268-15040i4ALC..AE82..SDZ;2AL#,4AL#..AE8#..ARL,GEN,SA,SAA198305-198609

main16268-15050i4AL..AE82..EUG198609-198704

main16268-15060i4ALC..AE82..SDZ;2ALC,4AL#..AE8#..ARL,GEN,SA198609-198807

main16268-16030i4AG#..AE82198410-198608

sub16268-16070

main16268-16070i4AG#..AE82198608-198807

sub16268-16071

main16268-64020i1CL..CE80198305-198505

main16268-64040i1CL..CE80198505-198704

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i2AL#,4AG#,4AL#..AE8#198305-198807

16321INLET, WATER

main16321-11010i2EL..EE80198410-198503

sub16321-11011

main16321-11011i2EL#..EE80198503-198807

main16321-15010i2AL#,4AG#,4AL#..AE8#198305-198807

main16321-64020i1CL..CE80198305-198704

16322PIPE, WATER INLET

main16322-10010i2EL..EE80..GEN,SA,SAA198410-198807

main16322-11010i2EL#..EE80..EUR198410-198704

sub16322-11081

sub16266-11010

main16322-15010i2AL#,4AL#..AE8#198305-198609

main16322-15030i2ALC,4AL#..AE8#198609-198807

16322ARING, O(FOR WATER INLET)

main96711-24035i2AL#,4AL#..AE8#198305-198807

sub96761-24035

main96711-35028i2EL#..EE80198410-198807

sub96761-35028

16323HOUSING, WATER INLET

main16323-14010i2AL..AE80..GEN,SAA198305-198807

main16323-15030i4AL#..AE82..4FC198402-198807

main16323-15030i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main16323-15040i2AL..AE80..EUR,SAA198305-198807

main16323-15040i2AL..AE80..RHD..4F..DX;2AL..AE80..RHD..5F..GL..GEN198402-198505

SINGAPORE SPEC

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i2AL#,4AG#,4AL#..AE8#198305-198807

sub16325-63011

16327BRACKET, WATER INLET HOUSING

main16327-15010i2AL#,4AL#..AE8#..3FC198305-198807

16331OUTLET, WATER

main16331-15060i2AL#,4AL#..AE8#198305-198807

main16331-16030i4AG#..AE82198410-198807

main16331-64030i1CL..CE80198305-198704

16331ATHERMOSTAT

main90916-03046i2EL#..EE80198305-198807

*WAX 82-95,*WAX82-95

main90916-03046i2AL#,4AG#,4AL#..AE8#198305-198807

*WAX 82-95

main90916-03060i4AG#..AE82198702-198807

*WAX 82-95

sub90916-03090

16341GASKET, WATER OUTLET

main16341-15011i2AL#,4AL#..AE8#198305-198807

sub16341-15012

main16341-16010i4AG#..AE82198410-198701

sub16341-16020

main16341-16020i4AG#..AE82198701-198807

main16341-64010i1CL..CE80198305-198704

sub16341-64020

16361FAN

main16361-15080i4AGEL..AE82..EUR,GEN198505-198807

main16361-63030i4AGEL,4AL..AE82..SA198305-198807

main16361-64010i1CL..CE80..GEN198305-198704

16363MOTOR, COOLING FAN

main16363-15090i2EL..EE80198305-198807

main16363-16030i4AL..AE82..MTM..GEN198505-198807

main16363-64010i4AL..AE82..3FC..GEN198305-198704

16381BAR, FAN BELT ADJUSTING

main16381-10040i2EL#..EE80198410-198604

main16381-11020i2EL#..EE80198604-198807

sub16381-11021

main16381-15040i2AL,4AL#..AE8#198305-198403

sub16381-15041

main16381-15041i2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ198403-198807

main16381-16021i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main16381-16021i4ALC..AE82..FRG198508-198704

main16381-16030i4AG#..AE82198410-198807

sub16381-16050

16385SLIDER, FAN BELT ADJUSTING

main16385-15010i2AL#,4AL#..AE8#198305-198807

16400RADIATOR ASSY

main16400-11010i2EL#..EE80..MTM..EUR198410-198704

W/CAP

sub16400-11020

main16400-11020i2EL..EE80..3FC..EUG198410-198704

W/CAP

main16400-11030i2EL..EE80..MTM..(GEN,SA,SAA)198410-198807

W/CAP

sub16400-11230

main16400-11040i2EL..EE80..LHD..3FC..EUG198410-198704

FRENCH TERRITORY SPEC,W/CAP

sub16400-11080

main16400-11040i2EL..EE80..3FC..(GEN,SAA)198410-198707

W/CAP

sub16400-11080

main16400-11050i2EL..EE80..LHD..MTM..EUG198410-198704

FRENCH TERRITORY SPEC,W/CAP

sub16400-11080

main16400-11230i2EL..EE80..MTM..GEN198703-198704

MIDDLE EAST SPEC, W/CAP

main16400-11230i2EL..EE80..4F..SAA198703-198707

W/CAP

main16400-14030i2AL..AE80..MTM..(GEN,SA,SAA)198404-198505

W/CAP

sub16400-15250

main16400-14040i2AL..AE80..3FC..EUG198404-198505

W/CAP

main16400-14050i4AL..AE82..RHD..5F..GEN198407-198704

THAILAND SPEC

sub16400-15200

main16400-14050i4AL#..AE82..ATM..(EUR,GEN,SA)198404-198807

W/CAP

sub16400-15200

main16400-14050i4AL..AE82..STD198512-198701

VENEZUELA SPEC

sub16400-15200

main16400-14060i2AL,4AL#..AE8#..MTM..EUR198404-198704

W/CAP

sub16400-14040

main16400-15190i4AG#..AE82..ARL,GEN,SA198410-198807

W/CAP

sub16400-15200

main16400-15190i4AL..AE82..5F..EUG198410-198704

FRENCH TERRITORY SPEC,W/CAP

sub16400-15200

main16400-15190i4AL..AE82..STD198701-198704

VENEZUELA SPEC

sub16400-15200

main16400-15200i2ALC,4ALC..AE8#..ATM..ARL198411-198807

W/CAP

main16400-15250i4AL..AE82..5F..(GEN,SA)198404-198704

W/CAP

main16400-16080i4AGEL..AE82..EUG198410-198704

W/CAP

main16400-64070i1CL..CE80198404-198704

W/CAP

sub16400-64080

main16410-14030i2AL..AE80..MTM..(GEN,SA,SAA)198305-198404

W/O CAP

sub16400-14030

main16410-14040i2AL..AE80..3FC..EUG198305-198404

W/O CAP

sub16400-14040

main16410-14050i2AL..AE80..3FC..(GEN,SAA)198305-198404

W/O CAP

sub16400-14050

main16410-14060i2AL,4AL#..AE8#..MTM..EUR198305-198404

W/O CAP

sub16400-14060

main16410-15250i4AL..AE82..5F..(GEN,SA)198305-198404

W/O CAP

sub16400-15250

main16410-64060i1CL..CE80198305-198404

W/O CAP

sub16400-64070

16401CAP SUB-ASSY, RADIATOR

main16401-63010i1CL..CE80198305-198807

16470TANK ASSY, RADIATOR RESERVE

main16470-15020i2EL#..EE80198305-198807

sub16470-63030

main16470-63030i1CL..CE80198305-198704

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12043i2AL,4AL#..AE8#198305-198308

L=600(*H,L=360)

sub90445-12078

main90445-12078i2EL#..EE80198308-198807

L=1450(*H,L=340),NO.1

main90445-12129i1CL..CE80198305-198704

L=480

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2EL#..EE80198305-198807

16471CAP SUB-ASSY, RESERVE TANK

main16405-15030i2EL#..EE80198305-198807

sub16471-64040

main16405-63030i1CL..CE80198305-198704

sub16471-64040

16472HOSE, BREATHER

main85338-30010i2EL#..EE80198305-198609

main85338-70100i4AG#,4AL#..AE82198609-198807

16533SUPPORT, RADIATOR, UPPER

main16505-15050i2AL,4AL..AE8#..MTM..GEN198305-198807

main16533-15060i2AL..AE80..3FC;4AL#..AE82..EUR;2AL..AE80..MTM..EUG;4AL..AE82..3FC..GEN198305-198311

sub16533-15061

main16533-15061i2AL..AE80..3FC;4AL#..AE82..EUR;2AL..AE80..MTM..EUG;4AL..AE82..ATM..(GEN,SA)198311-198403

sub16533-15062

main16533-15062i4AL..AE82..5F..SA198403-198807

main16533-15062i4AL..AE82..STD198512-198704

VENEZUELA SPEC

main16533-15062i4AL..AE82..RHD..5F..GEN198407-198704

THAILAND SPEC

main16533-64010i1CL..CE80198305-198505

sub16533-64050

main16533-64050i1CL..CE80198505-198704

16571HOSE, RADIATOR, INLET

main16571-11010i2EL#..EE80198410-198807

main16571-15100i2AL#,4AL#..AE8#198305-198807

main16571-16040i4AG#..AE82198410-198807

ENGINE SIDE

main16571-64050i1CL..CE80198305-198606

main16571-64080i1CL..CE80198606-198704

sub16571-64050

main16573-16030i4AG#..AE82198410-198807

RADIATOR SIDE

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i2EL#..EE80198410-198807

main90467-34001i1CL..CE80198305-198704

sub90467-33003

main90467-34002i2AL#,4AG#,4AL#..AE8#198305-198601

sub90467-34003

main90467-34003i2ALC,4AG#,4AL#..AE8#198601-198807

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-11010i2EL#..EE80..MTM198410-198807

main16572-11020i2EL..EE80..3FC198410-198807

main16572-15150i2AL#,4AG#,4AL#..AE8#198305-198807

main16572-64050i1CL..CE80198305-198704

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i2EL#..EE80198410-198807

main90467-34001i1CL..CE80198305-198807

RADIATOR SIDE

sub90467-33003

main90467-34002i2AL#,4AG#,4AL#..AE8#198305-198601

WATER INLET SIDE

sub90467-34003

main90467-34003i2ALC,4AG#,4AL#..AE8#198601-198807

WATER INLET SIDE

sub90467-34004

main90467-37002i1CL..CE80198409-198704

INLET SIDE

sub90467-37005

main96111-10450i1CL..CE80198305-198409

INLET SIDE

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-15010i2AL,4AL#..AE8#198305-198401

sub16581-15020

sub82711-1A180

sub91651-60816

main16581-15020i2AL#,4AL#..AE8#198401-198807

16701SHROUD SUB-ASSY, FAN

main16711-15140i2ALC,4AG#,4AL#..AE8#..ARL,SA198305-198807

main16711-15150i4AGEL..AE82..EUR,GEN198505-198807

sub16711-15210

main16711-15190i4AL..AE82..3FC..GEN198505-198506

sub16711-15191

main16711-15191i4AL..AE82..3FC..GEN198506-198704

main16711-64050i1CL..CE80..GEN198305-198704

sub16711-74050

main16711-64060i1CL..CE80..EUG198305-198505

main16711-64100i1CL..CE80..EUG198505-198704

sub16711-74040

9009900183

main90099-00183

9009900905

main90099-00905

9009902133

main90099-02133

9009905164

main90099-05164

9009919228

main90099-19228

9009919244

main90099-19244

9011908419

main90119-08419

9011910194

main90119-10194

9017908068

main90179-08068

9017908123

main90179-08123

9151160616

main91511-60616

9151160816

main91511-60816

9151160820

main91511-60820

9161160840

main91611-60840

9165140612

main91651-40612

9165140620

main91651-40620

9165140814

main91651-40814

9165140816

main91651-40816

9165160614

main91651-60614

9165160816

main91651-60816

9165160825

main91651-60825

9212260818

main92122-60818

60 parts on this diagram · 5 diagrams in section
