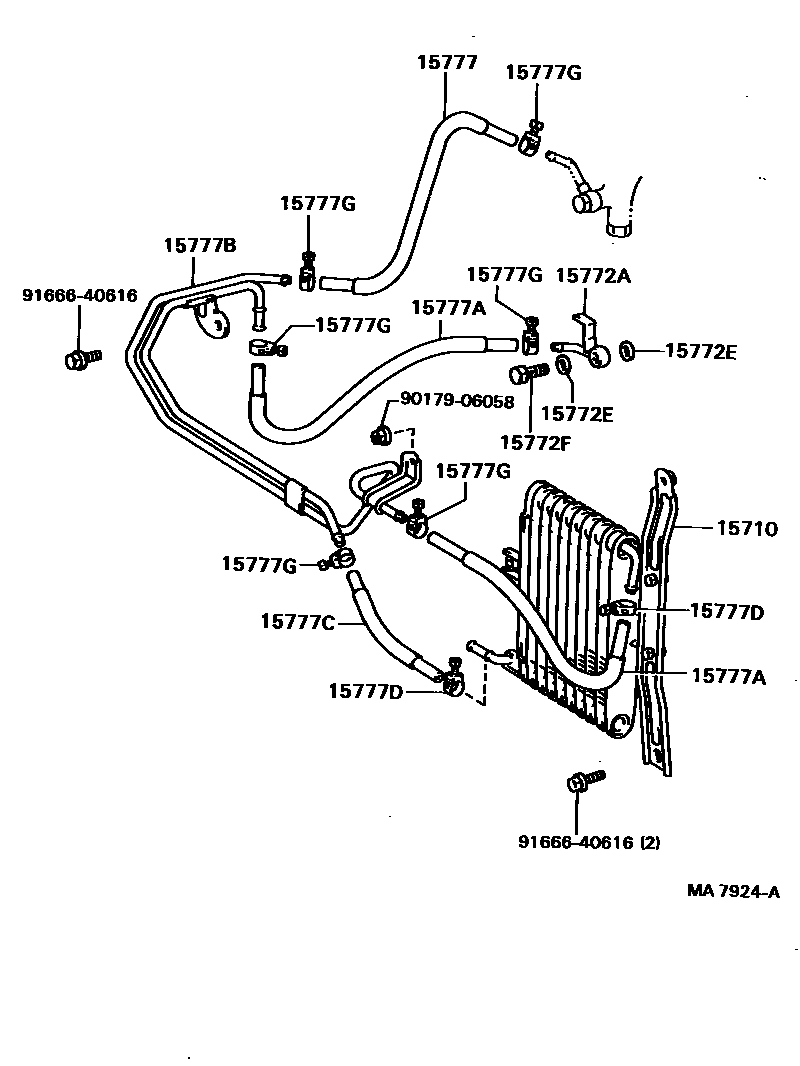

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15700-16020i4AG#..AE82..ARL,EUR198410-198807

15772AUNION(FOR OIL PIPE)

main90405-10017i4AGEL..AE82..EUG198410-198508

main90405-10023i4AGEL..AE82..EUG198508-198704

main90405-10030i4AGELC..AE82198511-198807

15772EGASKET(FOR OIL PIPE)

main90430-12009×2i4AGEL..AE82..EUG198410-198505

main90430-12018×2i4AG#..AE82..ARL,EUR198505-198807

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i4AG#..AE82..ARL,EUR198410-198807

15777HOSE, OIL COOLER

main15777-16040i4AGEL..AE82..EUG198410-198704

main15777-16060i4AGELC..AE82198511-198807

15777AHOSE, OIL COOLER

main15776-16020i4AG#..AE82..ARL,EUR198410-198807

UNION SIDE

main15778-16020i4AG#..AE82..ARL,EUR198410-198807

COOLER SIDE

15777BPIPE, OIL COOLER

main15767-16030i4AGEL..AE82..EUG198410-198704

main15767-16050i4AGELC..AE82198511-198807

15777CHOSE, OIL COOLER

main15779-16010i4AG#..AE82..ARL,EUR198410-198807

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90460-01001×2i4AG#..AE82..ARL,EUR198410-198807

15777GCLAMP OR CRIP, HOSE

main90460-01001×6i4AG#..AE82..ARL,EUR198410-198807

9017906058

main90179-06058

9166640616

main91666-40616

12 parts on this diagram · 1 diagram in section
