ENGINE OVERHAUL GASKET KIT

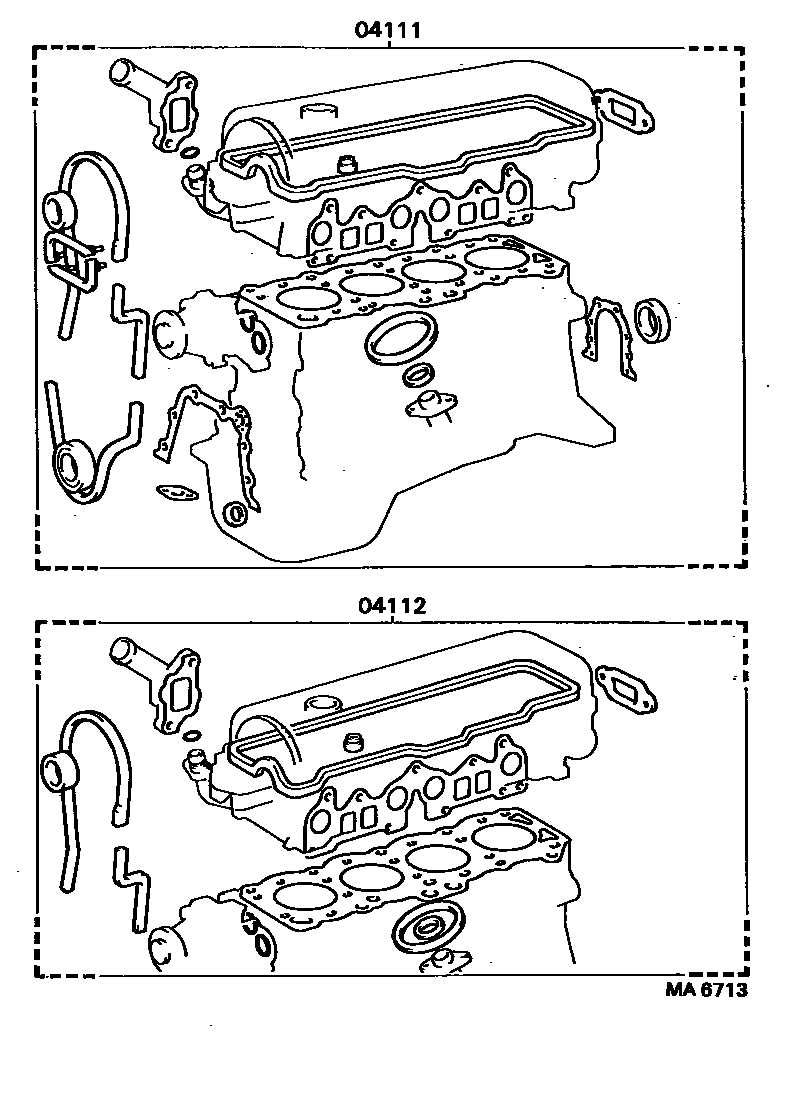

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11020i198410-198604
sub04111-11021
main04111-11021i198604-198807
sub04111-11022
main04111-14050i198305-198505
sub04111-14051
main04111-16040i198305-198807
sub04111-16041
main04111-16042i198505-198807
main04111-16071i198410-198506
sub04111-16072
main04111-16072i198506-198807
sub04111-16073
main04111-16090i198505-198807
sub04111-16091
main04111-64012i198305-198307
sub04111-64013
main04111-64040i198307-198501
sub04111-64041
main04111-64041i198501-198505
sub04111-64043
main04111-64060i198505-198608
sub04111-64061
main04111-64061i198608-198704
sub04111-64062
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11010i198410-198807
sub04112-11011
main04112-14050i198305-198505
sub04112-14051
main04112-16040i198305-198807
sub04112-16041
main04112-16042i198505-198807
main04112-16071i198410-198506
sub04112-16072
main04112-16072i198506-198807
sub04112-16023
main04112-16090i198505-198807
sub04112-16091
main04112-64010i198305-198307
sub04112-64011
main04112-64040i198307-198501
sub04112-64041
main04112-64041i198501-198505
sub04112-64042
main04112-64060i198505-198704
sub04112-64061

2 parts on this diagram · 4 diagrams in section
