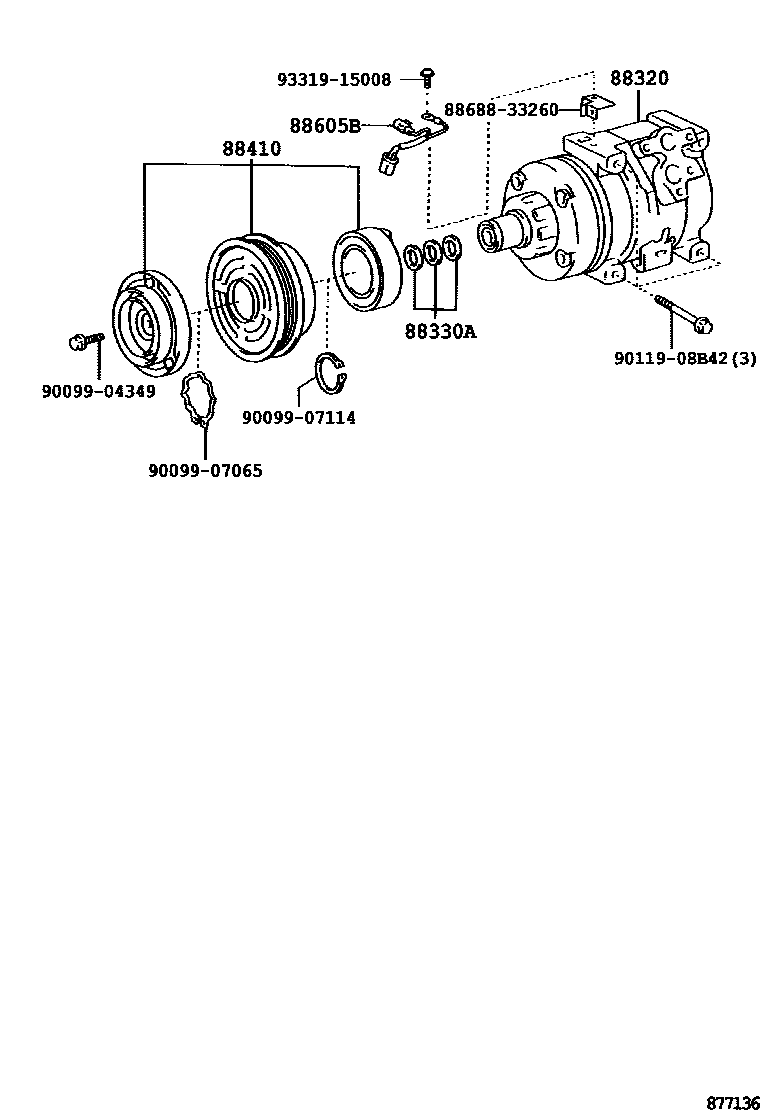

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-02120iZZE122200402-200705

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iZZE122200402-200705

88410CLUTCH ASSY, MAGNET

main88410-02130iZZE122200402-200705

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-35420iZZE122200402-200705

8868833260BRACKET, COOLER DIAPHRAGM

main88688-33260

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

10 parts on this diagram · 2 diagrams in section
