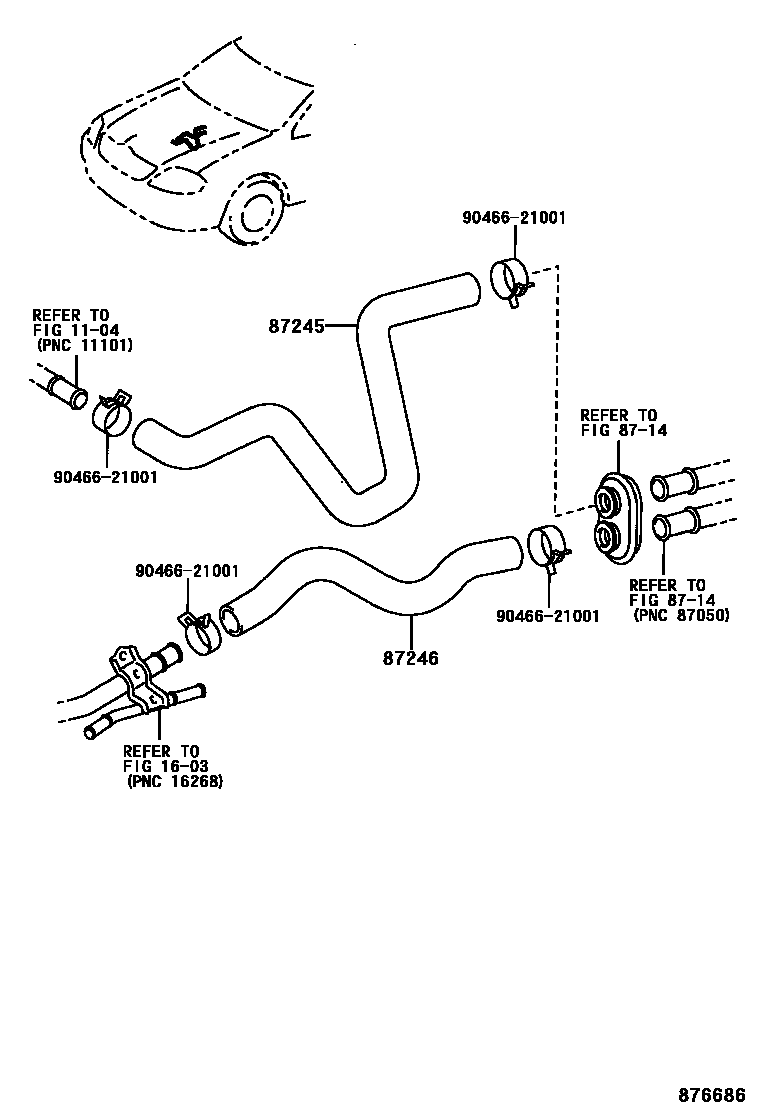

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-02850iZZE122200402-200705

main87245-02D00iZRE120200705-201210

87246HOSE, HEATER WATER, OUTLET

main87245-02860iZZE122200402-200705

main87245-02D10iZRE120200705-201210

9046621001

main90466-21001

6 parts on this diagram · 2 diagrams in section
