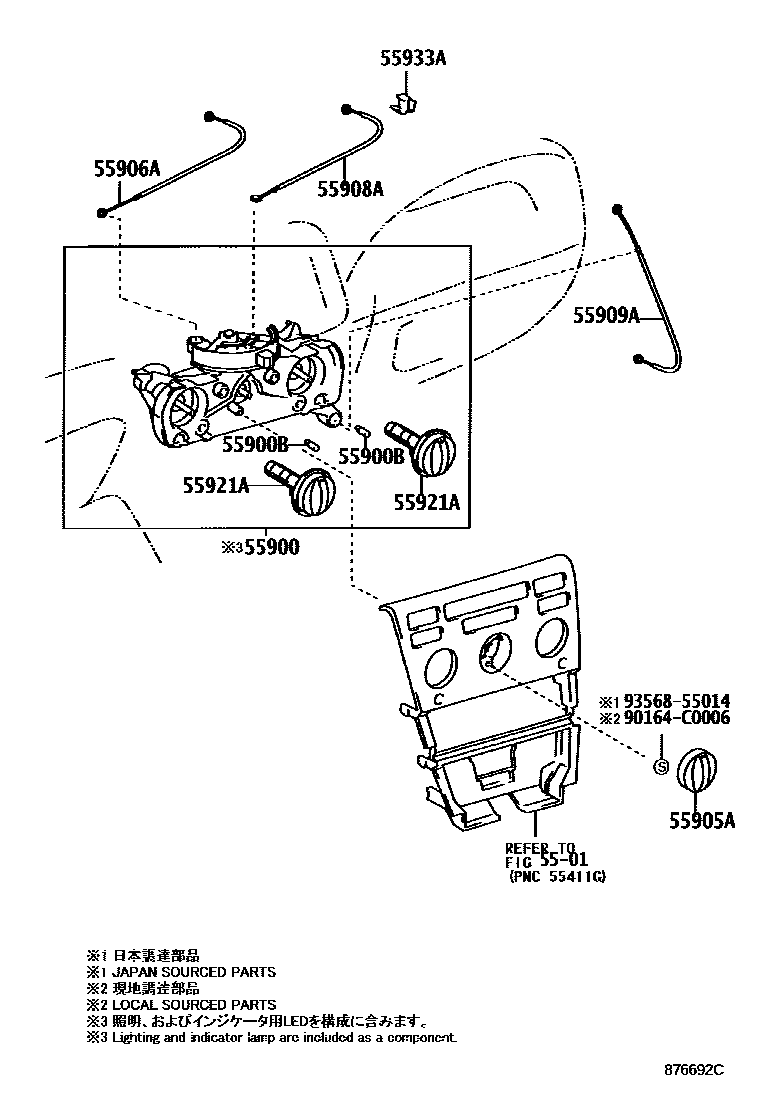

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL--DIAL TYPE 0003 1CONTROL PANEL--DIAL TYPE 0004 1CONTROL PANEL--AUTO AIR CONDI0005 1AIR DUCT 0006 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-1A070iZZE122..GLI200402-200404

main55900-1A071iZRE120200705-201210

55900BBULB, AIR CONDITIONER CONTROL

main90011-01027×4iZZE122..GLXI200611-200705

14V 1.12W,T=4.2

main90011-01028iZZE122..GLXI200611-200705

14V 1.4W

main90011-01029iZZE122..GLXI200611-200705

14V 0.91W

main90011-01030×3iZZE122..GLXS200408-200705

14V 1.12W,T=4.8

main90981-11040×2iZRE120201210

12V 2W

55905AKNOB, HEATER CONTROL

main55905-12740iZZE122..GLI200402-200404

main55905-12741iZZE122..GLI200404-200705

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12400iZZE122..GLI200402-200705

main55906-YK010iZRE120201309

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12320iZZE122..GLI200402-200705

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12320iZZE122..GLI200402-200705

55921ARETAINER, HEATER CONTROL

main55921-12161×2iZRE120201210

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010iZZE122..GLI200402-200705

90164C0006

main90164-C0006

9356855014

main93568-55014

11 parts on this diagram · 5 diagrams in section
