MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LT.GRAY,TRIM1#
IVORY,TRIM0#
LT.GRAY,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
LT.GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
RETRACTABLE ELECTRIC MIRROR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
RETRACTABLE ELECTRIC MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,RETRACTABLE ELECTRIC MIRROR
NO PAINT REQ.,RETRACTABLE ELECTRIC MIRROR
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87911GASKET, OUTER REAR VIEW MIRROR, RH
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,RETRACTABLE ELECTRIC MIRROR
NO PAINT REQ.,RETRACTABLE ELECTRIC MIRROR
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87941GASKET, OUTER REAR VIEW MIRROR, LH
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
9015460034
main90154-60034
90178C0035
main90178-C0035
9017906159
main90179-06159

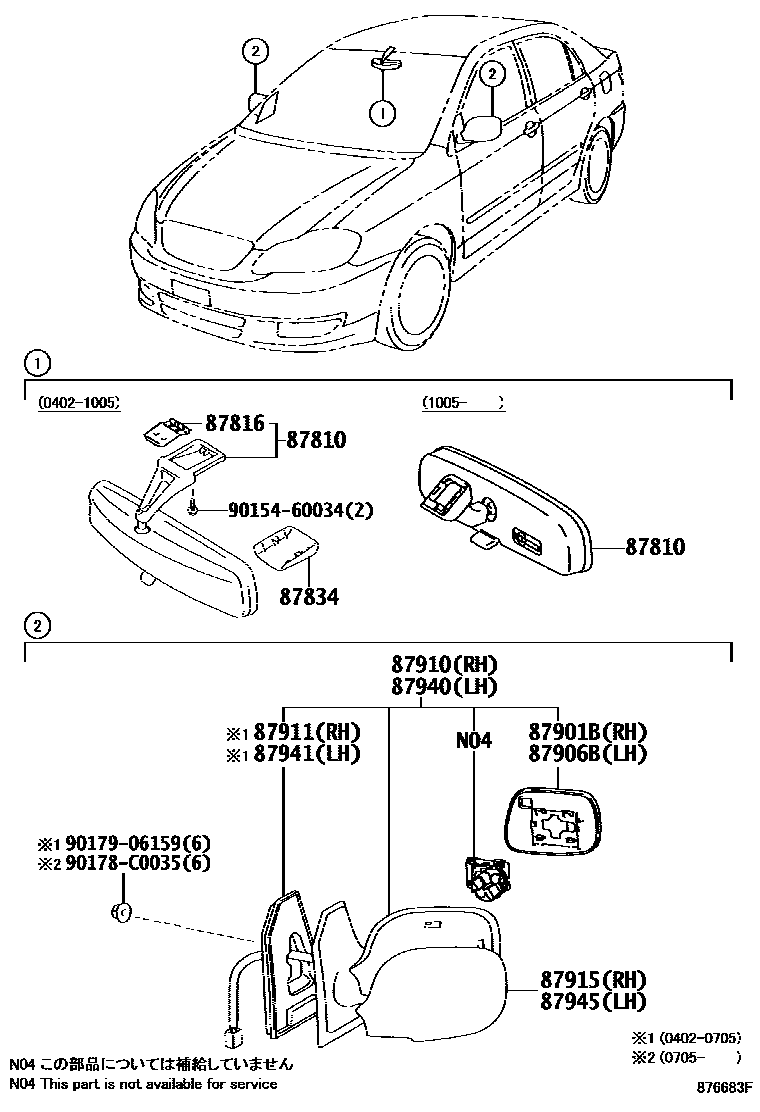

14 parts on this diagram · 2 diagrams in section
