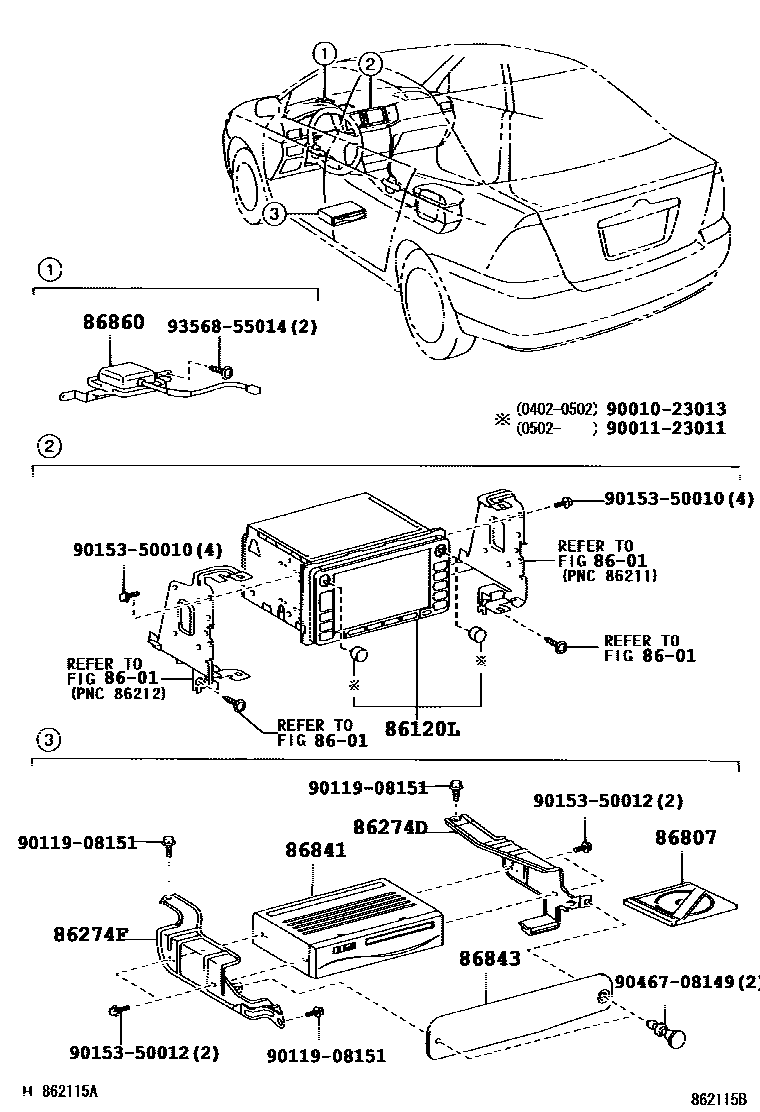

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-02500iZZE122..GLXI,GLXS200502-200705

FUJITSU TEN,ID=18020

main86120-52131iZZE122..GLXI,GLXS200402-200502

FUJITSU TEN,ID=18007

86274DBRACKET, DISC PLAYER

main86274-13050iZZE122..GLXI,GLXS200402-200705

86274FBRACKET, DISC PLAYER, NO.2

main86274-13060iZZE122..GLXI,GLXS200402-200705

86807DISC KIT, CD-ROM

main86807-0D012iZZE122..GLXI200402-200403

main86807-0D013iZZE122..GLXI,GLXS200403-200409

main86807-0D014iZZE122..GLXI,GLXS200410-200502

sub86807-0D015

main86807-0N011iZZE122..GLXI,GLXS200502-200503

main86807-0N012iZZE122..GLXI,GLXS200503-200509

main86807-0N013iZZE122..GLXI,GLXS200510-200602

main86807-0W021iZZE122..GLXI,GLXS200603-200607

main86807-0W022iZZE122..GLXI,GLXS200608-200705

sub86807-0W023

86841COMPUTER, NAVIGATION

main86841-33090iZZE122..GLXI,GLXS200502-200705

main86841-52010iZZE122..GLXI200402-200405

main86841-52011iZZE122..GLXI,GLXS200405-200502

86843COVER, NAVIGATION COMPUTER

main86843-32010iZZE122..GLXI,GLXS200402-200705

86860ANTENNA ASSY, NAVIGATION

main86860-12030iZRE120201210

main86860-12050iZZE122..GLXI,GLXS200402-200705

9001023013

main90010-23013

9001123011

main90011-23011

9011908151

main90119-08151

9015350010

main90153-50010

9015350012

main90153-50012

9046708149

main90467-08149

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
