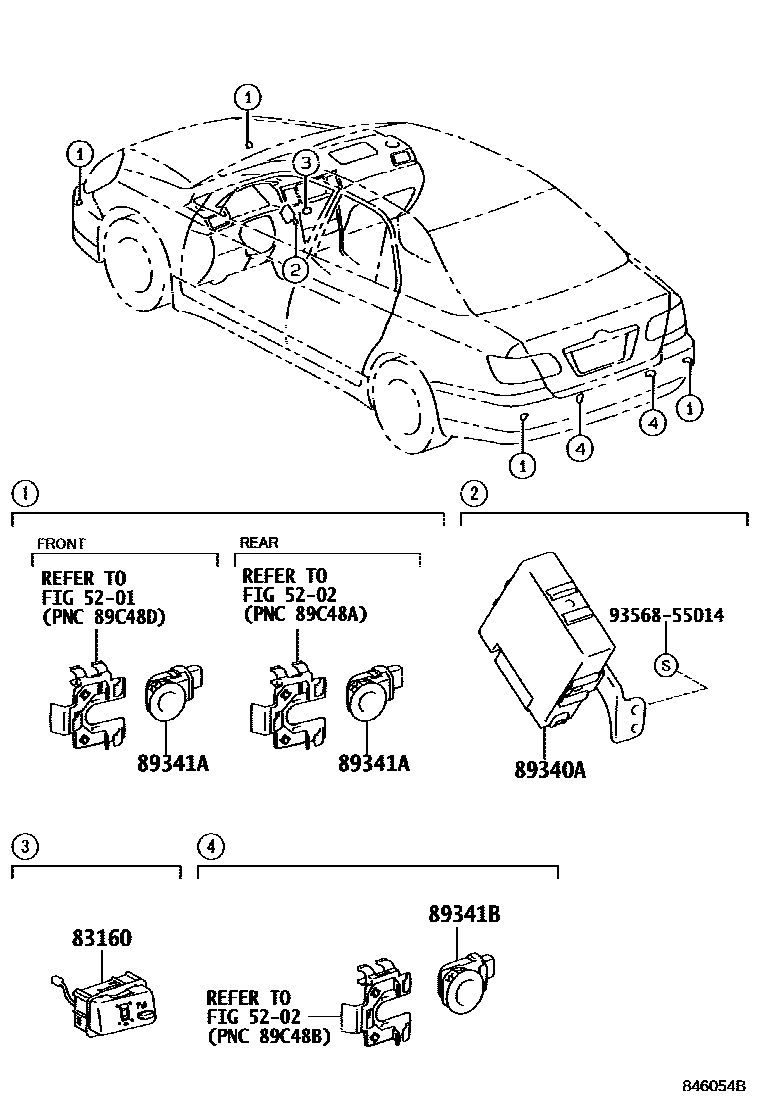

CLEARANCE & BACK SONAR

5201

5202

83160INDICATOR ASSY, CLEARANCE WARNING

main83160-02010iZZE122..GLXI,GLXS200402-200705

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-12040iZZE122..GLXI,GLXS200402

89341ASENSOR, ULTRASONIC, NO.1

main89341-12080×4iZZE122..GLXI,GLXS200402-200409

SILVER

main89341-28370×4iZZE122..GLXI,GLXS200402-200409

BLACK

main89341-33030×4iZZE122..GLXI,GLXS200402-200409

WHITE

main89341-33080×4iZZE122..GLXI,GLXS200409

BLACK

main89341-33090×4iZZE122..GLXI,GLXS200409

SILVER

main89341-33100×4iZZE122..GLXI,GLXS200409

WHITE

89341BSENSOR, ULTRASONIC, NO.2

main89341-33040×2iZZE122..GLXI,GLXS200402-200409

GRAY

main89341-33050×2iZZE122..GLXI,GLXS200409

BLACK

main89341-33060×2iZZE122..GLXI,GLXS200409

SILVER

main89341-33070×2iZZE122..GLXI,GLXS200409

WHITE

main89341-52010×2iZZE122..GLXI,GLXS200402-200409

BLACK

main89341-52020×2iZZE122..GLXI,GLXS200402-200409

SILVER

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
