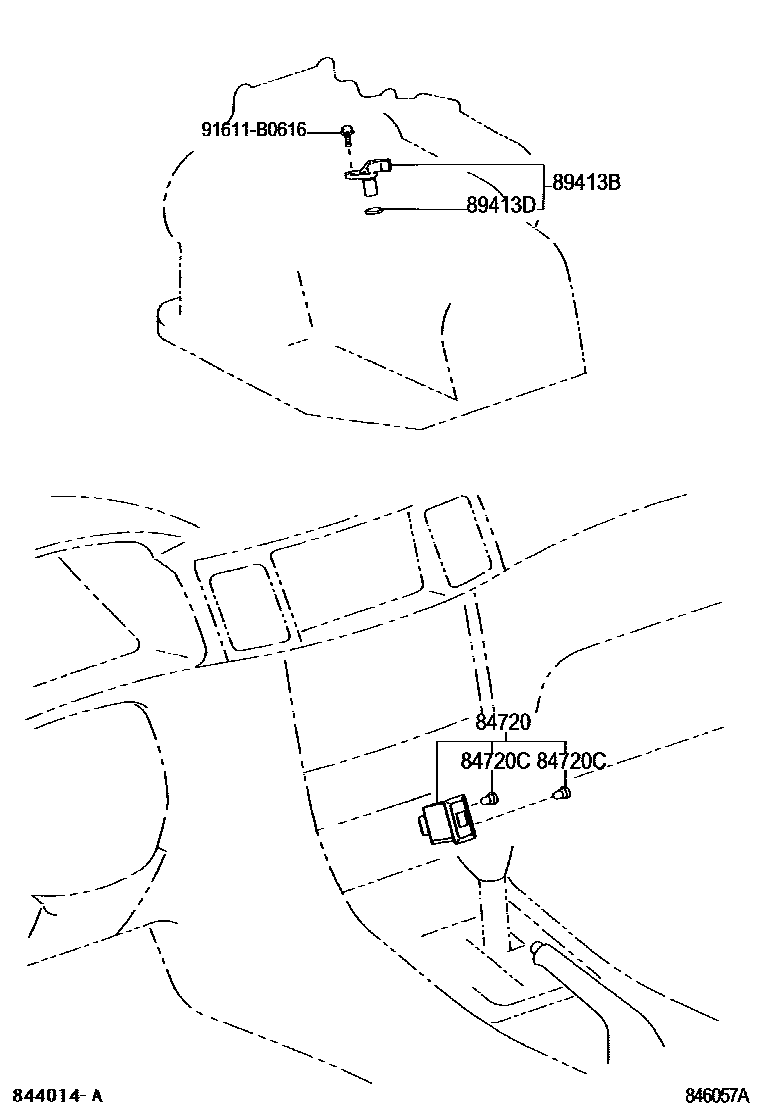

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84720SWITCH ASSY, PATTERN SELECT

main84720-12080iZZE122..4FC200402-200705

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10310iZZE122..4FC200402-200705

14V 0.91W

main90010-01049iZZE122..4FC200402-200705

14V0.91W,YELLOW CAP

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iZZE122..4FC200402-200705

sub89413-32011

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZZE122..4FC200402-200705

91611B0616

main91611-B0616

5 parts on this diagram · 2 diagrams in section
