SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 2/2 0008 1ENGINE ROOM 2/2 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1IGNITION & COMBINATION SWITCH0014 1DOOR,ROOF,FLOOR & LUGGAGE

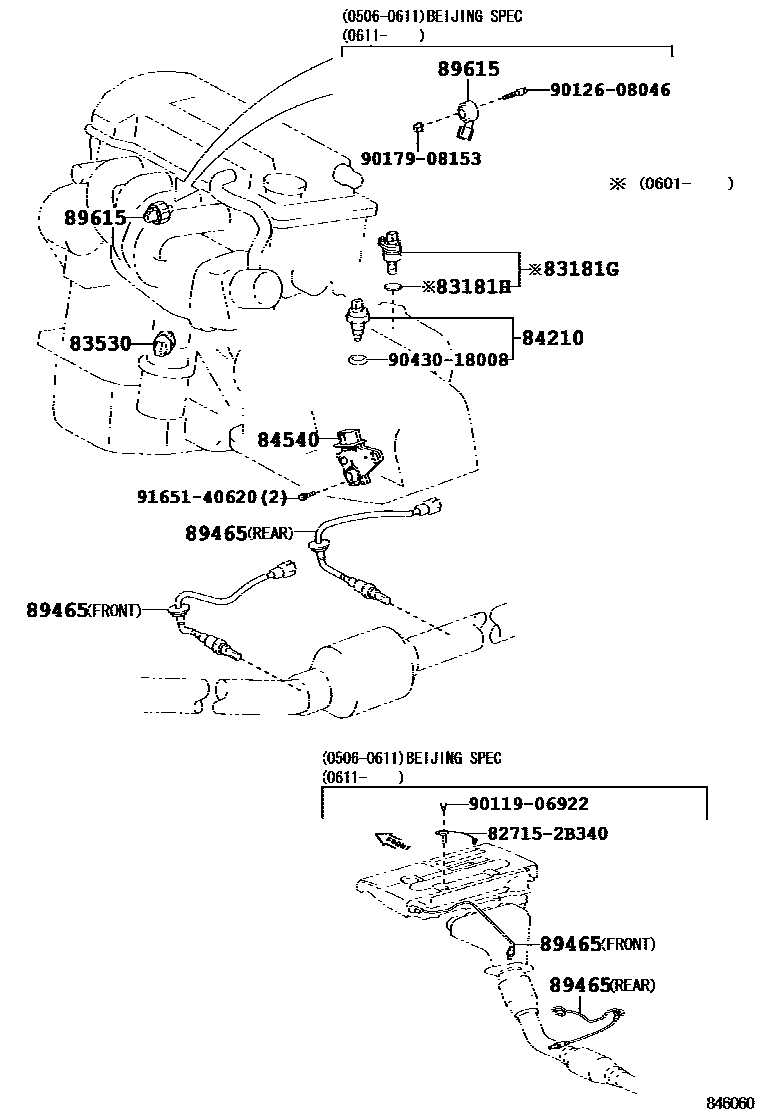

83181GSENSOR, SPEEDOMETER

main83181-12020iZZE122..5F..GLI200601-201702

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iZZE122..5F..GLI200601-201210

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZE122200402-200705

DENSO

main83530-60020iZZE122200402-200705

YAZAKI

main83530-60020iZRE120200705-201210

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZZE122..5F200502-200705

sub84210-52050

main84210-52010iZRE120..5F200705-201702

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE120..4FC200705-201702

main84540-52010iZZE122..4FC200402-200705

P/N LABEL=8454052010

main84540-52050iZZE122..4FC200402-200705

P/N LABEL=8454052050

89465SENSOR, OXYGEN

main89465-02370iZRE120200705-201210

REAR

main89465-12620iZZE122200402-200611

FRONT

main89465-12700iZZE122200402-200611

REAR

main89465-12750iZZE122200506-200611

BEIJING SPEC,REFER TO FIG 22-11,FRONT

main89465-12750iZZE122200611-200705

FRONT

main89465-12760iZZE122200506-200611

BEIJING SPEC,REFER TO FIG 22-11,REAR

main89465-12760iZZE122200611-200705

REAR

main89465-12880iZRE120200705-201011

FRONT

main89467-52060iZRE120201011-201210

FRONT

89615SENSOR, KNOCK CONTROL

main89615-12120iZZE122200402-200611

main89615-20090iZZE122200506-200611

BEIJING SPEC,REFER TO FIG 22-11

main89615-20090iZZE122200611-201210

827152B340BRACKET,WIRING HARNESS CLAMP

main82715-2B340

9011906922

main90119-06922

9012608046

main90126-08046

9017908153

main90179-08153

9043018008

main90430-18008

9165140620

main91651-40620

13 parts on this diagram · 14 diagrams in section
