METER

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

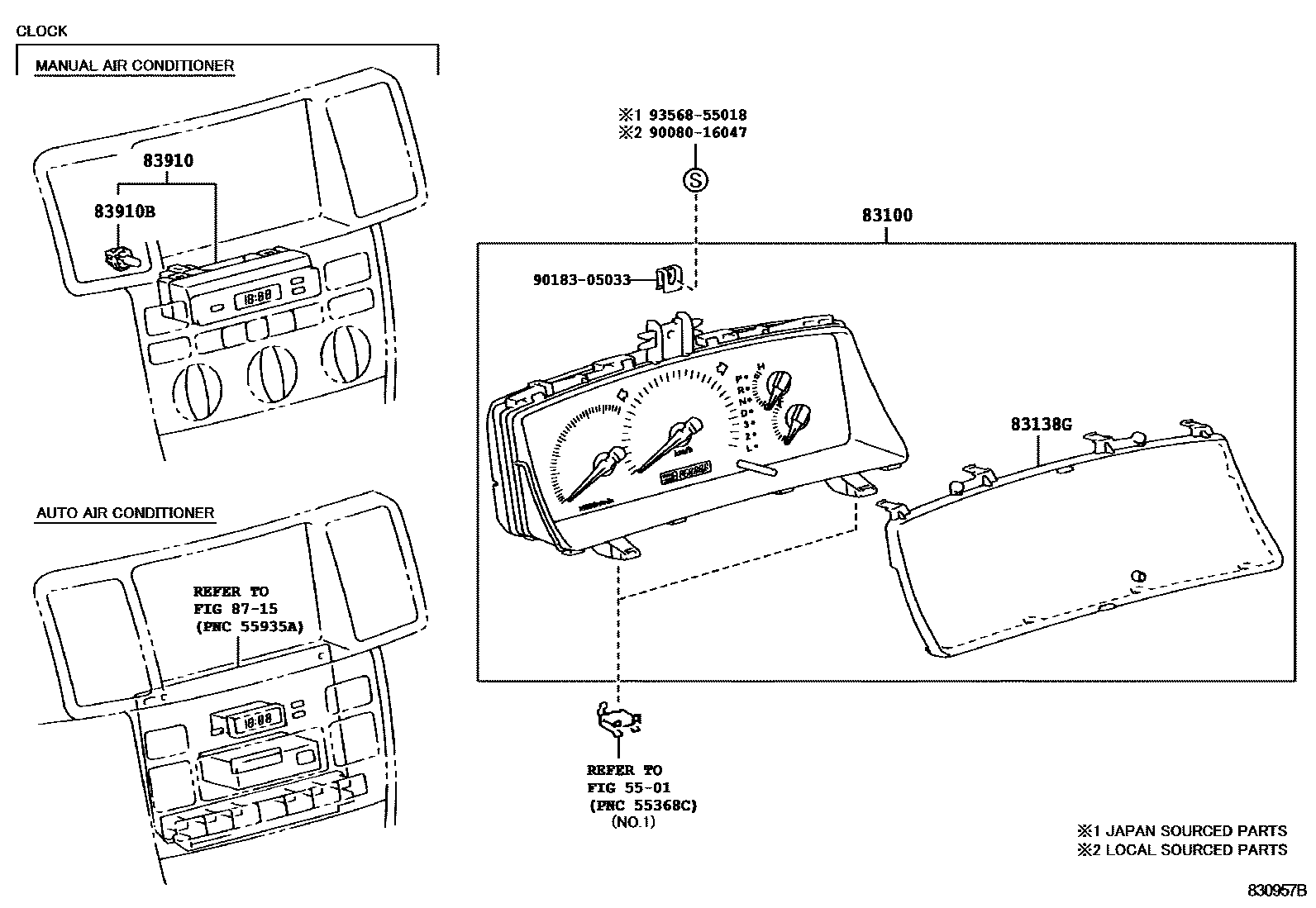

83100METER ASSY, COMBINATION

main83800-02E70iZZE122..4FC200402-200705

main83800-02G10iZZE122..5F200502-200705

OPTITRON METER

main83800-02T40iZZE122..5F..GLI200601-200705

main83800-02V20iZRE120..4FC200705-201210

main83800-02V30iZRE120..5F200705-201210

main83800-02V40iZRE120..5F200705-201210

DLX PACKAGE

main83800-YK010iZRE120..4FC201210

main83800-YK020iZRE120..5F201210

W(LIGHT REMINDER)

main83800-YK030iZRE120..5F201210

83138GGLASS, COMBINATION METER

main83852-02590iZZE122..5F..GLI200601-200705

main83852-02E70iZZE122200402-200705

OPTITRON METER

main83852-02V20iZRE120200705-201210

main83852-YK010iZRE120201210

83910CLOCK ASSY

main83910-02120iZRE120200705-200906

main83910-02121iZRE120200907-201109

main83910-02122iZRE120201110-201210

main83910-12560iZZE122..GLI200402-200705

83910BBULB, CLOCK INDICATOR

main90010-07018iZZE122..GLI200402-200705

14V 1.12W

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9008016047

main90080-16047

9018305033

main90183-05033

9356855018

main93568-55018

9 parts on this diagram · 2 diagrams in section
