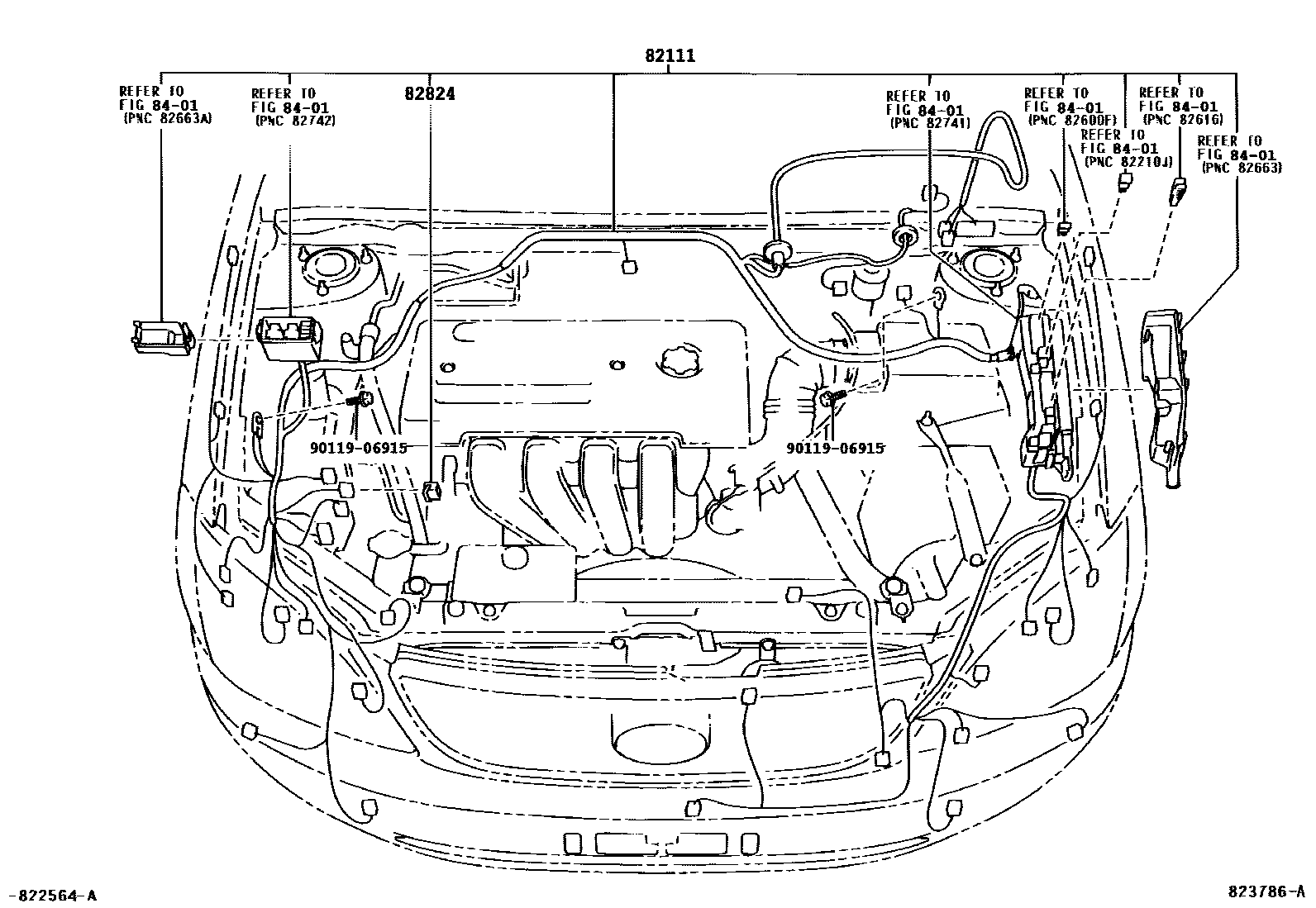

82111WIRE, ENGINE ROOM MAIN

main82111-02P90iZZE122..GLI200402-200506

main82111-02P91iZZE122..GLI200506-200601

1TH ANNIVERSARY PACKAGE

main82111-02P92iZZE122..GLI200601-200705

1TH ANNIVERSARY PACKAGE

main82111-02Q00iZZE122..GLXI,GLXS200402-200506

main82111-02Q01iZZE122..GLXI,GLXS200506-200705

main82111-0Z340iZRE120200705-201005

main82111-YK010iZRE120..4FC201506

COLD SPEC

main82111-YK020iZRE120..5F201506

COLD SPEC

main82111-YK030iZRE120..4FC201506

main82111-YK040iZRE120..5F201506

main82116-02K50iZRE120..4FC201011-201210

main82116-02K60iZRE120..5F201011-201210

main82116-02M00iZRE120201005-201011

82824CONNECTOR, WIRING HARNESS

main82824-12300iZZE122200402-200705

8401

9011906915

main90119-06915

4 parts on this diagram · 13 diagrams in section
