BATTERY & BATTERY CABLE

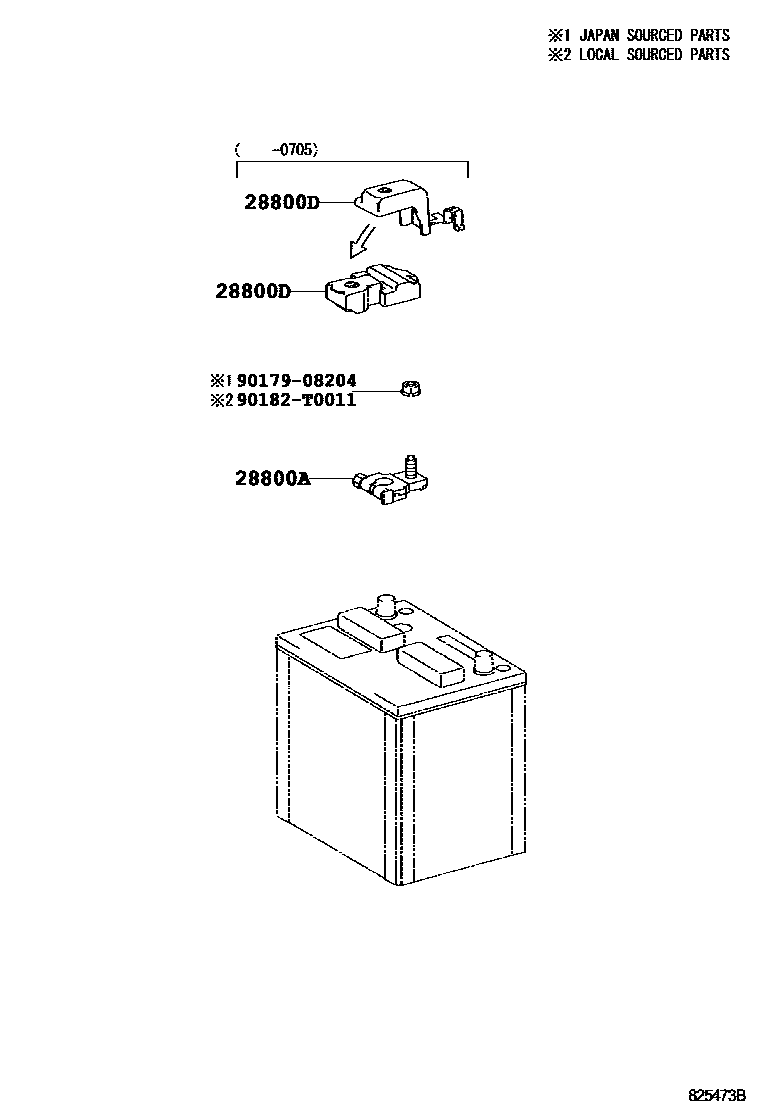

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i200402-200705

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-12010i200705-201210

main82821-12500i200402-200705

9017908204

main90179-08204

90182T0011

main90182-T0011

4 parts on this diagram · 1 diagram in section
