Toyota 153350 — INTERIOR LAMP

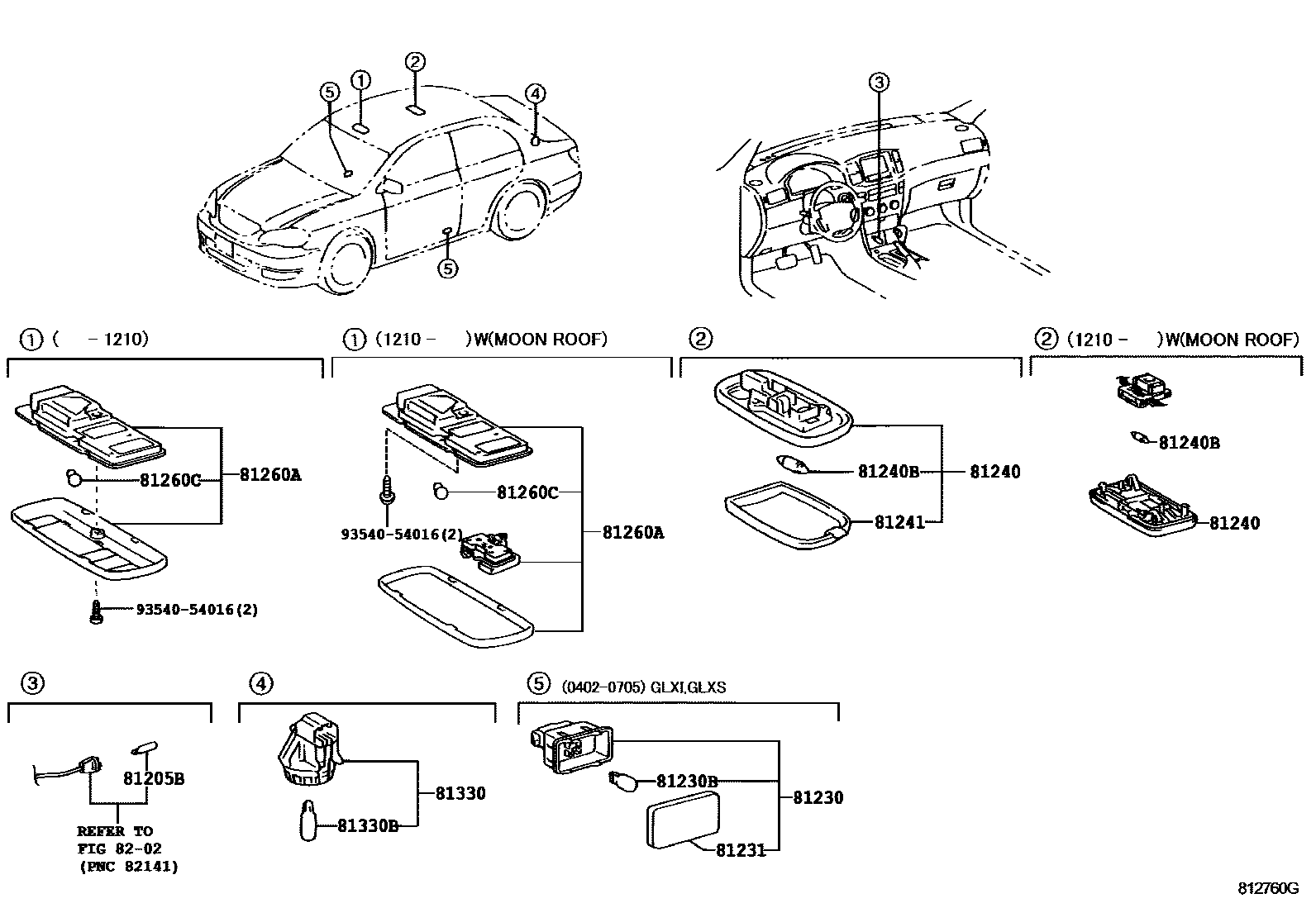

Parts diagram

81205BBULB, ASH RECEPTACLE LAMP

81230LAMP ASSY, COURTESY

81230BBULB(FOR COURTESY LAMP)

81231LENS, COURTESY LAMP

81240LAMP ASSY, ROOM, NO.1

81240BBULB, ROOM LAMP, NO.1

81241LENS, ROOM LAMP, NO.1

81260ALAMP ASSY, MAP

81260CBULB(FOR MAP LAMP)

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

81330BBULB, LUGGAGE COMPARTMENT LAMP

8202WIRING & CLAMP

→ Go to FIG 82-02

9354054016

13 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota 153350

This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 153350. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1.
