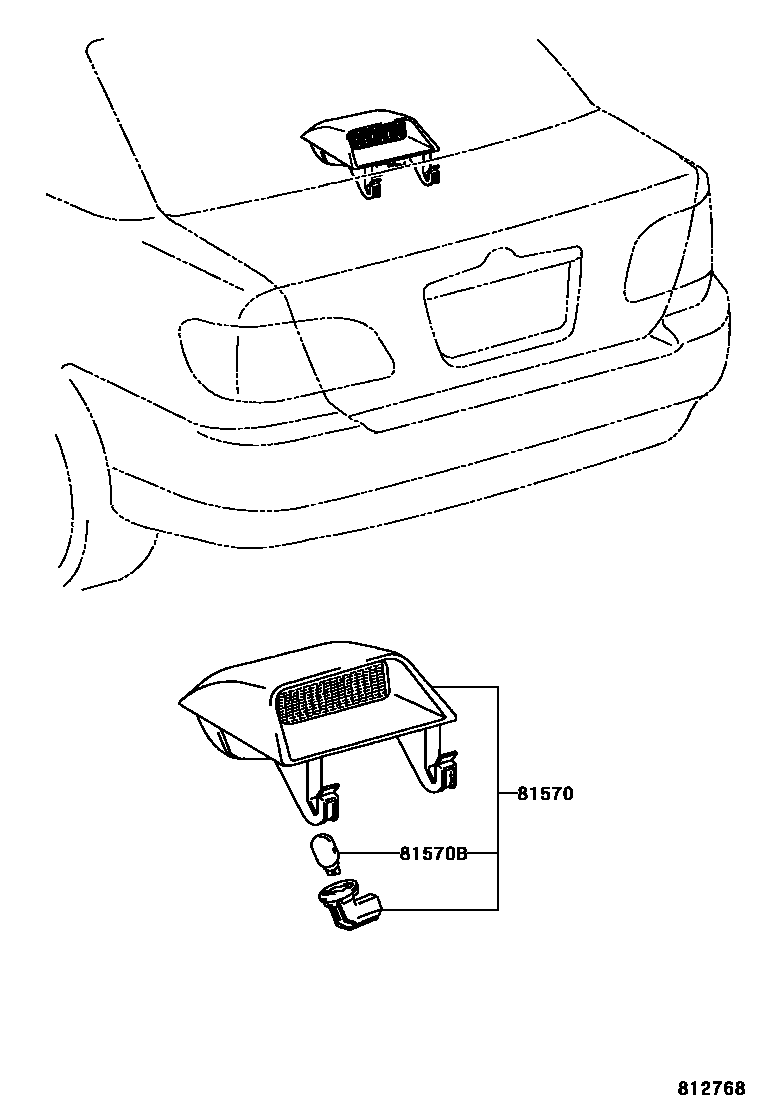

CENTER STOP LAMP

0001 1 0003 1

81570LAMP ASSY, CENTER STOP

main81570-0D020-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main81570-0D021-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main81570-12360iZZE122..GLXS200408-200611

main81570-12361iZZE122..GLXS200611-200705

main81570-YK010-A0iZRE120201210-201702

IVORY,TRIM0#

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iZZE122..GLI,GLXI200402-200705

12V 16W

main90981-11059iZRE120200705-201210

12V 16W

2 parts on this diagram · 2 diagrams in section
