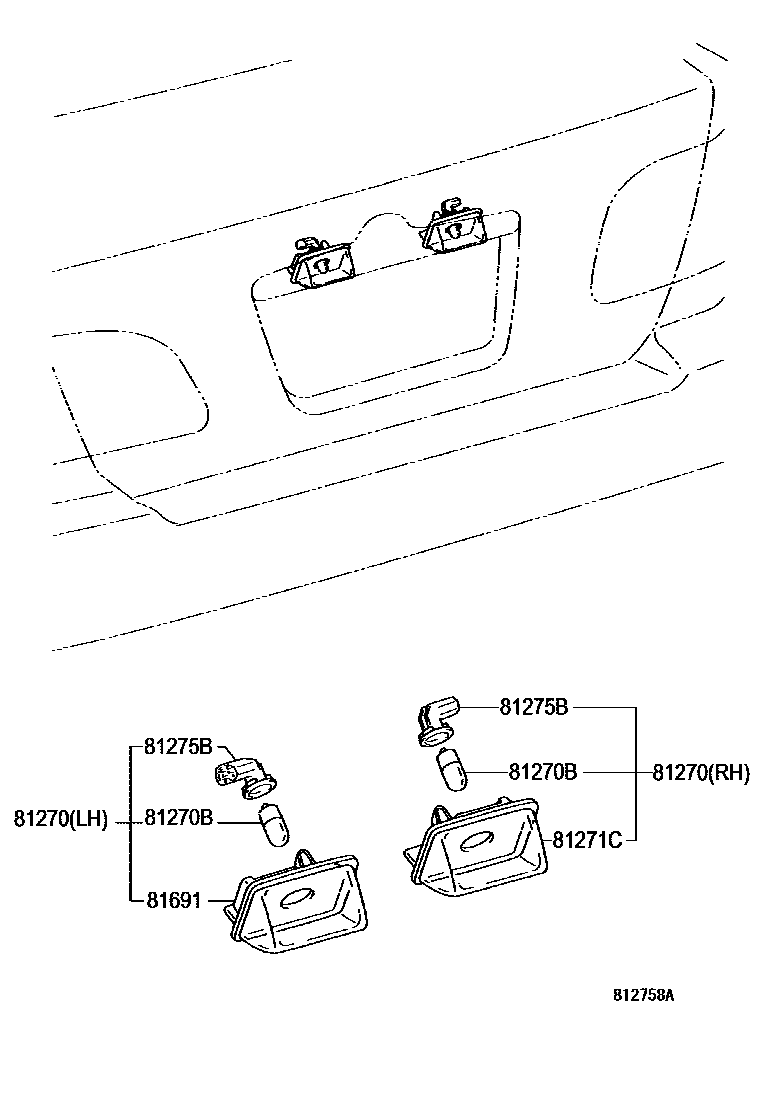

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-02111iZZE122200402-200611

RH

main81270-02112iZZE122200611-200612

RH

main81270-02113iZZE122200612-200705

RH

main81270-02180iZRE120200705-201210

RH

main81270-YK010iZRE120201210

RH

main81690-02091iZZE122200402-200611

LH

main81690-02092iZZE122200611-200612

LH

main81690-02093iZZE122200612-200705

LH

main81690-02120iZRE120200705-201210

LH

main81690-YK010iZRE120201210

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iZZE122200402-201210

12V 5W

81271CLENS & COVER, LICENSE PLATE LAMP, RH

main81271-02180iZRE120200705-201210

main81271-8C003iZZE122200402-200705

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81275-12501iZRE120200705-201210

main81275-8C000iZZE122200402-200705

81691LENS & COVER, LICENSE PLATE LAMP, LH

main81691-02120iZRE120200705-201210

main81691-8C002iZZE122200402-200705

5 parts on this diagram · 2 diagrams in section
