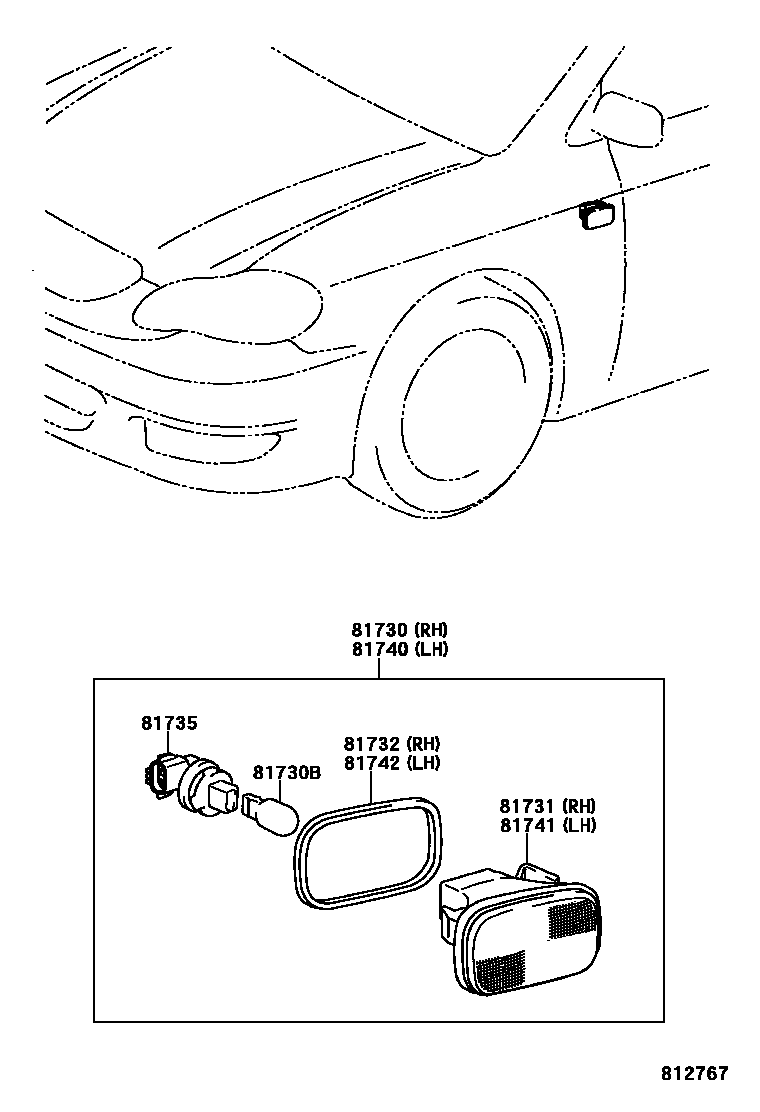

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0D020iZZE122200402-200610

main81730-0D021iZZE122200611-200705

main81730-12230iZRE120201210-201702

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-15012×2iZZE122200402-200705

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-0D020iZZE122200402-200610

main81731-0D021iZZE122200611-200705

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-0D020iZZE122200402-200705

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90069-81037×2iZZE122200402-200705

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-0D020iZZE122200402-200610

main81730-0D021iZZE122200611-200705

main81740-12150iZRE120201210-201702

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-0D020iZZE122200402-200610

main81731-0D021iZZE122200611-200705

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-0D020iZZE122200402-200705

8 parts on this diagram · 2 diagrams in section
