FOG LAMP

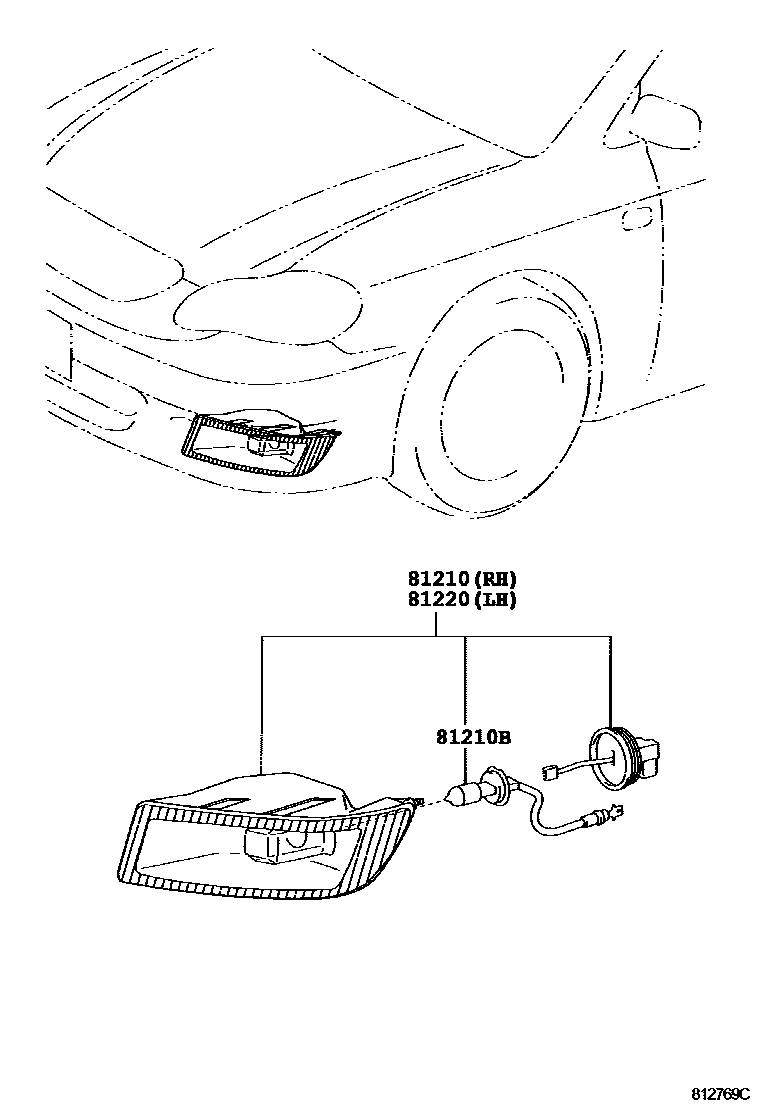

Parts diagram

81210LAMP ASSY, FOG

main81210-02100i200402-200610

main81210-02101i200611-200705

main81210-06052i201005-201210

main81210-0D100i201506

81210BBULB, FOG LAMP

main90981-13018×2i200402-200610

12V 55W,HALOGEN

main90981-13075i201005-201210

12V 55W,HALOGEN,PHILIPS

main90981-13081i201005-201210

12V 55W,HALOGEN,OSRAM

main90981-CD003×2i201506

12V 19W

81220LAMP ASSY, FOG, LH

main81220-02080i200402-200610

main81220-02081i200611-200705

main81220-06052i201005-201210

main81220-0D100i201506

3 parts on this diagram · 2 diagrams in section
