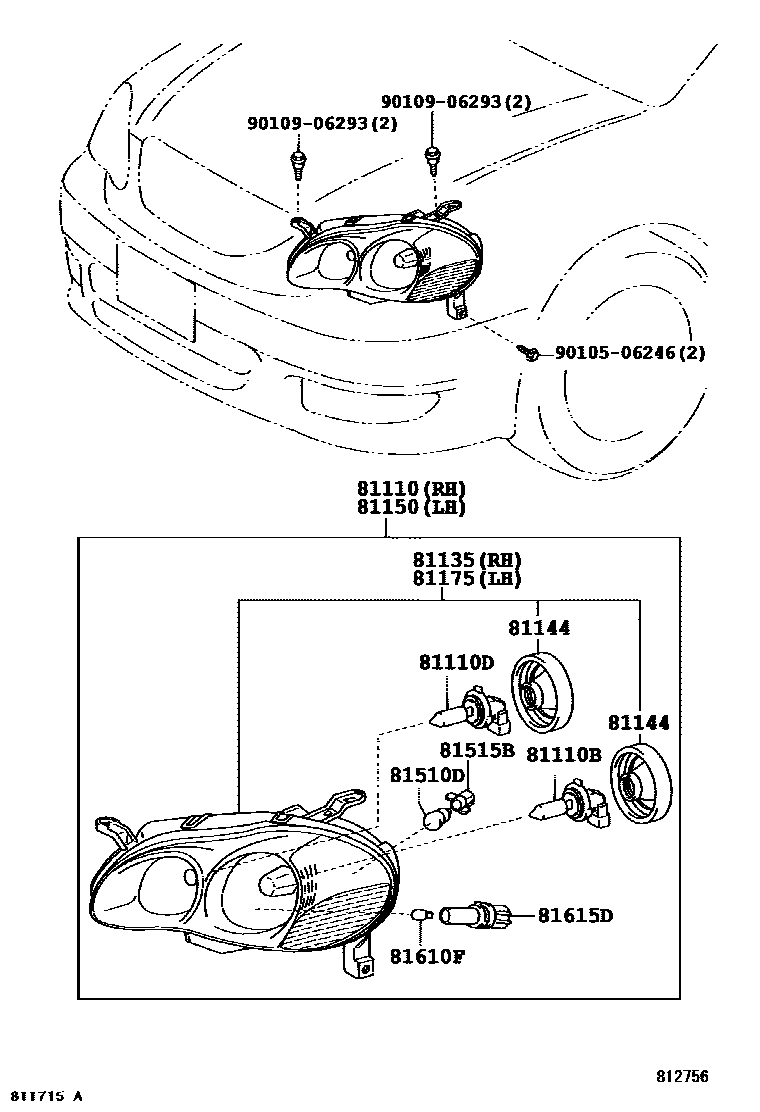

HEADLAMP

0001 1 0002 1 0003 1

81110HEADLAMP ASSY, RH

main81110-02400iZZE122200402-200606

main81110-02640iZZE122200606-200610

main81110-02641iZZE122200611-200705

main81110-YK010iZRE120201005-201210

main81110-YK020iZRE120201210-201506

main81110-YK040iZRE120201506

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZRE120201210

12V65W(SAE),60W(ECE)

main90981-13047×2iZZE122200402-200610

12V 51W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iZZE122200611-200705

12V 65W

main90981-13046×2iZRE120200902-201210

12V65W(SAE),60W(ECE)

81135UNIT ASSY, HEADLAMP, RH

main81130-02400iZZE122200402-200606

main81130-02640iZZE122200606-200705

main81130-YK010iZRE120201005-201210

81144COVER, HEADLAMP, NO.1

main81135-02400×4iZZE122200402-200705

main81135-YK010×4iZRE120201005-201210

81150HEADLAMP ASSY, LH

main81150-02370iZZE122200402-200606

main81150-02640iZZE122200606-200610

main81150-02641iZZE122200611-200705

main81150-YK010iZRE120201005-201210

main81150-YK020iZRE120201210-201506

main81150-YK040iZRE120201506

81175UNIT ASSY, HEADLAMP, LH

main81170-02370iZZE122200402-200603

main81170-02640iZZE122200606-200705

main81170-YK010iZRE120201005-201210

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iZZE122200402-200610

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-02400×2iZZE122200402-200705

main81128-YK010×2iZRE120201005-201210

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZZE122200402-200610

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-02400×2iZZE122200402-200705

main81138-YK010×2iZRE120201005-201210

9010506246

main90105-06246

9010906293

main90109-06293

13 parts on this diagram · 3 diagrams in section
