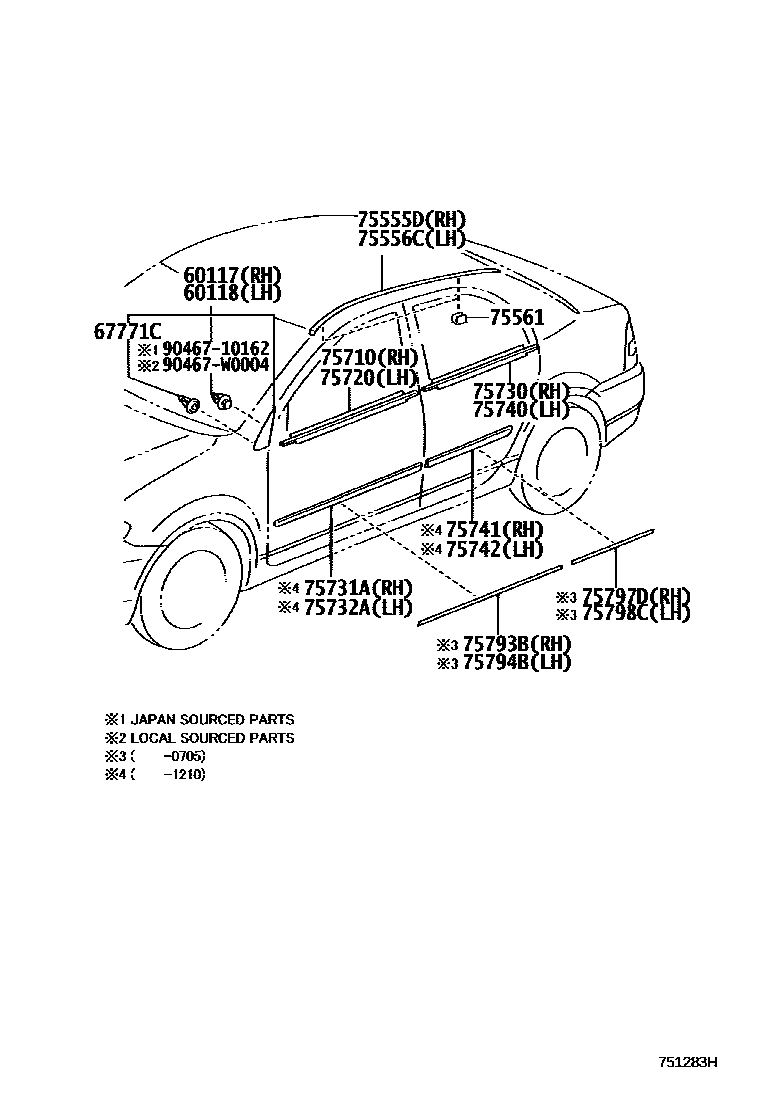

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02030iZZE122200402-200705

main60117-02100iZRE120200710-201210

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02030iZZE122200402-200705

main60118-02100iZRE120200710-201210

67771CRETAINER, FRONT PILLAR COVER

main67772-95J03×2iZZE122200402-200705

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02130iZRE120200705-201108

main75555-02131iZRE120201109-201210

main75555-12120iZZE122200402-200705

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02130iZRE120200705-201108

main75556-02131iZRE120201109-201210

main75556-12120iZZE122200402-200705

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020×4iZZE122200402-200705

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02120iZZE122200402-200603

main75710-02121iZZE122200604-200705

main75710-02200iZRE120200705-201210

main75710-12742iZZE122..5F..GLI200601-200705

GLX-I SPECIAL EDITION

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02120iZZE122200402-200603

main75720-02121iZZE122200604-200705

main75720-02200iZRE120200705-201210

main75720-12742iZZE122..5F..GLI200601-200705

GLX-I SPECIAL EDITION

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02110iZZE122200402-200603

main75730-02111iZZE122200604-200705

main75730-02180iZRE120200705-201210

main75730-12262iZZE122..5F..GLI200601-200705

GLX-I SPECIAL EDITION

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75071-02040-A0iZRE120200705-201210

WHITE,056

sub75071-02905

sub75793-02030

main75071-02040-B0iZRE120200705-201005

SILVER ME.,1D0

sub75071-02905

sub75793-02030

main75071-02040-B1iZRE120201005-201210

SILVER ME.,1F7

sub75071-02905

sub75793-02030

main75071-02040-C0iZRE120200705-201210

BLACK MC.,209

sub75071-02905

sub75793-02030

main75071-02040-D0iZRE120201108-201210

RED M.M.,3P1

sub75071-02905

sub75793-02030

main75071-02040-F0iZRE120200705-201005

CHAMPAGNE ME.,586

sub75071-02905

sub75793-02030

main75071-02040-J0iZRE120201005-201210

BLUE ME.,8T4

sub75071-02905

sub75793-02030

main75071-02900iZZE122200402-200705

PAINT REQ.

main75731-02900iZZE122..5F..GLI200601-200705

PAINT REQ.,GLX-I SPECIAL EDITION

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02110iZZE122200402-200603

main75740-02111iZZE122200604-200705

main75740-02180iZRE120200705-201210

main75740-12352iZZE122..5F..GLI200601-200705

GLX-I SPECIAL EDITION

75741MOULDING, REAR DOOR, OUTSIDE RH

main75075-02040-A0iZRE120200705-201210

WHITE,056

sub75075-02905

sub75797-02030

main75075-02040-B0iZRE120200705-201005

SILVER ME.,1D0

sub75075-02905

sub75797-02030

main75075-02040-B1iZRE120201005-201210

SILVER ME.,1F7

sub75075-02905

sub75797-02030

main75075-02040-C0iZRE120200705-201210

BLACK MC.,209

sub75075-02905

sub75797-02030

main75075-02040-D0iZRE120201108-201210

RED M.M.,3P1

sub75075-02905

sub75797-02030

main75075-02040-F0iZRE120200705-201005

CHAMPAGNE ME.,586

sub75075-02905

sub75797-02030

main75075-02040-J0iZRE120201005-201210

BLUE ME.,8T4

sub75075-02905

sub75797-02030

main75075-02900iZZE122200402-200705

PAINT REQ.

main75741-02900iZRE120..5F200705-201210

PAINT REQ.,DLX PACKAGE

75742MOULDING, REAR DOOR, OUTSIDE LH

main75076-02040-A0iZRE120200705-201210

WHITE,056

sub75076-02906

sub75798-02030

main75076-02040-B0iZRE120200705-201005

SILVER ME.,1D0

sub75076-02906

sub75798-02030

main75076-02040-B1iZRE120201005-201210

SILVER ME.,1F7

sub75076-02906

sub75798-02030

main75076-02040-C0iZRE120200705-201210

BLACK MC.,209

sub75076-02906

sub75798-02030

main75076-02040-D0iZRE120201108-201210

RED M.M.,3P1

sub75076-02906

sub75798-02030

main75076-02040-F0iZRE120200705-201005

CHAMPAGNE ME.,586

sub75076-02906

sub75798-02030

main75076-02040-J0iZRE120201005-201210

BLUE ME.,8T4

sub75076-02906

sub75798-02030

main75076-02900iZZE122200402-200705

PAINT REQ.

main75742-02900iZZE122..5F..GLI200601-200705

PAINT REQ.,GLX-I SPECIAL EDITION

75793BINSERT, FRONT DOOR OUTSIDE MOULDING, RH

main75793-02010iZZE122200402-200705

75794BINSERT, FRONT DOOR OUTSIDE MOULDING, LH

main75794-02010iZZE122200402-200705

75797DINSERT, REAR DOOR OUTSIDE MOULDING, RH

main75797-02010iZZE122200402-200705

75798CINSERT, REAR DOOR OUTSIDE MOULDING, LH

main75798-02010iZZE122200402-200705

9046710162

main90467-10162

90467W0004

main90467-W0004

19 parts on this diagram · 1 diagram in section
