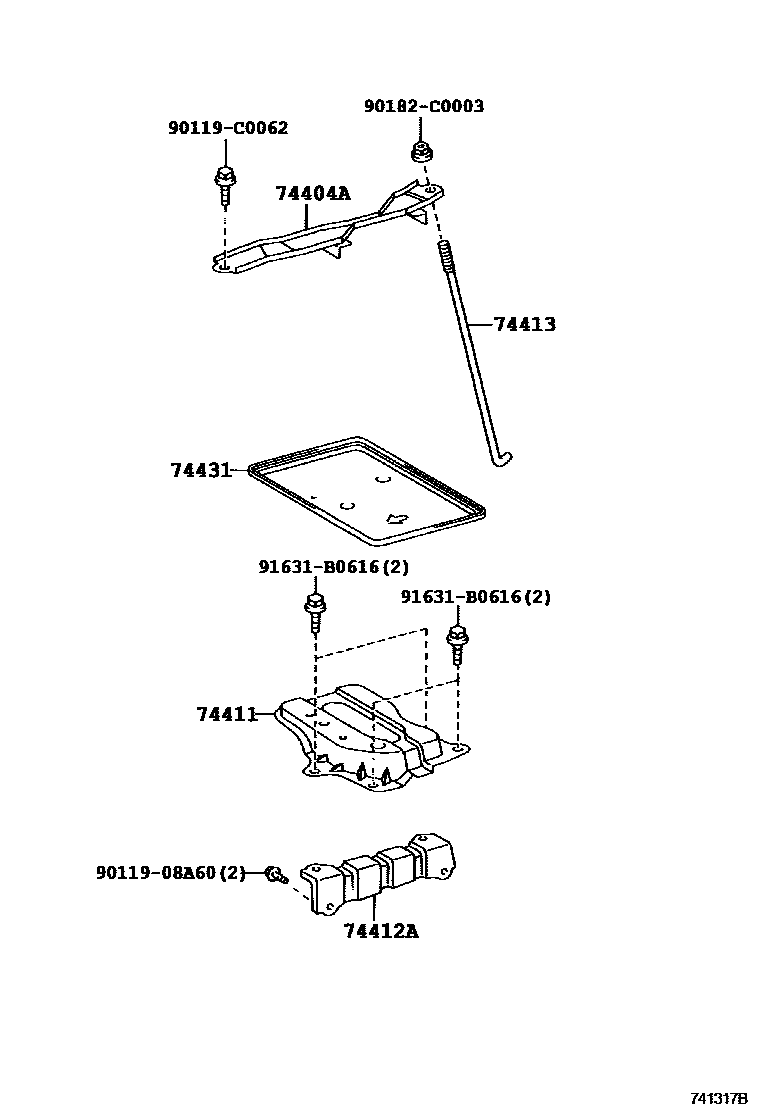

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-13030iZRE120201210

74411CARRIER, BATTERY

main74411-02140iZRE120200911-201210

main74411-12140iZZE122200402-200705

74412ACARRIER, BATTERY, NO.2

main74412-02160iZRE120201210-201608

(L)

main74412-12020iZRE120200705-201210

74413BOLT, BATTERY CLAMP

main74451-12130iZZE122200402-200507

main74451-12140iZZE122200508-200705

74431TRAY, BATTERY

main74431-02130iZZE122200402-200705

9011908A60

main90119-08A60

90119C0062

main90119-C0062

90182C0003

main90182-C0003

91631B0616

main91631-B0616

9 parts on this diagram · 1 diagram in section
