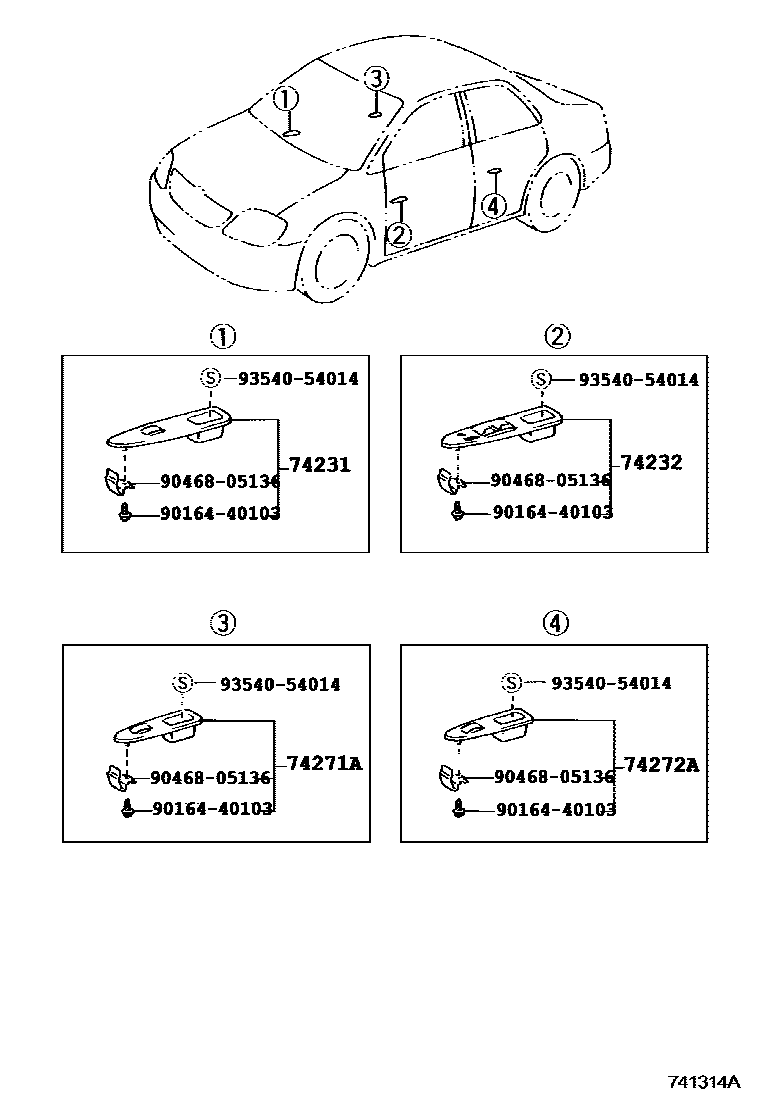

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02160-A0iZZE122..GLI200402-200705

IVORY,TRIM0#

main74231-02460-B0iZZE122..GLXS200408-200705

SILVER,TRIM1#

main74231-02470-E0iZZE122..GLXI200402-200705

BROWN,TRIM0#

main74231-02D90-A0iZRE120..5F201206-201210

IVORY,TRIM0#

main74231-02E00-B0iZRE120201106-201210

21SV26,TRIM0#

main74231-12460-A1iZRE120..5F200705-201205

IVORY,TRIM0#

main74231-12C30-B1iZRE120200910-201105

SILVER,TRIM0#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02160-A0iZZE122..GLI200402-200705

IVORY,TRIM0#

main74232-02450-B0iZZE122..GLXS200408-200705

SILVER,TRIM1#

main74232-02471-E0iZZE122..GLXI200402-200705

BROWN,TRIM0#

main74232-02E50-A0iZRE120..5F201210-201702

IVORY,TRIM0#

main74232-02E60-B0iZRE120201210-201702

21SV26,TRIM0#

main74232-12370-A1iZRE120..5F200705-201206

IVORY,TRIM0#

main74232-12A20-B1iZRE120200910-201105

SILVER,TRIM0#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02010-A1iZZE122..GLI200402-200705

IVORY,TRIM0#

main74271-02110-B0iZZE122..GLXS200408-200705

SILVER,TRIM1#

main74271-02120-E0iZZE122..GLXI200402-200705

BROWN,TRIM0#

main74271-02640-A0iZRE120..5F201210-201702

IVORY,TRIM0#

main74271-02650-B0iZRE120201210-201702

21SV26,TRIM0#

main74271-12020-A1iZRE120..5F200705-201208

IVORY,TRIM0#

main74271-12440-B1iZRE120200910-201105

SILVER,TRIM0#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02010-A1iZZE122..GLI200402-200705

IVORY,TRIM0#

main74272-02100-B0iZZE122..GLXS200408-200705

SILVER,TRIM1#

main74272-02110-E0iZZE122..GLXI200402-200705

BROWN,TRIM0#

main74272-02640-A0iZRE120..5F201208-201210

IVORY,TRIM0#

main74272-02650-B0iZRE120201210-201702

21SV26,TRIM0#

main74272-12020-A1iZRE120..5F200705-201207

IVORY,TRIM0#

main74272-12450-B1iZRE120200910-201105

SILVER,TRIM0#

9016440103

main90164-40103

9046805136

main90468-05136

9354054014

main93540-54014

7 parts on this diagram · 3 diagrams in section
