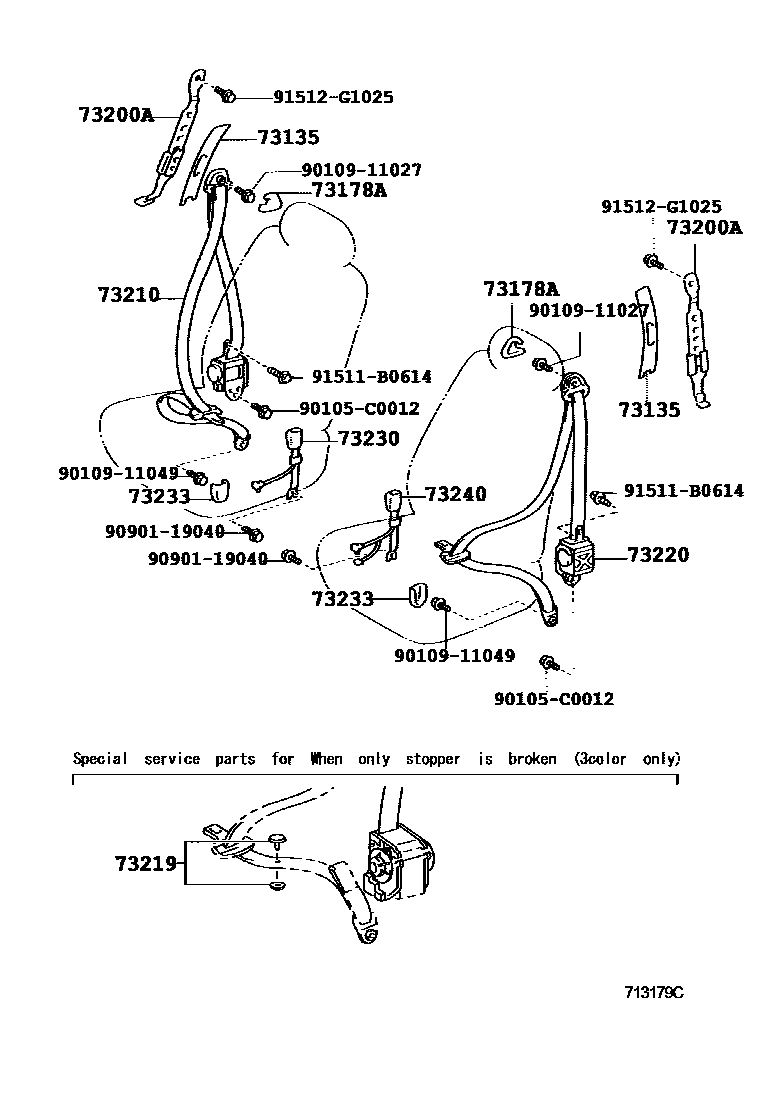

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR SEAT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-A0×2iZZE122..GLI,GLXI200402-200705

IVORY,TRIM0#

main73135-12030-B9×2iZZE122..GLXS200408-200705

LT.GRAY,TRIM1#

main73135-YK010-A0×2iZRE120201303-201702

IVORY,TRIM0#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-A1×2iZRE120200705-201210

IVORY,TRIM0#

main73178-33020-B3×2iZZE122..GLXS200408-200705

LT.GRAY,TRIM1#

main73178-YK010-A0×2iZRE120201404-201702

IVORY,TRIM0#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D010-A0×2iZZE122..GLI,GLXI200402-200705

IVORY,TRIM0#

main73200-0D010-B0×2iZZE122..GLXS200408-200705

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02260-A0iZZE122200402-200408

IVORY,TRIM0#

main73210-02261-A0iZRE120200705-201210

IVORY,TRIM0#

main73210-02261-C0iZZE122..GLXS200408-200705

BLACK,TRIM1#

main73210-YK010-A0iZRE120201303-201702

IVORY,TRIM0#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE120200705-201210

BLACK

main73219-33020iZRE120201210

GRAY

main73219-33030iZRE120200705-201210

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02250-A0iZZE122200402-200408

IVORY,TRIM0#

main73220-02251-A0iZZE122..GLI,GLXI200408-200705

IVORY,TRIM0#

main73220-02251-C0iZZE122..GLXS200408-200705

BLACK,TRIM1#

main73220-YK010-A0iZRE120201303-201702

IVORY,TRIM0#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D020-A0iZRE120201210-201702

IVORY,TRIM0#

main73230-0D020-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1×2iZZE122..GLI,GLXI200402-200705

IVORY,TRIM0#

main73233-33010-B8×2iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02320-A0iZZE122..GLI,GLXI200402-200705

IVORY,TRIM0#

main73230-02320-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

90105C0012

main90105-C0012

9010911027

main90109-11027

9010911049

main90109-11049

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

15 parts on this diagram · 3 diagrams in section
