REAR SEAT & SEAT TRACK

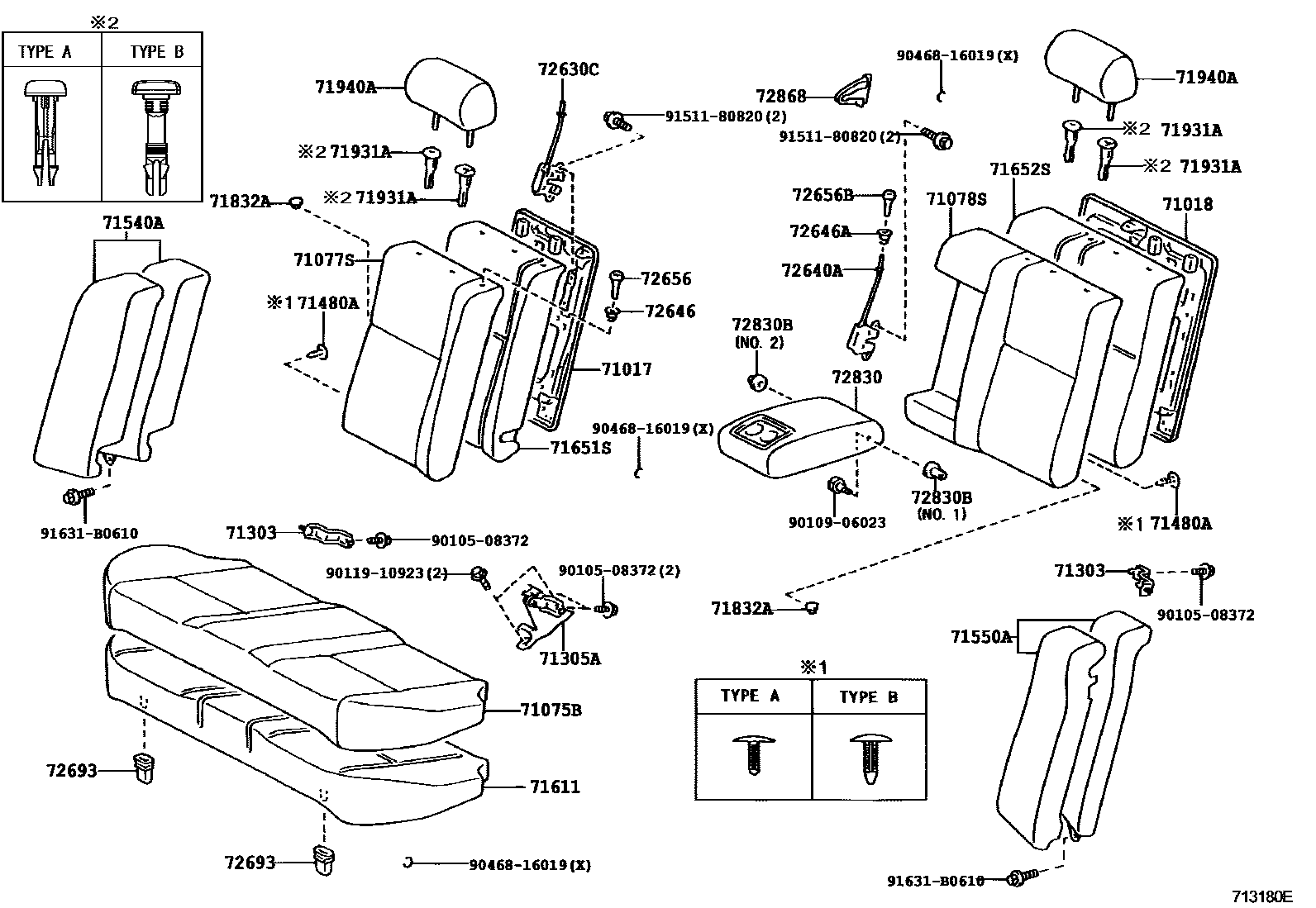

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-02090i200402-200705
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-02050i200402-200705
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-02700-A0i200506-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-02700-A2i200507-200606
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-02701-A4i200606-200610
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-02702-A4i200611-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-02710-A2i200402-200610
SEAT = TYPE C-*104,IVORY,TRIM05
main71075-02710-B1i200502-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71075-02711-A2i200910-201210
SEAT = TYPE C-*104,IVORY,TRIM0#
main71075-02711-B1i200611-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71075-02D80-A1i200601-200610
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-02D81-A1i200611-200705
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-02E00-A2i200705-201005
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71075-02E01
main71075-02M20-A1i201005-201012
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-02M21-A1i201101-201210
IVORY,TRIM0#
main71075-YK010-A0i201210-201702
IVORY,TRIM0#
main71075-YK020-A0i201210-201506
LEATHER SEAT,IVORY,TRIM0#
main71075-YK030-A0i201506-201702
LEATHER SEAT,IVORY,TRIM0#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-02B70-A0i200402-200606
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-02B70-A1i200507-200601
SEAT = TYPE B-*104,IVORY,TRIM05
main71077-02B71-A2i200606-200610
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-02B72-A2i200611-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-02B80-A0i200402-200610
SEAT = TYPE C-*104,IVORY,TRIM0#
main71077-02B80-B0i200408-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71077-02B81-A0i200611-200705
SEAT = TYPE C-*104,IVORY,TRIM0#
main71077-02B81-B0i200611-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-02580-A0i200402-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
main71078-02580-A2i200507-200606
SEAT = TYPE A-*104,IVORY,TRIM0#
main71078-02581-A4i200606-200610
SEAT = TYPE A-*104,IVORY,TRIM0#
main71078-02582-A4i200611-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main71078-02760-A2i200402-200610
SEAT = TYPE C-*104,IVORY,TRIM05
main71078-02760-B1i200408-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM16
main71078-02761-A2i200611-200705
SEAT = TYPE C-*104,IVORY,TRIM0#
main71078-02761-B1i200611-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
71303HINGE SUB-ASSY, REAR SEATBACK
main71303-02070×2i200402-200705
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-02070i200402-200705
71480ACLIP (FOR REAR SEATBACK)
main90467-05021-A1×16i200402-200705
IVORY,TRIM0#,TYPE A:REFER ILLUST.
sub90467-06177
main90467-05021-C0×16i200402-200705
BLACK,TYPE A:REFER ILLUST.
sub90467-06177
main90467-05021-P4×16i200408-200705
LT.GRAY,TRIM1#,TYPE A:REFER ILLUST.
sub90467-06177
main90467-07090-C4×4i200402-200705
BLACK,TRIM0#,TYPE B:REFER ILLUST.
sub90467-07207
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-02440-A0i200502-200601
SEAT = TYPE A-*104,IVORY,TRIM05
main71540-02440-A1i200502-200601
SEAT = TYPE B-*104,IVORY,TRIM05
main71540-02441-A0i200606-200610
SEAT = TYPE A-*104,IVORY,TRIM0#
main71540-02442-A0i200702-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main71540-02450-A0i200402-200610
SEAT = TYPE C-*104,IVORY,TRIM0#
main71540-02450-B0i200408-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71540-02451-A0i200702-200705
SEAT = TYPE C-*104,IVORY,TRIM0#
main71540-02451-B0i200702-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-02280-A0i200601-200606
SEAT = TYPE A-*104,IVORY,TRIM0#
main71550-02280-A1i200502-200601
SEAT = TYPE B-*104,IVORY,TRIM05
main71550-02281-A0i200606-200610
SEAT = TYPE A-*104,IVORY,TRIM0#
main71550-02282-A0i200702-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main71550-02290-A0i200402-200610
SEAT = TYPE C-*104,IVORY,TRIM0#
main71550-02290-B0i200408-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71550-02291-A0i200611-200701
SEAT = TYPE C-*104,IVORY,TRIM0#
main71550-02291-B0i200702-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
main71503-02130i200402-200705
main71503-YK010i201210
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-02240i200402-200705
main71651-02260i200402-200705
LEATHER SEAT
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-02250i200402-200705
main71652-02260i200402-200705
LEATHER SEAT
71832ACLIP, REAR SEATBACK CARPET OR MAT
main90467-09156-C0×4i200402-200705
BLACK,TRIM0#
71931ASUPPORT, REAR SEAT HEADREST
main71930-12070-A5i200402-200705
W(LOCK),IVORY,TRIM0#,TYPE A:REFER ILLUST.
sub71930-10070
main71930-12070-S0i200408-200705
W(LOCK),DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.
sub71930-10070
main71931-12040-A5×2i200705-201210
W/O(LOCK),IVORY,TRIM0#,TYPE A:REFER ILLUST.
sub71931-10020
main71931-12040-S7i200408-200705
W/O(LOCK),DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.
sub71931-10020
main71956-47010-A0i200402-200705
W/O(LOCK),IVORY,TRIM0#,TYPE B:REFER ILLUST.
sub71956-02040
main71956-47010-B2i200408-200705
W/O(LOCK),DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.
sub71956-02040
main71970-47010-A0×2i201210-201702
W(LOCK),IVORY,TRIM0#,TYPE B:REFER ILLUST.
sub71970-02040
main71970-47010-B2i200408-200705
W(LOCK),DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.
sub71970-02040
71940AHEADREST ASSY, REAR SEAT
main71940-02530-A0×2i200402-200606
SEAT = TYPE A-*104,IVORY,TRIM0#
main71940-02531-A2×2i200606-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main71940-02700-A0×2i200402-200705
SEAT = TYPE C-*104,IVORY,TRIM0#
main71940-02700-B0×2i200408-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71940-02A10-A1×2i200601-200705
SEAT = TYPE B-*104,IVORY,TRIM0#
main71940-02A50-A2×2i200705-201005
SEAT = TYPE A-*104,IVORY,TRIM0#
main71940-02E90-A0×2i201005-201012
SEAT = TYPE A-*104,IVORY,TRIM0#
main71940-02E91-A0×2i201101-201210
SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0#
main71940-YK010-A0×2i201210-201501
IVORY,TRIM0#,TRIM = F***
main71940-YK011-A0×2i201501-201702
IVORY,TRIM0#,TRIM = F***
main71940-YK020-A0×2i201210-201501
IVORY,TRIM0#,TRIM = L***
main71940-YK021-A0×2i201501-201702
IVORY,TRIM0#,TRIM = L***
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-02050i200402-200705
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-02050i200402-200705
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-A0i200402-200705
IVORY,TRIM0#
main72646-33010-B4i200408-200705
DK.GRAY,TRIM1#
72646AGROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-A0i200402-200705
IVORY,TRIM0#
main72646-33010-B4i200408-200705
DK.GRAY,TRIM1#
72656BUTTON, REAR SEATBACK STOP RELEASE
main72661-02040-A0i200402-200705
IVORY,TRIM0#
sub72661-32030
main72661-02040-B0i200408-200705
DK.GRAY,TRIM1#
sub72661-32030
72656BBUTTON, REAR SEATBACK STOP RELEASE
main72661-02040-A0i200402-200705
IVORY,TRIM0#
sub72661-32030
main72661-02040-B0i200408-200705
DK.GRAY,TRIM1#
sub72661-32030
72693HOOK, REAR SEAT CUSHION LOCK
main72693-02030×2i200705-200705
main72693-12080×2i200402-200704
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-02290-A0i200507-200601
SEAT = TYPE A-*104,IVORY,TRIM05
main72830-02290-A1i200507-200601
SEAT = TYPE B-*104,IVORY,TRIM05
main72830-02291-A0i200606-200705
SEAT = TYPE A-*104,IVORY,TRIM0#
main72830-02300-A0i200402-200705
SEAT = TYPE C-*104,IVORY,TRIM0#
main72830-02310-B0i200408-200705
DK.GRAY,TRIM16
main72830-02310-B1i200408-200705
SEAT = TYPE C-*104,DK.GRAY,TRIM16
72830BBUSH(FOR REAR SEAT CENTER ARMREST)
main90386-06011i200402-200705
NO.1
main90386-08077i200402-200705
NO.2
72868COVER, CENTER ARMREST HINGE, RH
main72868-02020-A0i200402-200705
IVORY,TRIM0#
main72868-02020-B0i200408-200705
DK.GRAY,TRIM1#
9010508372
main90105-08372
9010906023
main90109-06023
9011910923
main90119-10923
9046816019
main90468-16019
9151180820
main91511-80820
91631B0610
main91631-B0610
