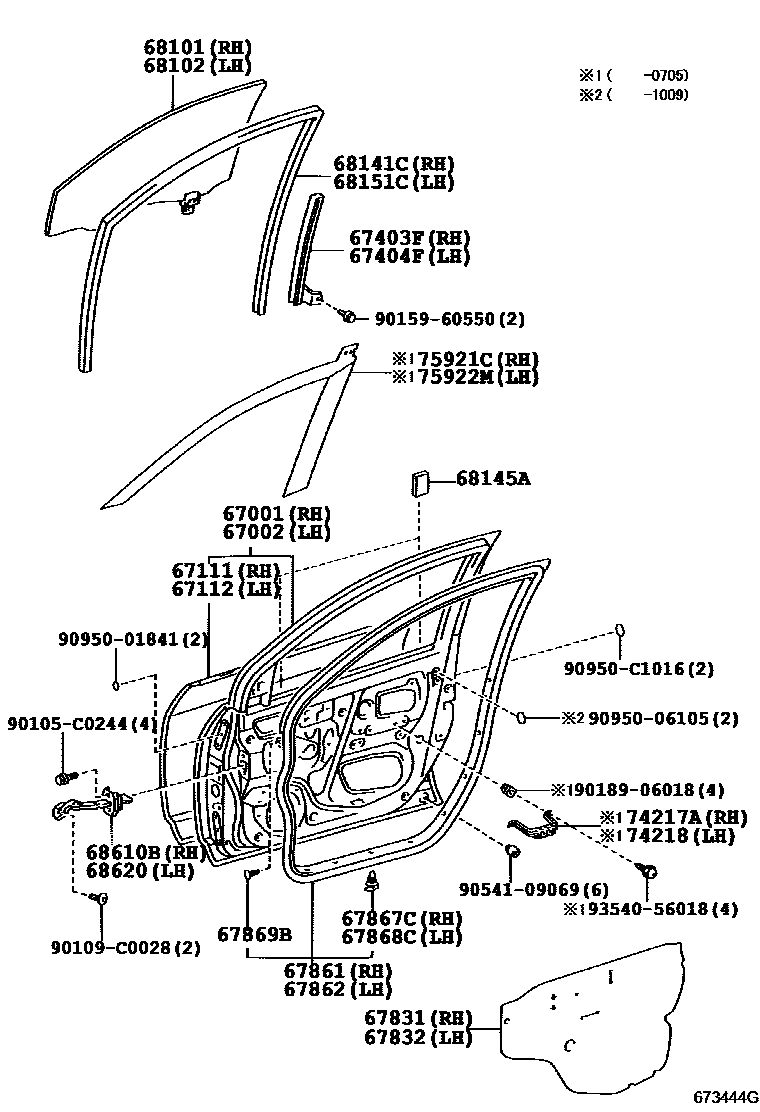

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM 0004 1TRIM CODE

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02250iZRE120200705-201210

sub67001-YK020

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02250iZZE122200402-200705

sub67002-YK020

67111PANEL, FRONT DOOR, OUTER RH

main67111-02120iZZE122200402-200705

67112PANEL, FRONT DOOR, OUTER LH

main67112-02120iZRE120201210

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02080iZRE120200705-201210

sub67403-YK010

main67403-12220iZZE122200402-200705

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02080iZRE120201210-201702

sub67404-YK010

main67404-12200iZZE122200402-200705

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02090iZZE122200402-200705

main67831-02270iZRE120200711-201210

main67831-12630iZRE120200705-200711

main67831-YK010iZRE120201210

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02090iZZE122200402-200705

main67832-02270iZRE120200711-201210

main67832-12410iZRE120200705-200711

main67832-YK010iZRE120201210

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02150iZRE120200705-201210

main67861-12A00iZZE122200402-200410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02150iZRE120201210

main67862-12A00iZZE122200402-200410

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×14iZZE122200402-200705

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×14iZRE120200705-201210

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12050×2iZZE122200402-200705

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02200iZZE122200402-200506

*TT,T=3.5,GREEN

main68101-02201iZZE122200506-200705

*TT,T=3.5,GREEN

main68101-YK010iZRE120201210-201504

*TT,T=3.5,CLEAR

main68101-YK011iZRE120201505

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02200iZZE122200402-200506

*TT,T=3.5,GREEN

main68102-02201iZZE122200506-200705

*TT,T=3.5,GREEN

main68102-YK010iZRE120201210-201504

*TT,T=3.5,CLEAR

main68102-YK011iZRE120201505

68141CRUN, FRONT DOOR GLASS, RH

main68141-02290iZRE120201210-201310

main68141-12511iZZE122200402-200510

main68141-12512iZZE122200510-200511

main68141-YK010iZRE120201311

68145ACUSHION, FRONT DOOR WINDOW

main69759-02090×4iZRE120200705-201210

68151CRUN, FRONT DOOR GLASS, LH

main68151-02270iZRE120201210-201310

main68151-12211iZZE122200402-200510

main68151-12212iZZE122200510-200511

main68151-YK010iZRE120201311

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0D020iZZE122200402-200705

main68610-0D021iZRE120201101-201210

68620CHECK ASSY, FRONT DOOR, LH

main68620-0D020iZZE122200402-200705

main68620-0D021iZRE120201101-201210

74217AREINFORCEMENT, DOOR ARMREST, FRONT RH

main74217-02010iZZE122200402-200705

74218REINFORCEMENT, DOOR ARMREST, FRONT LH

main74218-02010iZZE122200402-200705

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02050iZZE122..GLXI,GLXS200402-200705

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02050iZZE122..GLXI,GLXS200402-200705

90105C0244

main90105-C0244

90109C0028

main90109-C0028

9015960550

main90159-60550

9018906018

main90189-06018

9054109069

main90541-09069

9095001841

main90950-01841

9095006105

main90950-06105

90950C1016

main90950-C1016

9354056018

main93540-56018

33 parts on this diagram · 4 diagrams in section
