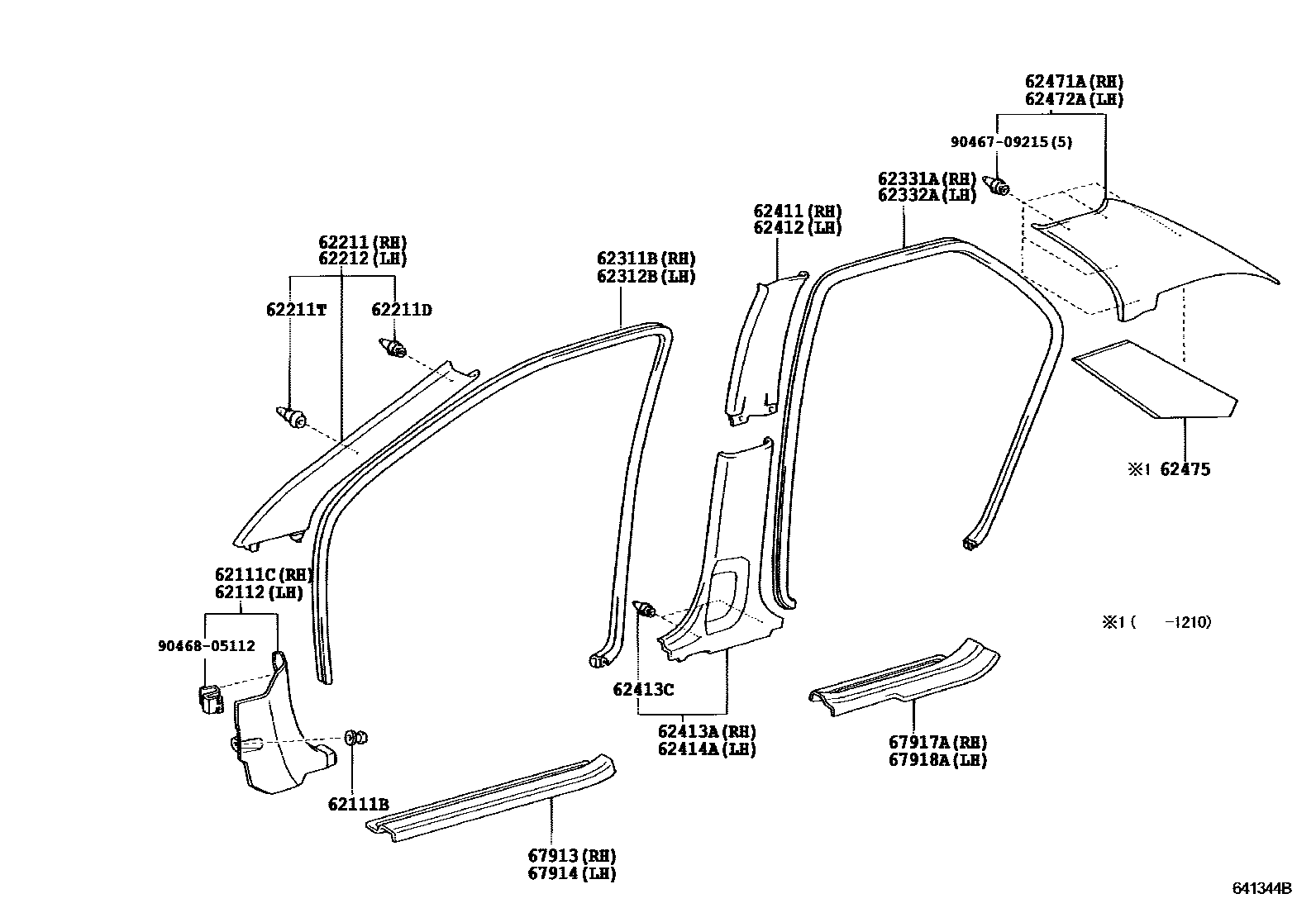

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06120×2iZRE120200705-201210

62111CBOARD, COWL SIDE TRIM, RH

main62111-02060-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main62111-02060-B1iZZE122..GLXS200408-200610

DK.GRAY,TRIM1#

main62111-02061-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main62111-02061-B1iZZE122..GLXS200611-200705

DK.GRAY,TRIM1#

main62111-02240-A0iZRE120200705-201210

IVORY,TRIM0#

main62111-YK010-A0iZRE120201307-201702

IVORY,TRIM0#

62112BOARD, COWL SIDE TRIM, LH

main62112-02060-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main62112-02060-B1iZZE122..GLXS200408-200610

DK.GRAY,TRIM1#

main62112-02061-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main62112-02061-B1iZZE122..GLXS200611-200705

DK.GRAY,TRIM1#

main62112-02240-A0iZRE120200705-201210

IVORY,TRIM0#

main62112-YK010-A0iZRE120201307-201702

IVORY,TRIM0#

62211GARNISH, FRONT PILLAR, RH

main62211-02050-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62211-02051

main62211-02050-B0iZZE122..GLXS200408-200611

LT.GRAY,TRIM1#

sub62211-02051

main62211-02052-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62211-02052-B0iZZE122..GLXS200611-200705

TRIM1#

main62211-02270-A0iZRE120200705-201210

IVORY,TRIM0#

main62211-YK010-A0iZRE120201307-201702

IVORY,TRIM0#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10188×2iZZE122200402-200705

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10192×2iZZE122200402-200705

62212GARNISH, FRONT PILLAR, LH

main62212-02050-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62212-02051

main62212-02050-B0iZZE122..GLXS200408-200611

LT.GRAY,TRIM1#

sub62212-02051

main62212-02052-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62212-02052-B0iZZE122..GLXS200611-200705

TRIM1#

main62212-02270-A0iZRE120200705-201210

IVORY,TRIM0#

main62212-YK010-A0iZRE120201307-201702

IVORY,TRIM0#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02020-A0iZZE122200402-200407

IVORY,TRIM0#

main62311-02100-A0iZRE120200705-201005

IVORY,TRIM0#

main62311-02100-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main62311-02101-A0iZRE120201006-201210

IVORY,TRIM0#

main62311-YK020iZRE120201506

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02020-A0iZZE122200402-200407

IVORY,TRIM0#

main62312-02100-A0iZZE122..GLI,GLXI200407-200705

IVORY,TRIM0#

main62312-02100-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main62312-02101-A0iZRE120201006-201210

IVORY,TRIM0#

main62312-YK020iZRE120201506

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02020-A0iZZE122200402-200407

IVORY,TRIM0#

main62331-02150-A0iZZE122..GLI,GLXI200407-200705

IVORY,TRIM0#

main62331-02150-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main62331-02151-A0iZRE120201006-201210

IVORY,TRIM0#

main62331-YK020iZRE120201506

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02020-A0iZZE122200402-200407

IVORY,TRIM0#

main62332-02150-A0iZRE120200705-201005

IVORY,TRIM0#

main62332-02150-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main62332-02151-A0iZRE120201006-201210

IVORY,TRIM0#

main62332-YK020iZRE120201506

62411GARNISH, CENTER PILLAR, RH

main62411-02040-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62411-02041

main62411-02040-B0iZZE122..GLXS200408-200611

LT.GRAY,TRIM1#

sub62411-02041

main62411-02042-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62411-02042-B0iZZE122..GLXS200611-200705

TRIM1#

main62411-02280-A0iZRE120201210-201306

IVORY,TRIM0#

main62411-YK010-A0iZRE120201307-201702

IVORY,TRIM0#

62412GARNISH, CENTER PILLAR, LH

main62412-02040-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62412-02041

main62412-02040-B0iZZE122..GLXS200408-200611

LT.GRAY,TRIM1#

sub62412-02041

main62412-02042-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62412-02042-B0iZZE122..GLXS200611-200705

TRIM1#

main62412-02270-A0iZRE120200705-201210

IVORY,TRIM0#

main62412-YK010-A0iZRE120201307-201702

IVORY,TRIM0#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02041-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62413-02042

main62413-02041-B1iZZE122..GLXS200408-200611

DK.GRAY,TRIM1#

sub62413-02042

main62413-02043-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62413-02043-B1iZZE122..GLXS200611-200705

TRIM1#

main62413-02230-A0iZRE120200705-201210

IVORY,TRIM0#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09215×4iZZE122200402-200705

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02041-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62414-02042

main62414-02041-B1iZZE122..GLXS200408-200611

DK.GRAY,TRIM1#

sub62414-02042

main62414-02043-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62414-02043-B1iZZE122..GLXS200611-200705

TRIM1#

main62414-02230-A0iZRE120200705-201210

IVORY,TRIM0#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-02070-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62471-02071

main62471-02070-B0iZZE122..GLXS200408-200611

LT.GRAY,TRIM1#

sub62471-02071

main62471-02072-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62471-02072-B0iZZE122..GLXS200611-200705

TRIM1#

main62471-02420-A0iZRE120200705-201210

IVORY,TRIM0#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-02070-A0iZZE122..GLI,GLXI200402-200611

IVORY,TRIM0#

sub62472-02071

main62472-02070-B0iZZE122..GLXS200408-200611

LT.GRAY,TRIM1#

sub62472-02071

main62472-02072-A0iZZE122..GLI,GLXI200611-200705

TRIM0#

main62472-02072-B0iZZE122..GLXS200611-200705

TRIM1#

main62472-02420-A0iZRE120200705-201210

IVORY,TRIM0#

62475PAD, ROOF SIDE INNER GARNISH

main62475-02140×2iZZE122200402-200705

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02051-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main67913-02051-B1iZZE122..GLXS200408-200610

DK.GRAY,TRIM1#

main67913-02052-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main67913-02052-B1iZZE122..GLXS200611-200705

DK.GRAY,TRIM1#

main67913-02250-A0iZRE120200705-201210

IVORY,TRIM0#

main67913-YK010-A0iZRE120201307-201512

IVORY,TRIM0#

main67913-YK020-A0iZRE120201601-201702

IVORY,TRIM0#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02051-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main67914-02051-B1iZZE122..GLXS200408-200610

DK.GRAY,TRIM1#

main67914-02052-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main67914-02052-B1iZZE122..GLXS200611-200705

DK.GRAY,TRIM1#

main67914-02250-A0iZRE120200705-201210

IVORY,TRIM0#

main67914-YK010-A0iZRE120201307-201512

IVORY,TRIM0#

main67914-YK020-A0iZRE120201601-201702

IVORY,TRIM0#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02041-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main67917-02041-B1iZZE122..GLXS200408-200610

DK.GRAY,TRIM1#

main67917-02042-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main67917-02042-B1iZZE122..GLXS200611-200705

DK.GRAY,TRIM1#

main67917-02270-A0iZRE120200705-201210

IVORY,TRIM0#

main67917-YK010-A0iZRE120201307-201512

IVORY,TRIM0#

main67917-YK020-A0iZRE120201601-201702

IVORY,TRIM0#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02041-A0iZZE122..GLI,GLXI200402-200610

IVORY,TRIM0#

main67918-02041-B1iZZE122..GLXS200408-200610

DK.GRAY,TRIM1#

main67918-02042-A0iZZE122..GLI,GLXI200611-200705

IVORY,TRIM0#

main67918-02042-B1iZZE122..GLXS200611-200705

DK.GRAY,TRIM1#

main67918-02270-A0iZRE120200705-201210

IVORY,TRIM0#

main67918-YK010-A0iZRE120201307-201512

IVORY,TRIM0#

main67918-YK020-A0iZRE120201601-201702

IVORY,TRIM0#

9046709215

main90467-09215

9046805112

main90468-05112

25 parts on this diagram · 1 diagram in section
