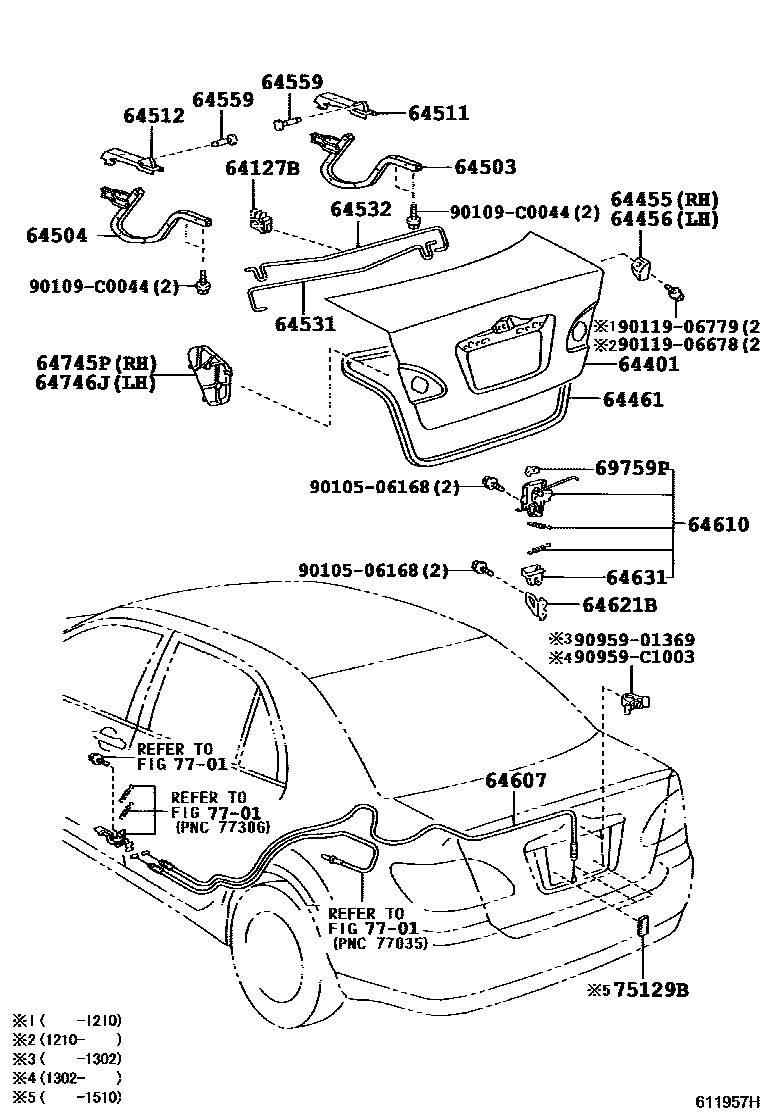

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64631PROTECTOR, LUGGAGE DOOR LOCK
64745PCOVER, REAR COMBINATION LAMP SERVICE, RH
64746JCOVER, REAR COMBINATION LAMP SERVICE, LH
69759PSNAP, DOOR LOCK CONTROL LINK
75129BCUSHION, REAR LICENCE PLATE
7701
9010506168
main90105-06168
90109C0044
main90109-C0044
9011906678
main90119-06678
9011906779
main90119-06779
9095901369
main90959-01369
90959C1003
main90959-C1003
27 parts on this diagram · 1 diagram in section
