FLOOR SIDE MEMBER

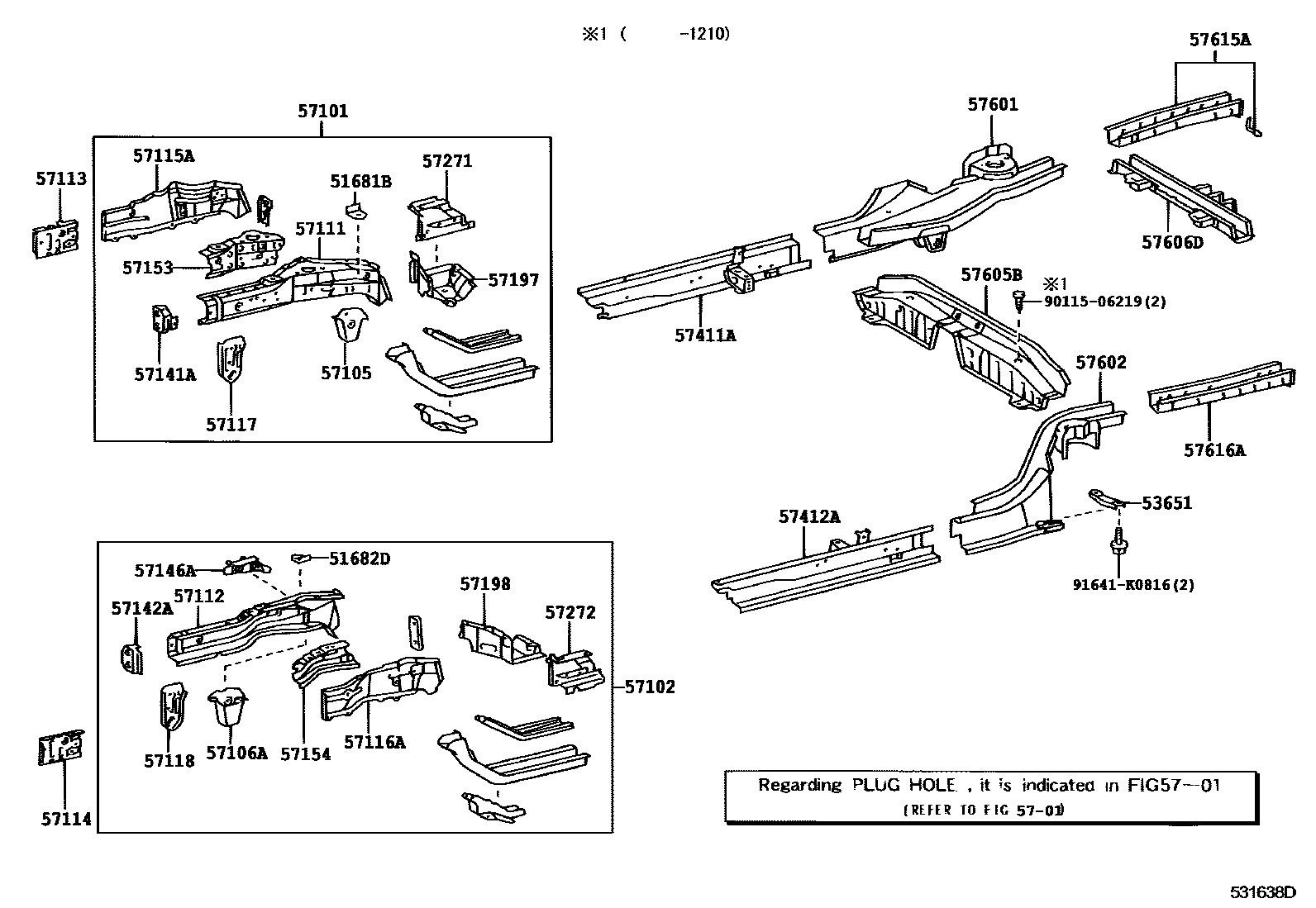

Parts diagram
51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
main51681-02070i201210
(L)
main51681-32050i201204-201210
JAPAN SOURCED PARTS
51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
main51682-02070i201210
(L)
main51682-32040i200705-201204
53651BRACE, REAR FLOOR SIDE MEMBER
main53651-32010×2i200402-200705
5701
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-02250i200402-200705
main57101-02330i201210-201404
main57101-YK010i201405
57102MEMBER SUB-ASSY, FRONT SIDE, LH
main57102-02340i200402-200705
main57102-02490i200705-201210
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
main57105-12140i200705-201210
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
main57106-12130i200402-200705
57111MEMBER, FRONT SIDE, RH
main57111-02140i200705-201210
main57111-12210i200402-200705
57112MEMBER, FRONT SIDE, LH
main57112-02140i200705-201210
main57112-12170i200402-200705
57113EXTENSION, FRONT SIDE MEMBER, RH
main57113-02140i201209-201210
main57113-12190i200705-201208
main57113-YK010i201210
57114EXTENSION, FRONT SIDE MEMBER, LH
main57114-02160i201209-201210
main57114-12160i200705-201208
main57114-YK010i201210
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57115-02070i200603-200705
main57115-12080i200402-200603
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-02070i201210
main57116-12080i200402-200603
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
main57117-02070i201204-201210
LOCAL SOURCED PARTS
main57117-12130i201204-201210
JAPAN SOURCED PARTS
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
main57118-02040i201204-201210
LOCAL SOURCED PARTS
main57118-12130i200705-201204
57141ASUPPORT, FRONT BUMPER ARM, RH
main57141-12060i200402-200705
57142ASUPPORT, FRONT BUMPER ARM, LH
main57142-12070i201210
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
main57146-02100i201204-201210
LOCAL SOURCED PARTS
main57146-12020i200402-200705
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
main57016-12080i200402-200705
main57016-YK010i201405
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
main57017-12060i200402-200705
57197BOX, TORQUE, FRONT RH
main57197-02070i201210
main57197-12030i200402-200603
57198BOX, TORQUE, FRONT LH
main57198-02070i200603-200705
main57198-12030i200402-200603
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
main57271-02050i201210
main57271-12090i200402-200603
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
main57272-02050i200603-200705
main57272-12090i200402-200603
57411AMEMBER, FLOOR SIDE, INNER RH
main57401-02130i200603-200705
main57401-12570i200402-200602
sub57401-12630
57412AMEMBER, FLOOR SIDE, INNER LH
main57402-02130i200705-201210
main57402-12570i200402-200602
sub57402-12590
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
main57601-02150i200402-200603
main57601-02160i200601-200603
W(FIXED TYPE REAR SEAT)
main57601-02220i200603-200705
main57601-02230i200603-200705
W(FIXED TYPE REAR SEAT)
main57601-YK010i201210
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
main57602-02150i200402-200603
main57602-02160i200601-200603
W(FIXED TYPE REAR SEAT)
main57602-02220i200603-200705
main57602-02230i200603-200705
W(FIXED TYPE REAR SEAT)
main57602-YK010i201210
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
main57605-02070i200705-201210
main57605-12180i200402-200603
57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING
main57606-02070i200411-200603
main57606-02120i200603-200705
main57606-12190i200402-200410
sub57606-02230
57615AMEMBER, REAR FLOOR SIDE, REAR RH
main57615-02905i200402-200603
main57615-02917i200603-200705
57616AMEMBER, REAR FLOOR SIDE, REAR LH
main57616-02904i200402-200603
main57616-02915i200603-200705
9011506219
main90115-06219
91641K0816
main91641-K0816

35 parts on this diagram · 1 diagram in section
