Toyota 153350 — REAR BUMPER & BUMPER STAY

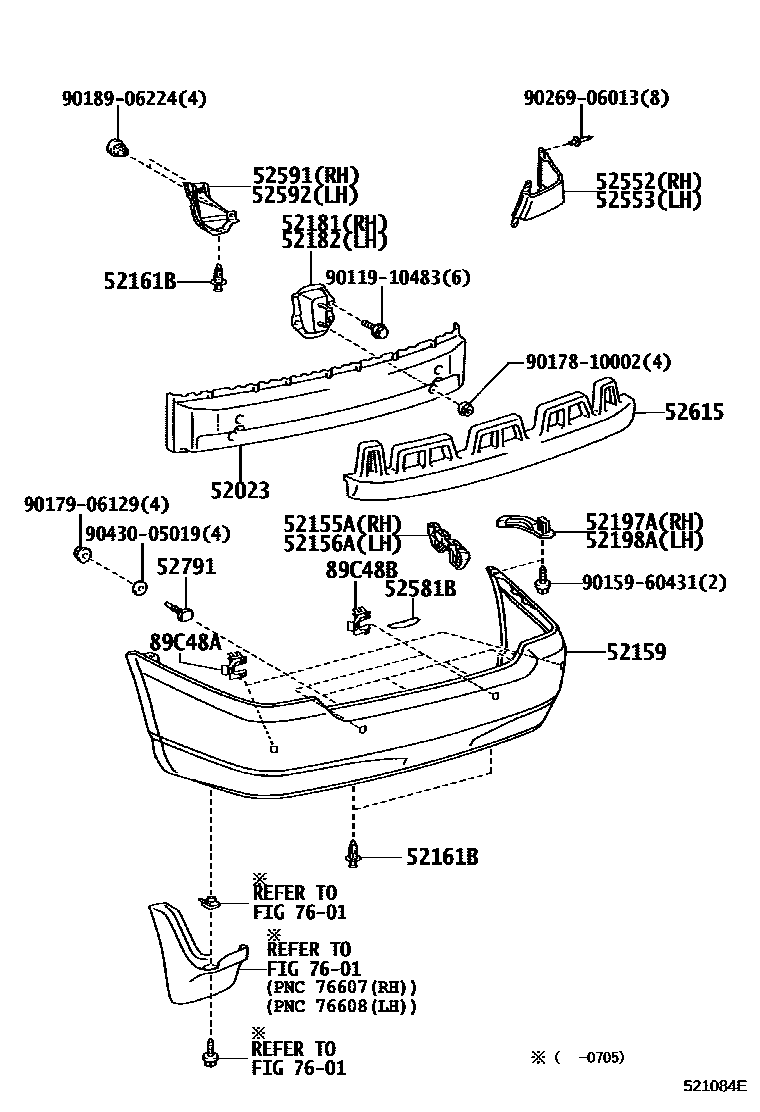

Parts diagram
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52171-YK010
52023-02050
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52159-02921
52159-02922
52159-02927
52161BPIECE, REAR BUMPER
52181ARM, REAR BUMPER, RH
52181-YK010
52181-02040
52182ARM, REAR BUMPER, LH
52182-YK010
52182-02030
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52552FILLER, REAR BUMPER, RH
52552-YK010
52552-02030
52553FILLER, REAR BUMPER, LH
52553-YK010
52553-02030
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52591-02130
52592SEAL, REAR BUMPER SIDE, LH
52592-02120
52615ABSORBER, REAR BUMPER ENERGY
52615-02050
52615-02100
52791BOLT, BUMPER MOULDING SET, NO.1
52791-12040
7601MUDGUARD & SPOILER
→ Go to FIG 76-01
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011910483
90119-10483
9015960431
90159-60431
9017810002
90178-10002
9017906129
90179-06129
9018906224
90189-06224
9026906013
90269-06013
9043005019
90430-05019

26 parts on this diagram · 2 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota 153350

This section contains 26 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota 153350. Key components include: REINFORCEMENT SUB-ASSY, REAR BUMPER, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER, PIECE, REAR BUMPER.
