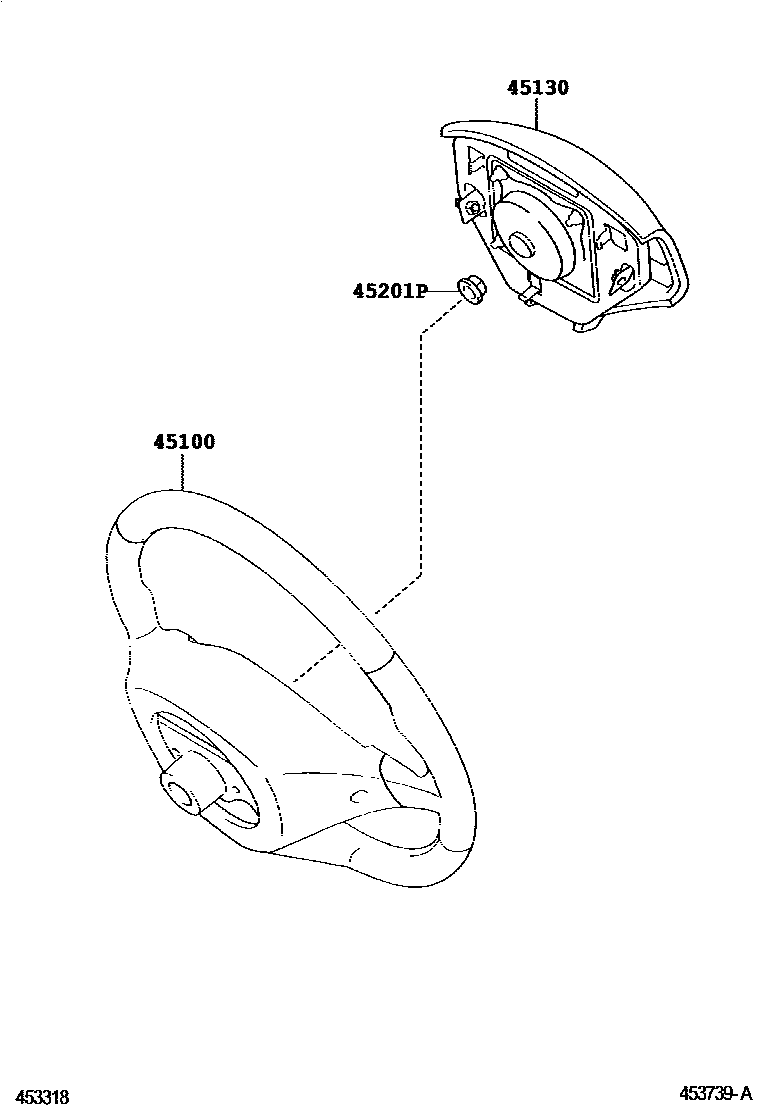

STEERING WHEEL

0001 13-SPOKE 0002 14-SPOKE 0003 13-SPOKE 0004 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-02160-E0iZZE122..GLI200402-200407

4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-02190-E0iZZE122..GLI200407-200705

4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-02430-E0iZZE122..GLXI200402-200705

4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-02D60-E0iZZE122..5F..GLI200601-200705

4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-02J50-B1iZRE120201210-201702

3-SPOKE,URETHANE,DK.GRAY,TRIM0#

main45100-02J50-E0iZRE120200705-201210

3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-13050-B0iZZE122..GLXS200408-200705

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-02250-E0iZZE122..GLI,GLXI200402-200705

SANDAL WOOD,TRIM0#

main45130-02460-E0iZRE120200705-201210

SANDAL WOOD,TRIM0#

main45130-02550-B1iZRE120201210-201702

DK.GRAY,TRIM0#

main45130-13050-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90178-C0025iZRE120200705-201210

main90179-12071iZZE122200402-200705

3 parts on this diagram · 4 diagrams in section
